Note: Nazgul DC5 and Nazgul DC5 ECO use the same Frame kit.

Description

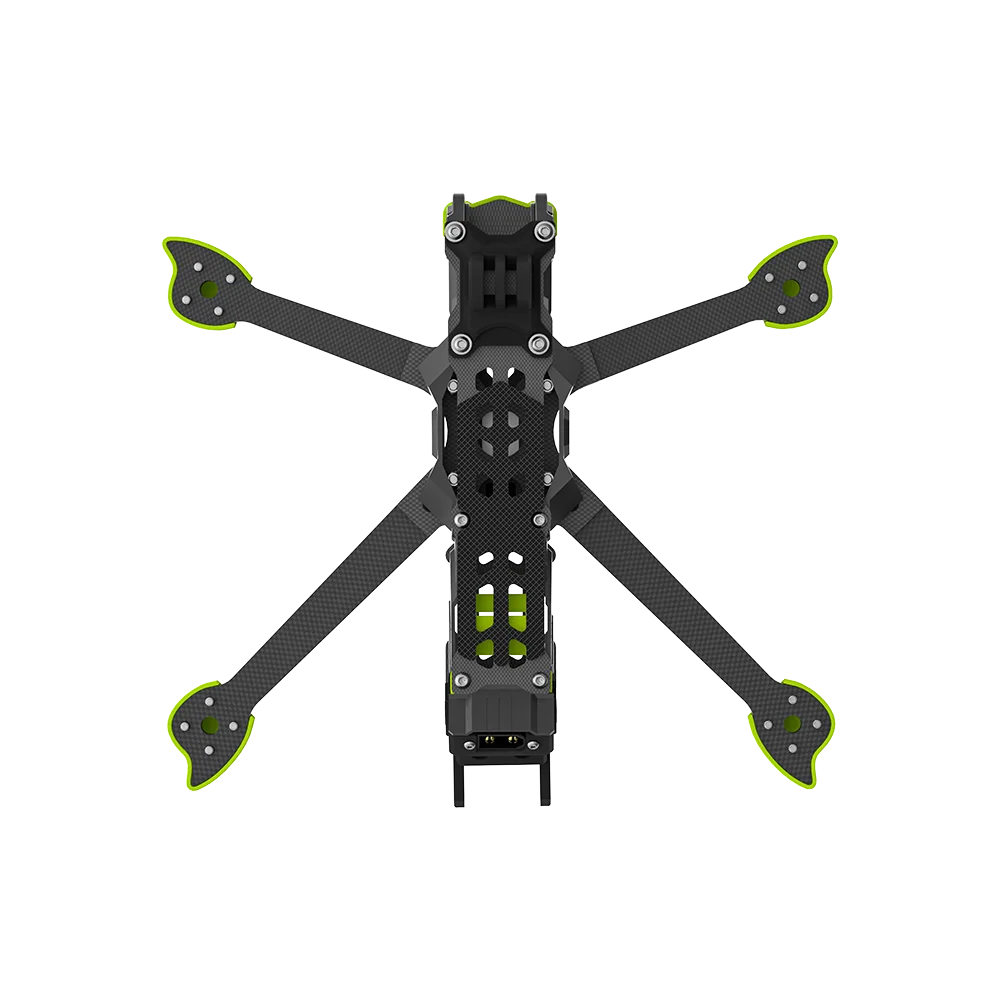

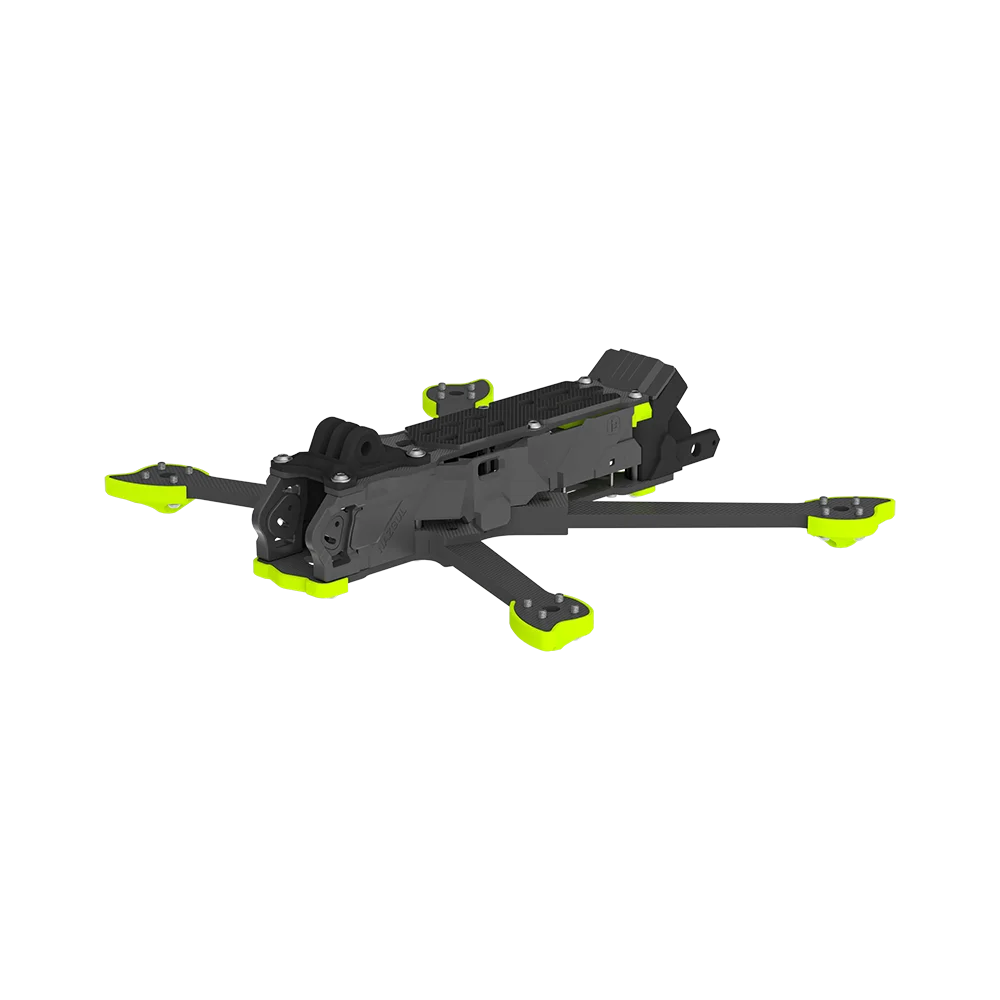

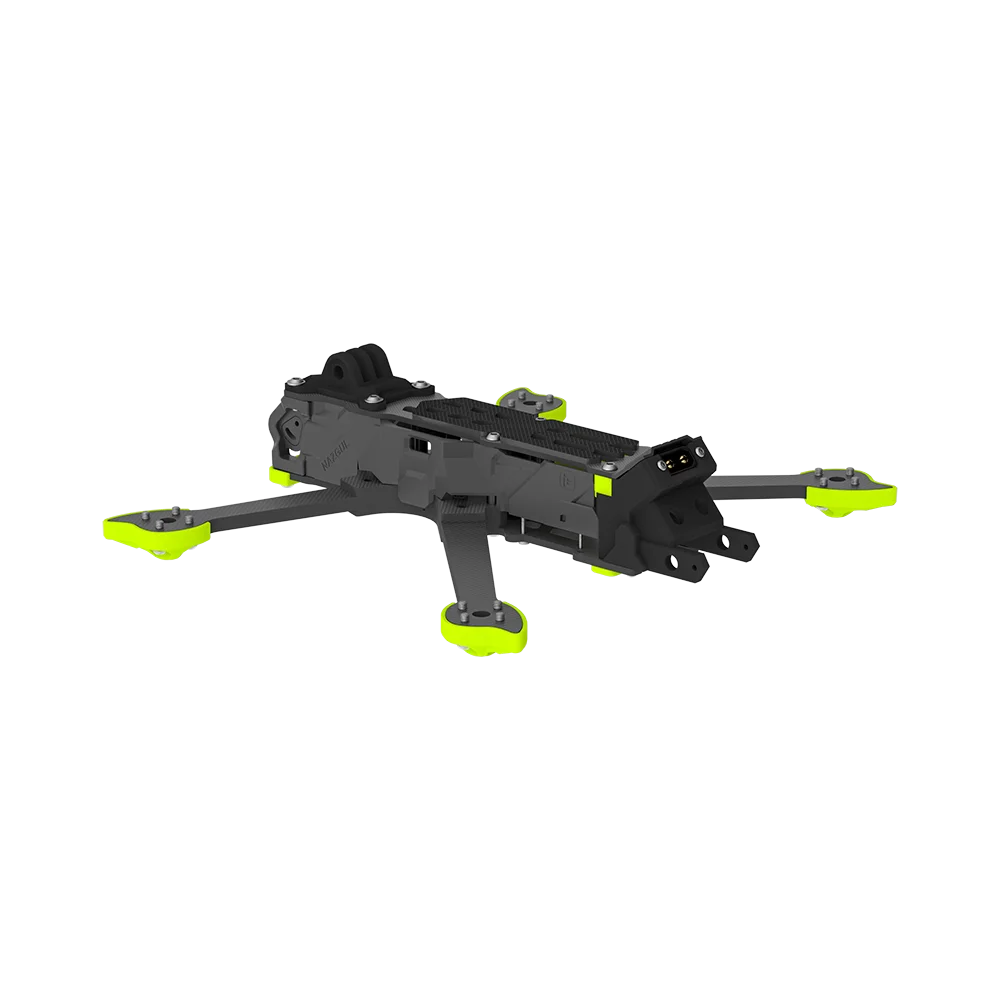

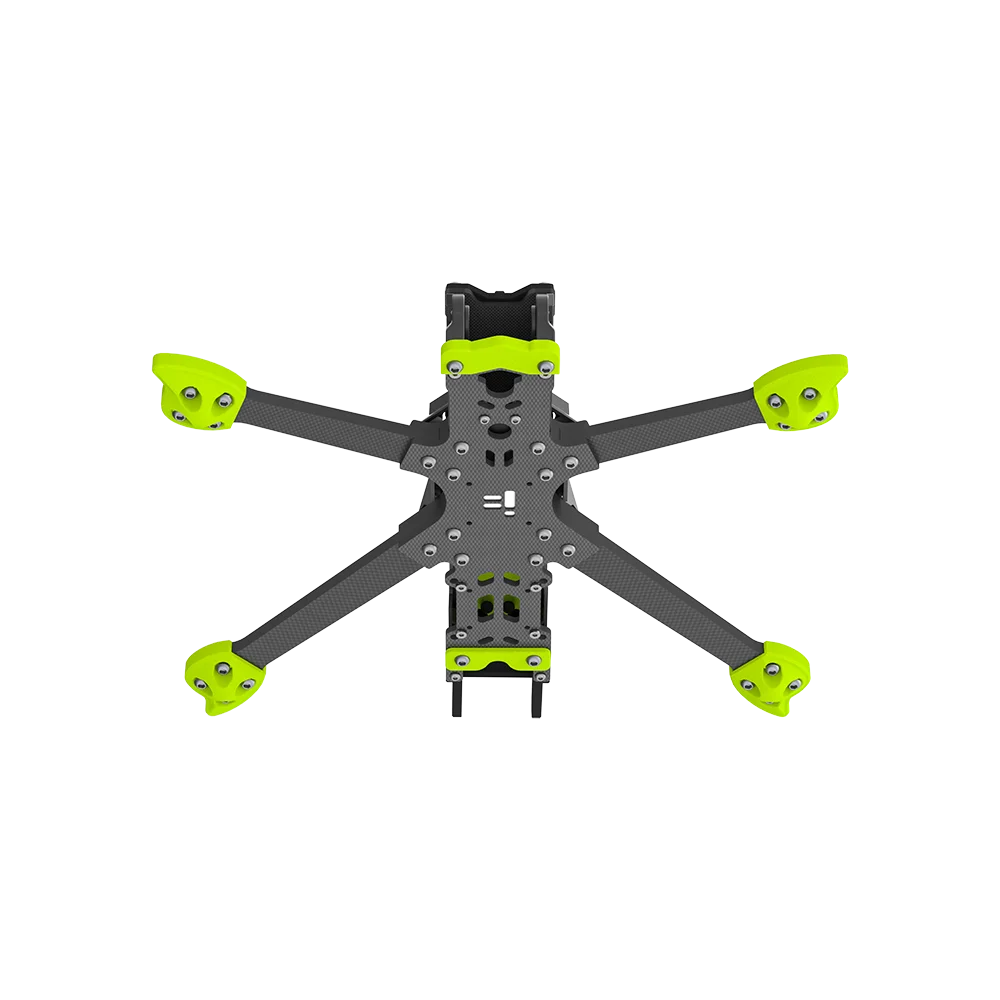

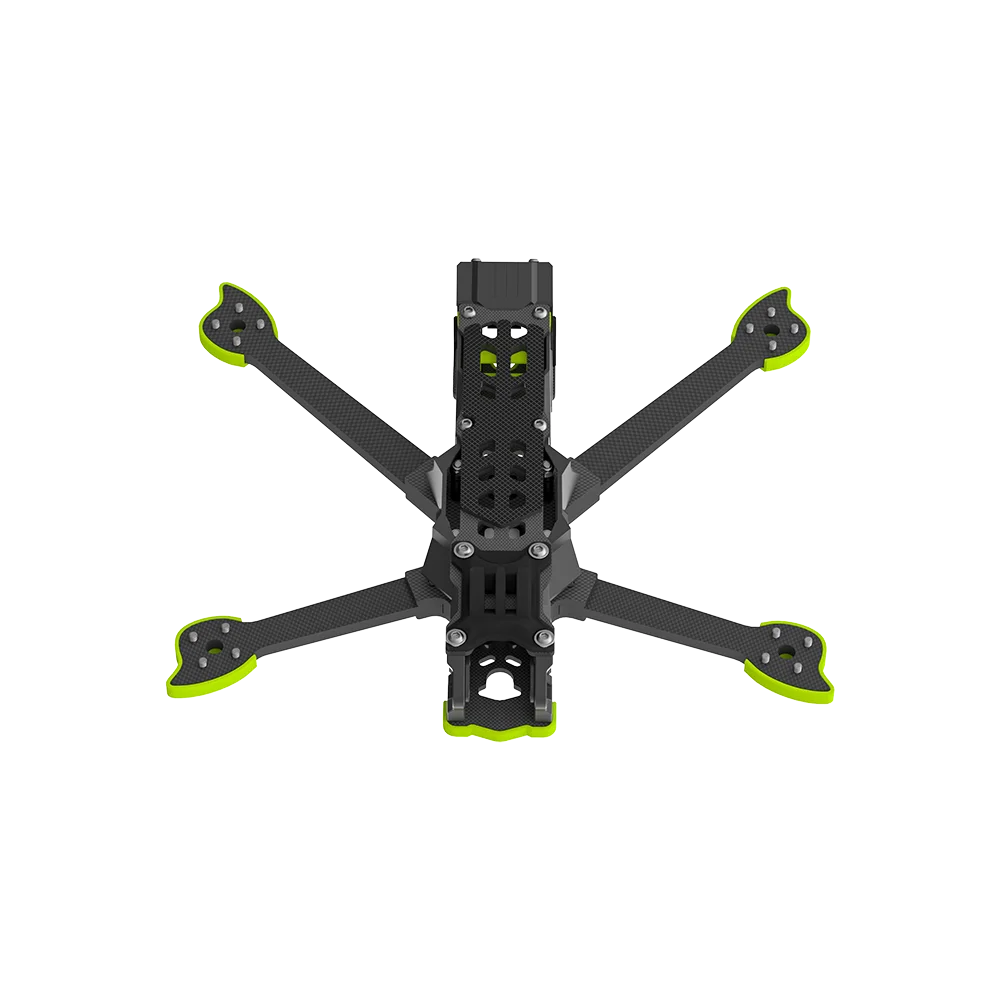

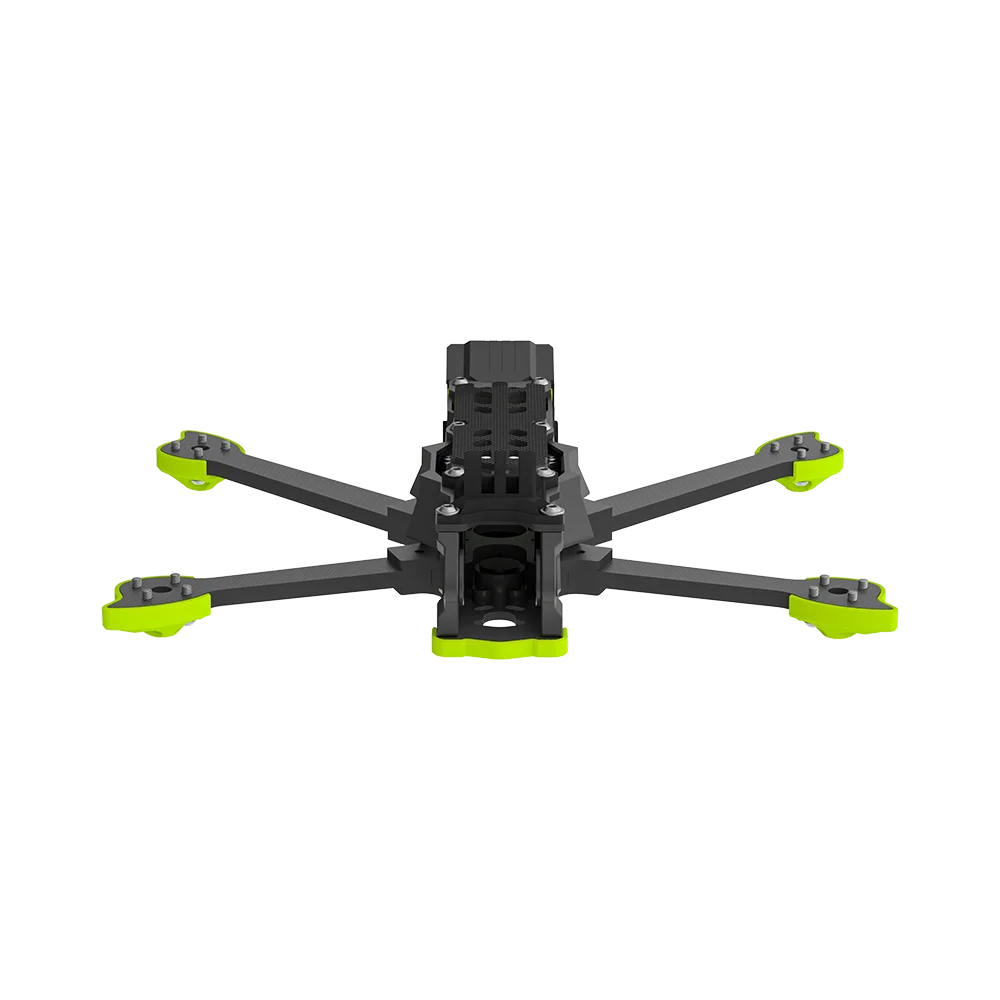

• The iFlight Nazgul DC5 frame is a 5" freestyle frame. Made from a super-stiff carbon for minimum resonance and recommended 2207 motors for maximum 5" prop control. No Props or frame in view!

Changelog

• July 15, 2024: Battery Plug mount updated to a fixed form. The frame kit was upgraded to V1.1.

• Sept. 10, 2024: Product upgrade, the side panels will be installed by default.

• Sept. 18, 2024: Top Plate upgrade, same as the top plate of Nazgul5 V3 and Nazgul XL5.

Features

• Product Name: Nazgul DC5 V1.1 Frame Kit

• Geometry: DC (DeadCat)

• Wheelbase: 240mm

• Frame Dimension: 193*144*34mm

• Arm Thickness: 5mm

• Bottom Plate Thickness: 2.5mm

• Upper Plate Thickness: 3mm

• Internal space height: 29mm

• Max Flight Stack Height: 22mm

• Max VTX Height: 29mm

• FC Mounting: 20*20/Φ3mm 30*30/Φ3mm

• Motor Mounting: 16*16/Φ3mm

• VTX Mounting：30*30 φ3mm / 25.5*25.5 φ1.6mm / 20*20 φ3mm

• Weight: 238grams

Packing List

• 1 x Nazgul DC5 V1.1 Frame Kit

• 1 x TPU set (Inclu. GoPro TPU Base Mount)

• 1 x Screw Bag

• 2 x Anti-slip Battery Pad

• 4 x Motor Wire Shield Tube

• 2 x Battery Strap(20*250mm)
