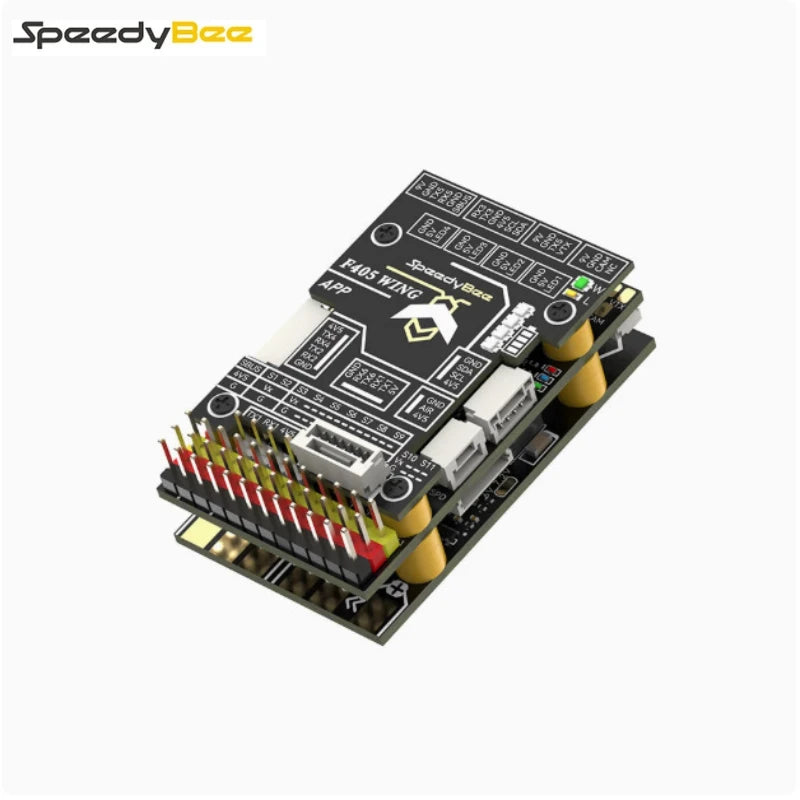

FC SpeedyBee F405 WING APP

Basic info:

• Dimension: 52mm x 32mm x 19mm
• Weight: 35g（with USB extender）
• Power Input: 2-6S LiPo

SpeedyBee F405 WING FC specs:

• MCU: STM32F405,168MHz,1MB Flash
• IMU: ICM-42688-P
• Barometer: SPL006-001
• OSD Chip: AT7456E
• Blackbox: MicroSD Card Slot
• 6x UART’s
• 1x I2C for magnetometer, digital airspeed sensor
• 4x ADC for VBAT, Current, RSSI, Analog AirSpeed Sensor
• 12x PWM
• Built in inverter for SBUS input (UART2-RX pad)
• 3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator (Red) 1x RGB
• RSSI Supported (RS pad)
• INAV FC target: SpeedyBeeF405WING
• ArduPilot FC target: SpeedyBeeF405WING

SpeedyBee F405 WING PDB board:

• Battery Current Sensor 90A continuous, 215A peak Connect to FC board Current (Scale 195 in iNav, 50 A/V in ArduPilot)
• TVS Protective diode Yes
• FC BEC output Output 5.2V +/- 0.1V DC Continuous current 2.4 Amps, 3A Peak Designed for FC, Receiver, GPS module, AirSpeed module, Telemetry module, WS2812 LED_Strip
• VTX BEC output Output 9V +/- 0.1V DC Continuous current 1.8 Amps, 2.3A Peak Voltage adjustable, 9V Default, 12V or 5V via jumper Designed for Analog Video Transmitter,Digital Video Transmitter, Camera.
• Servo BEC output Output 4.9V +/- 0.1V DC Continuous current 4.5 Amps, 5.5A Peak Voltage adjustable, 4.9V Default, 6V or 7.2V via jumper Designed for Servos.

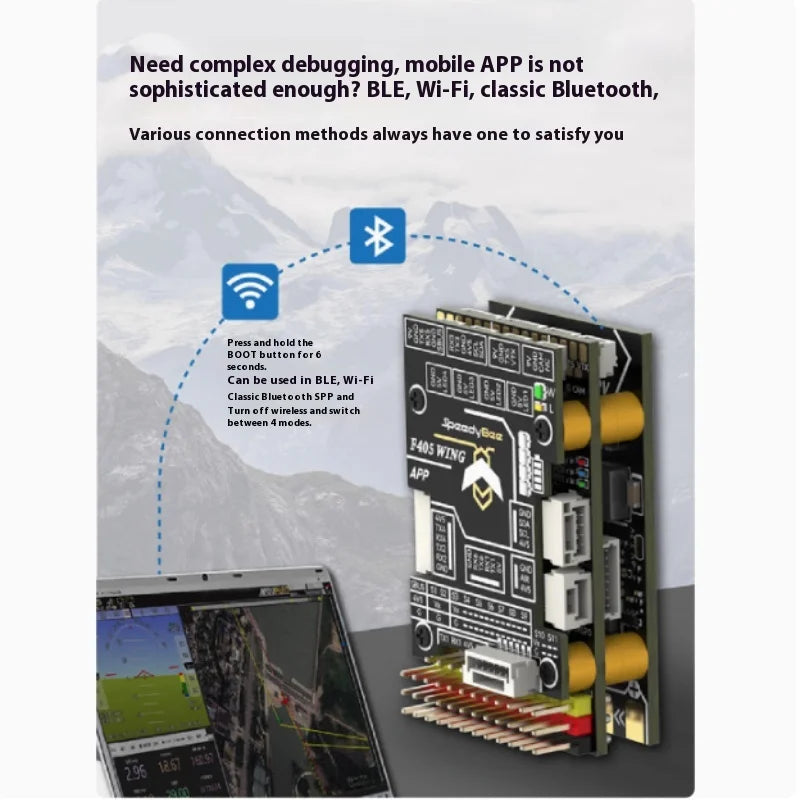

• Wireless Configuration (long press BOOT button for 6 seconds to switch modes) BLE mode, connect to Speedybee APP
  Wi-Fi mode, connect to QGroundControl APP, Speedybee APP, MissionPlanner, etc.
• Classic Bluetooth SPP mode, connect to QGroundControl APP, MissionPlanner
• LED strip controller (short press BOOT button to switch effects, long press 2 seconds to switch modes) 4x WS2812 LED strip connectors, adjustable colors and flashing modes
• Max 5.2V 1.3A, supports around 70pcs 5050 WS2812 LED beads
• On-board battery level indicator 4x RGB indicator LED for battery level display by number of lights
