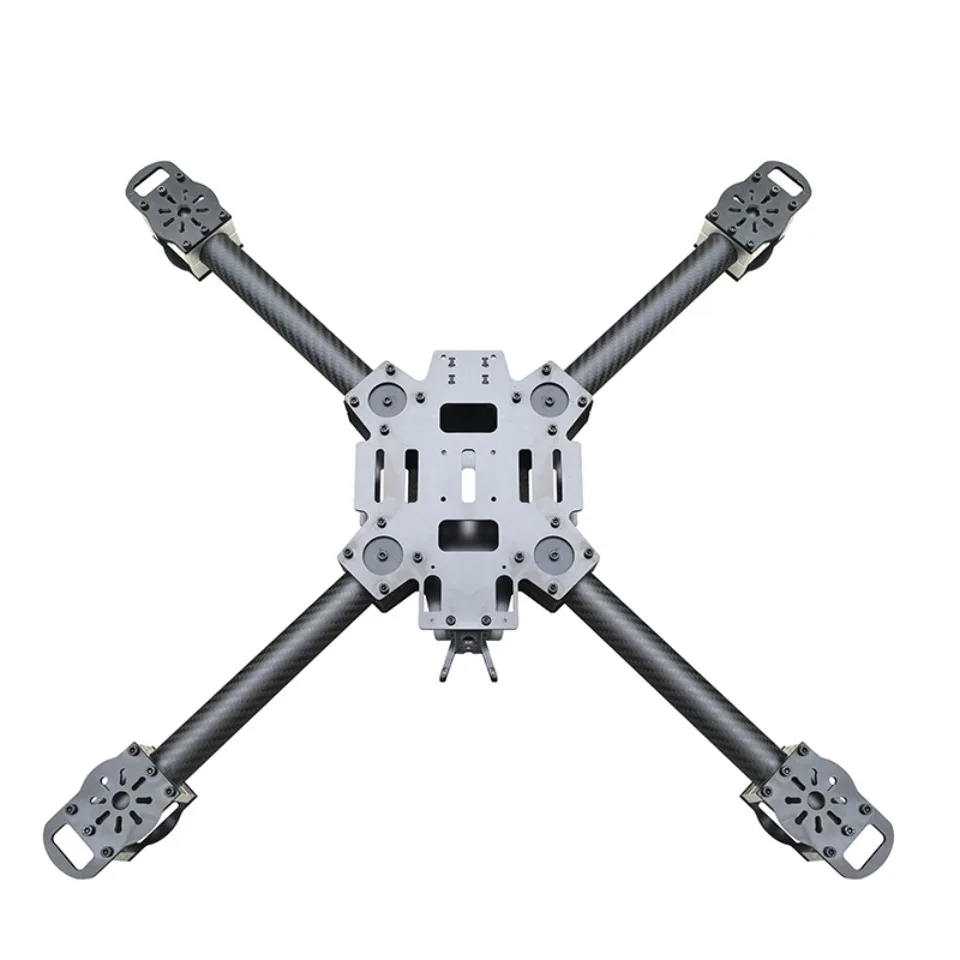

Carbon Fiber Drone Frame HTX 4 axis 11 13 14 15 Inch For X4 setup

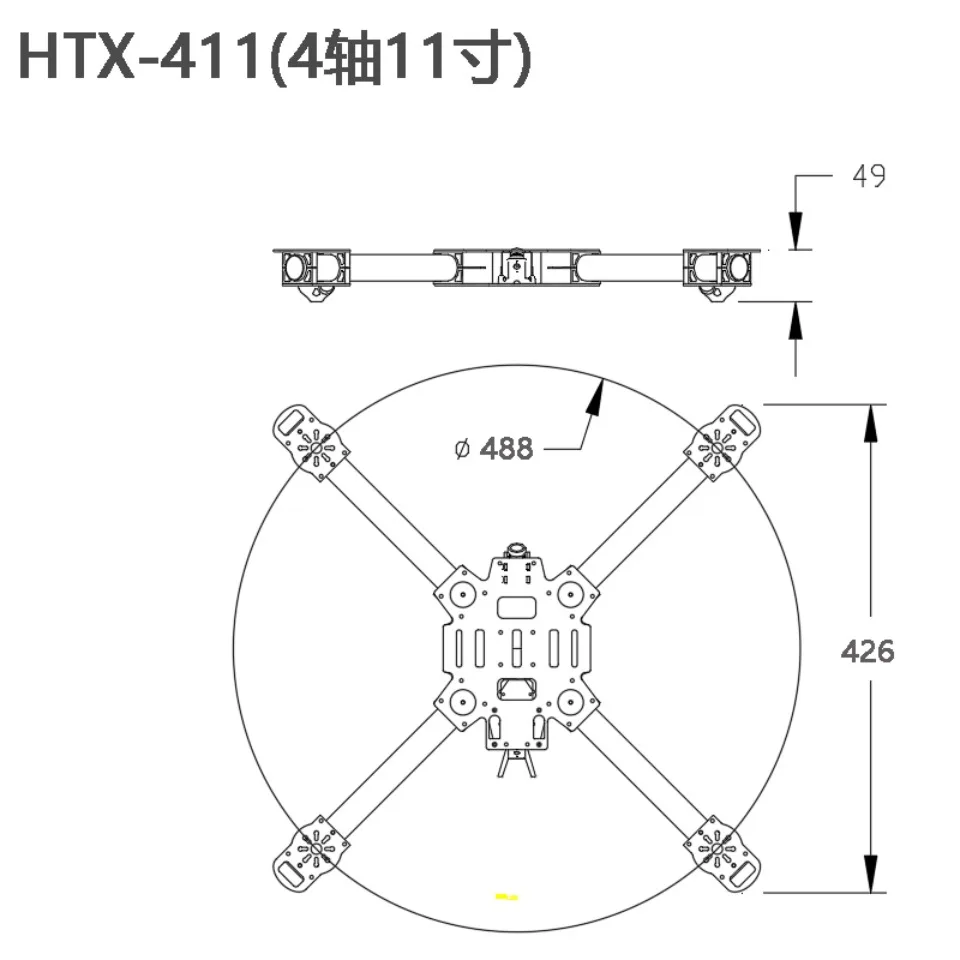

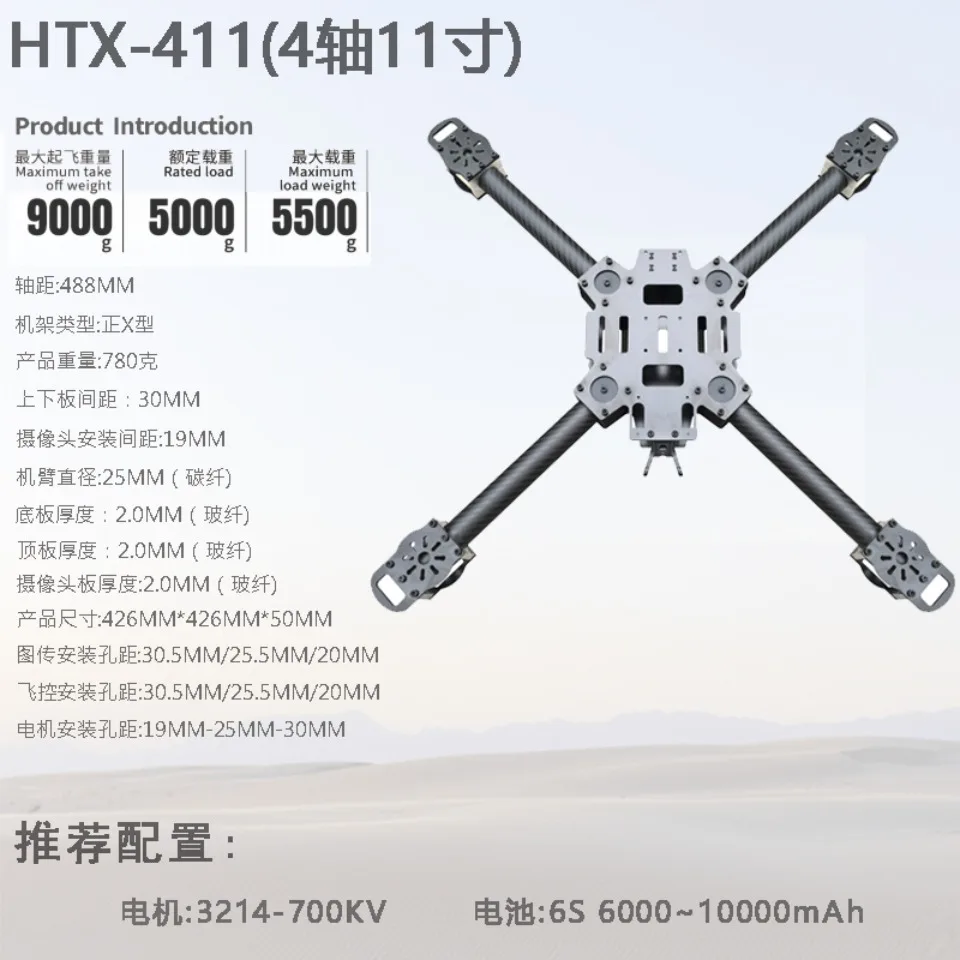

HTX-411 (4-axis 11 inch)
Wheelbase: 488mm
Rack type: positive X-type
And product weight: 780 grams
Board spacing: 30MM
Camera hair installation spacing: 19M
Machine back diameter: 25MMI carbon fiber
Bottom plate thickness: 2.0mm fiberglass
Top plate thickness: 2.0mm fiberglass)
Camera board thickness: 2.0mm (fiberglass)
When measuring noodles: 426mm 426mm 50MM
Image transmission installation 3 distances E305MM/255MM/20mm
Control installation distance 305MMP255M/20MM

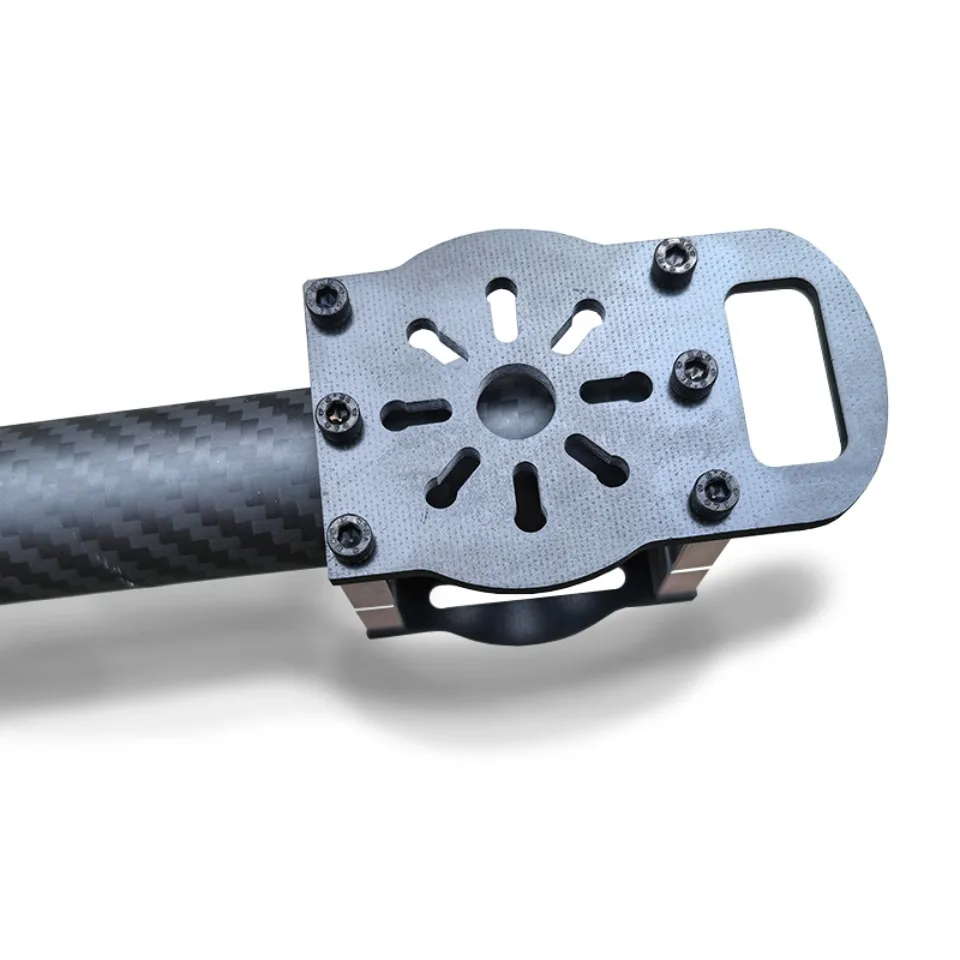

Motor installation hole EE19MM-25MM30MM
Recommended configuration
Motor: 3214-700KV

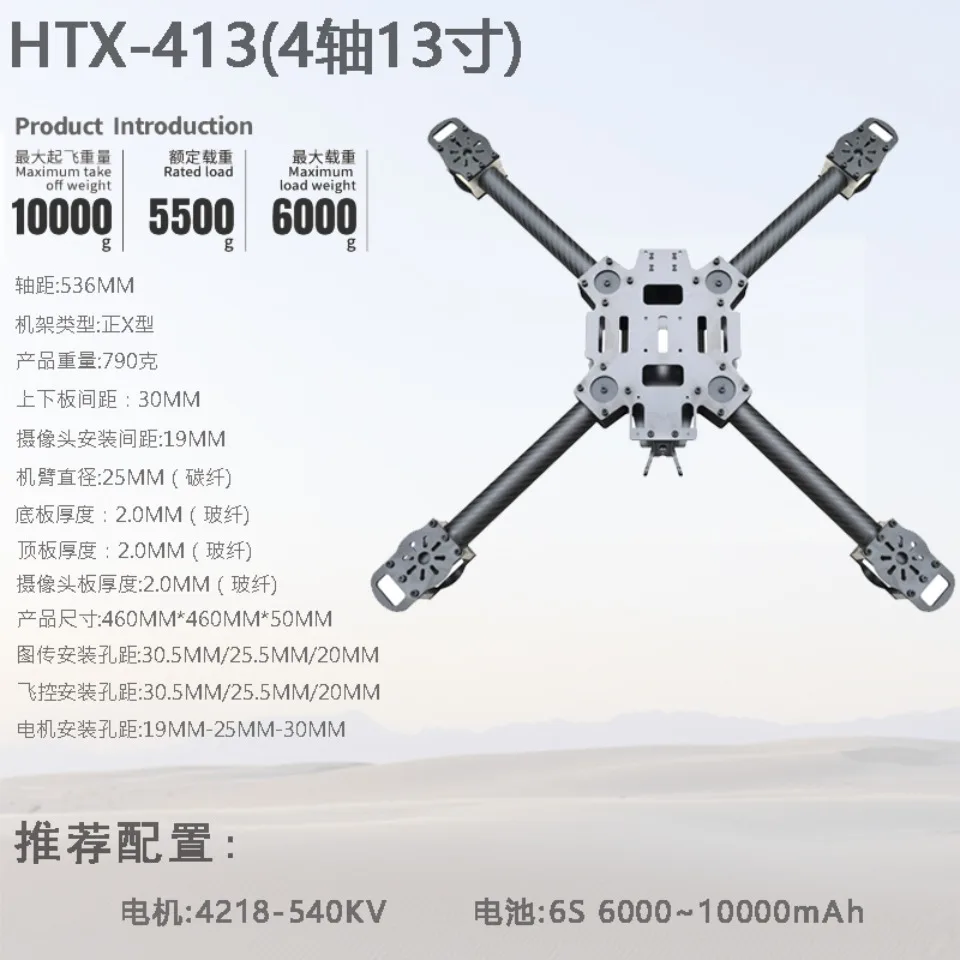

HTX-413 (4-axis 13 inch)
Wheelbase: 536mm
Rack type: positive X-type
Product weight: 790 grams
Distance between upper and lower plates: 30MM
Camera installation spacing: 19MMM
Arm diameter: 25MM (carbon fiber)
Bottom plate thickness: 2.0mm (fiberglass)
Top plate thickness: 2.0mm (fiberglass)
Camera board thickness: 2.0mm (fiberglass)
Product size: 460MM * 460MM * 50MM
Installation hole spacing for image transmission: 30.5MM/25.5MMM/20MM
Flight control installation hole spacing: 30.5MM/25.5MM/20MM
Motor installation hole spacing: 19MM-25MM-30MM
Recommended configuration
Motor: 4218-540KV
Battery: 65 6000~10000mAh
Wheelbase: 569mm

HTX-414 (4-axis 14 inch)
Rack type: positive X-type
Product weight: 800 grams
Distance between upper and lower plates: 30MM
Camera installation spacing: 19mm
Arm diameter: 25MM (carbon fiber)
Bottom plate thickness: 2.0mm (fiberglass)
Top plate thickness: 2.0mm (fiberglass)
Camera board thickness: 2.0mm (fiberglass)
Product size: 482MM * 482MM * 50MM
Installation hole spacing for image transmission: 30.5MM/25.5MMM/20MM
Flight control installation hole spacing: 30.5MM/25.5MM/20MMM
Motor installation hole spacing: 19MMM-25MM-30MM
Recommended configuration
Motor: 4270-430KV
Battery: 6S 6000~10000mAh

HTX-415 (4-axis 15 inch)
Wheelbase: 608MM
Rack type: positive X-type
Product weight: 810 grams
Distance between upper and lower plates: 30MM
Camera installation spacing: 19mm
Arm diameter: 25MM (carbon fiber)
Bottom plate thickness: 2.0mm (fiberglass)
Top plate thickness: 2.0mm (fiberglass)
Camera board thickness: 2.0mm (fiberglass)
Product size: 510MM * 510MM * 50MM
Installation hole spacing for image transmission: 30.5MM/25.5MM/20MM
Flight control installation hole spacing: 30.5MM/25.5MM/20MM
Motor installation hole spacing: 19MM-25MM-30MM
Recommended configuration
Motor: 4720-430KV
Battery: 6S 6000~10000mAh
Battery: 6S 6000~10000mAh
