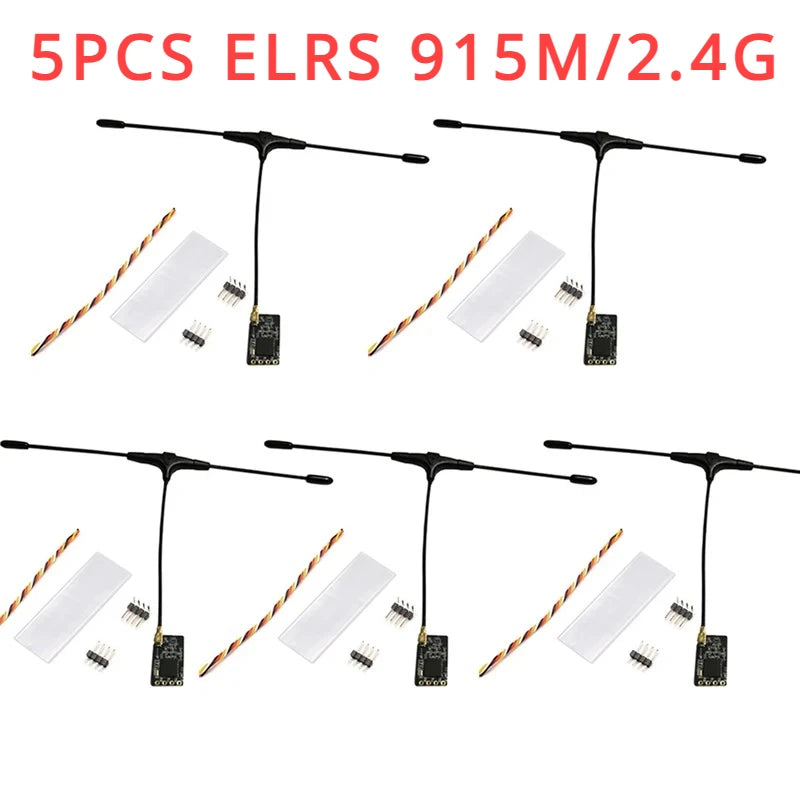

5PCS ELRS 915MHz / 2.4GHz NANO ExpressLRS Receiver With T type Antenna

ExpressLRS aims to provide the best completely open, high refresh radio control link while maintaining a maximum achievable range at that rate with low latency. Vast support of hardware in both 900 Mhz and 2.4 GHz frequencies.

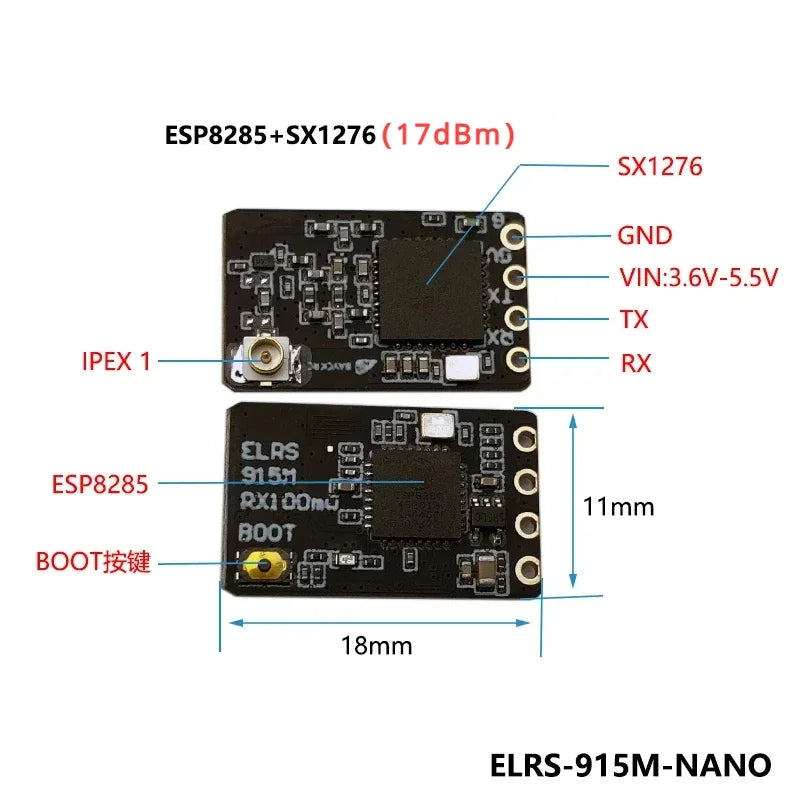

SPECIFICATION for 900 band

• Model:ELRS 915M NANO
• RF Freq:915Mhz
• IC:SX1276+ESP8285
• TX Power:17dBm
• Color:Black
• Connector:IPEX 1
• Input Power:3.6-5.5V
• Weight:0.6g(receiver only)
• Size:11mm*18mm
• Firmware: HappyModel ES900 RX V3.2.0

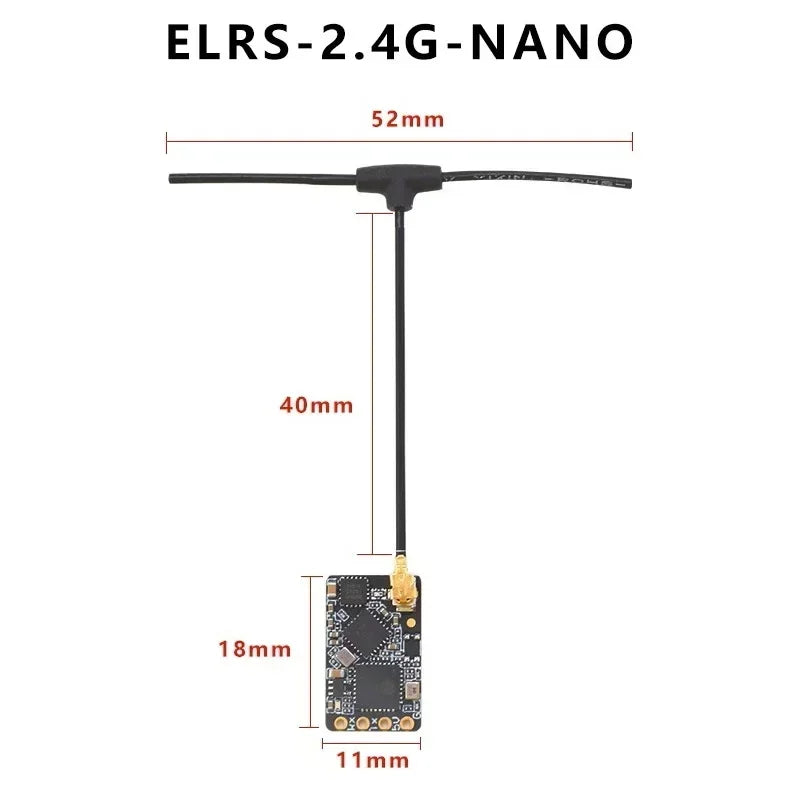

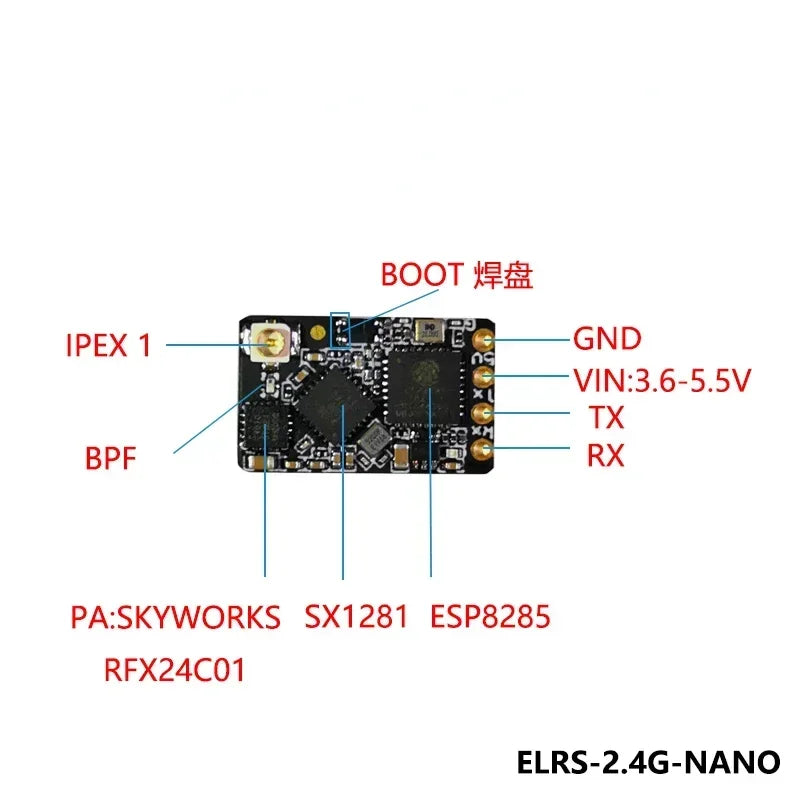

SPECIFICATIONS for 2.4 band

• Model:ELRS 2.4G NANO
• RF Freq:2.4Ghz
• IC:SX1281+ESP8285
• TX Power:100mW
• Color:Black
• Connector:IPEX 1
• Input Power:3.6-5.5V
• Weight:0.4g(receiver only)
• Size:11mm*18mm
• Firmware: BETAFPV Nano 2400 RX 2.2.0

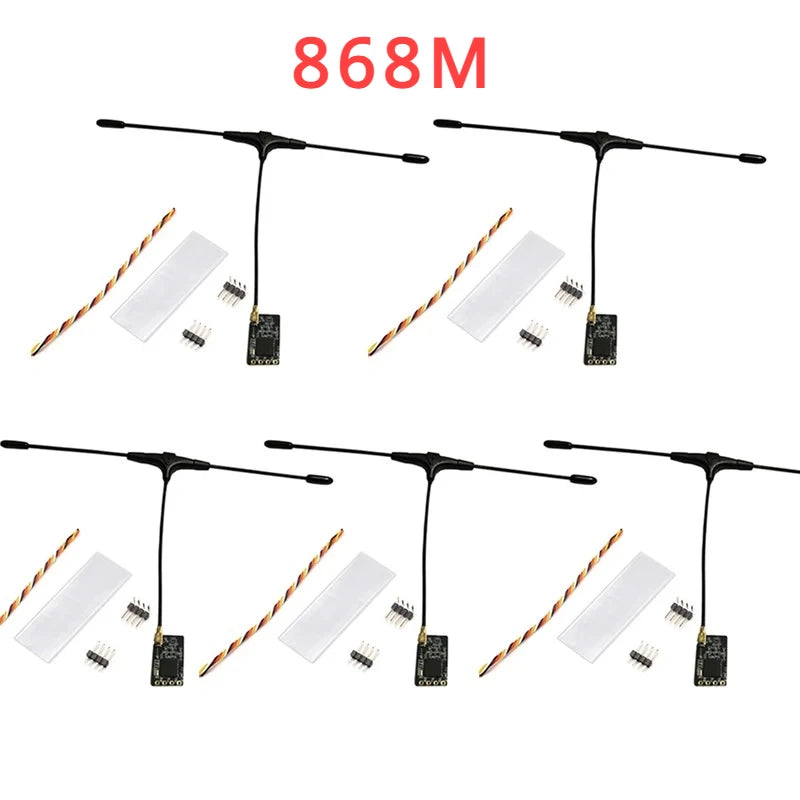

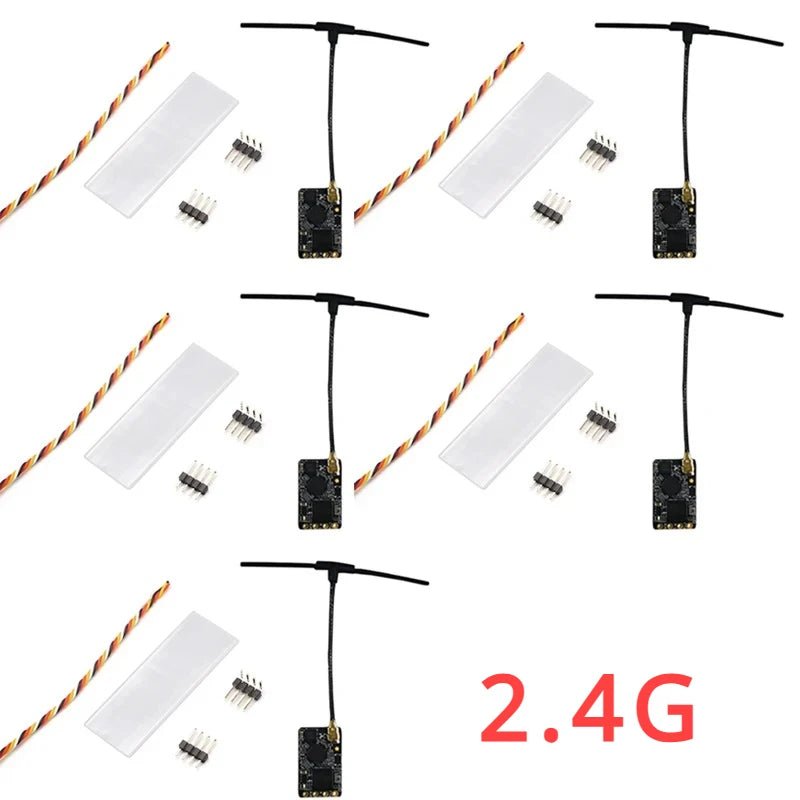

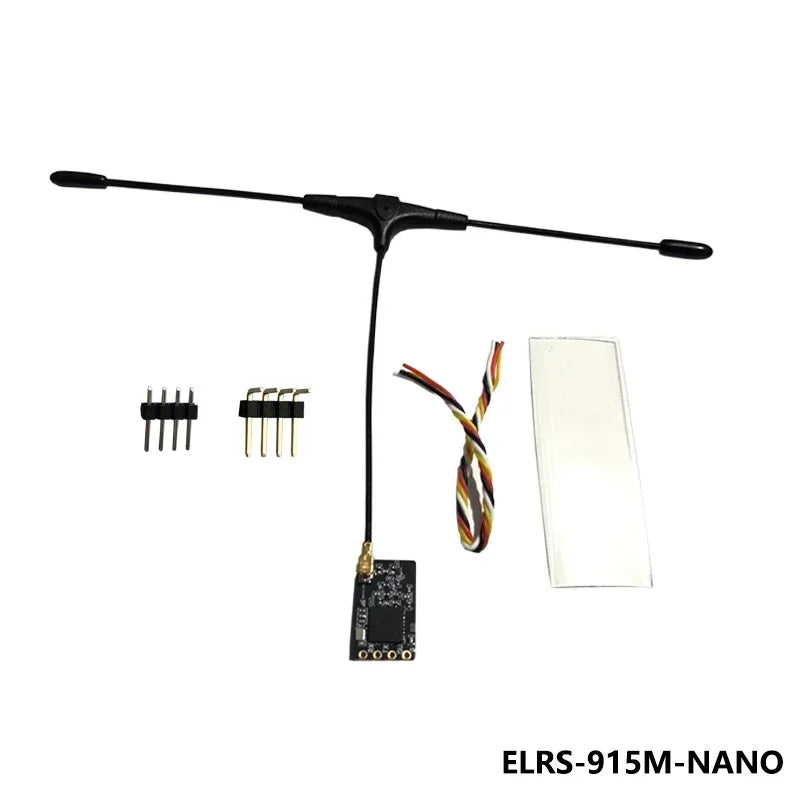

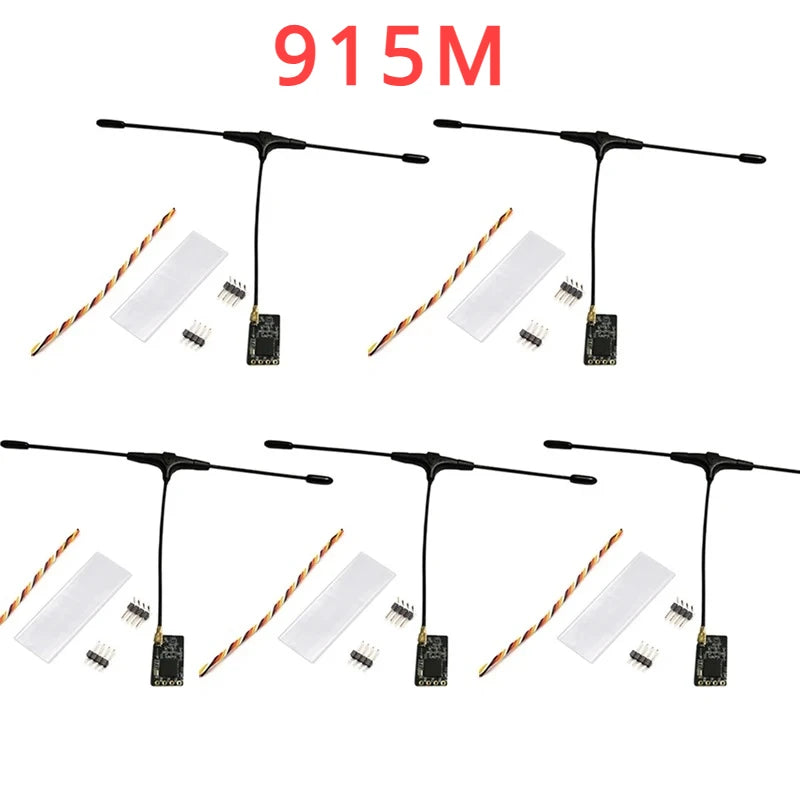

Package Includes 5x:

Nano Receiver x 1

T type receiver antenna x 1

Heat shrink tube x 2

30AWG Silicone Wire x 4

2.54mm connector 1x4pin x 2
