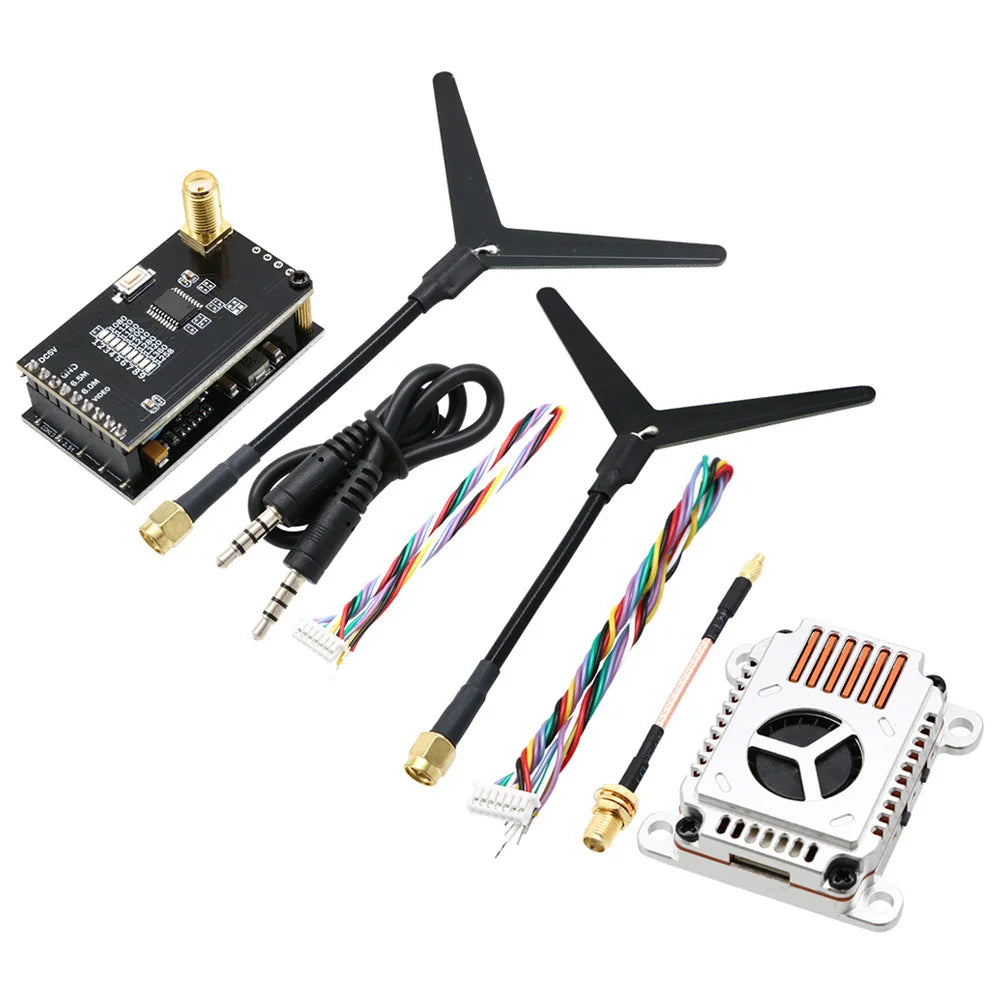

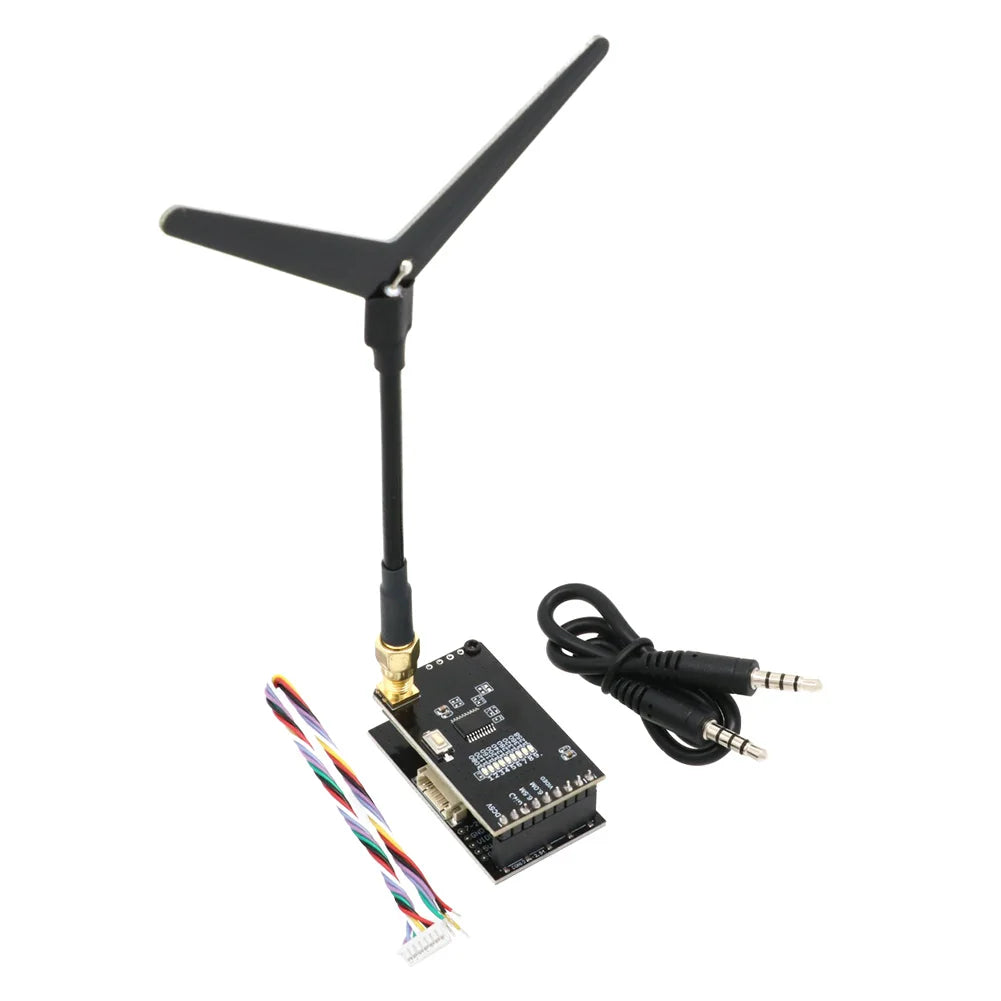

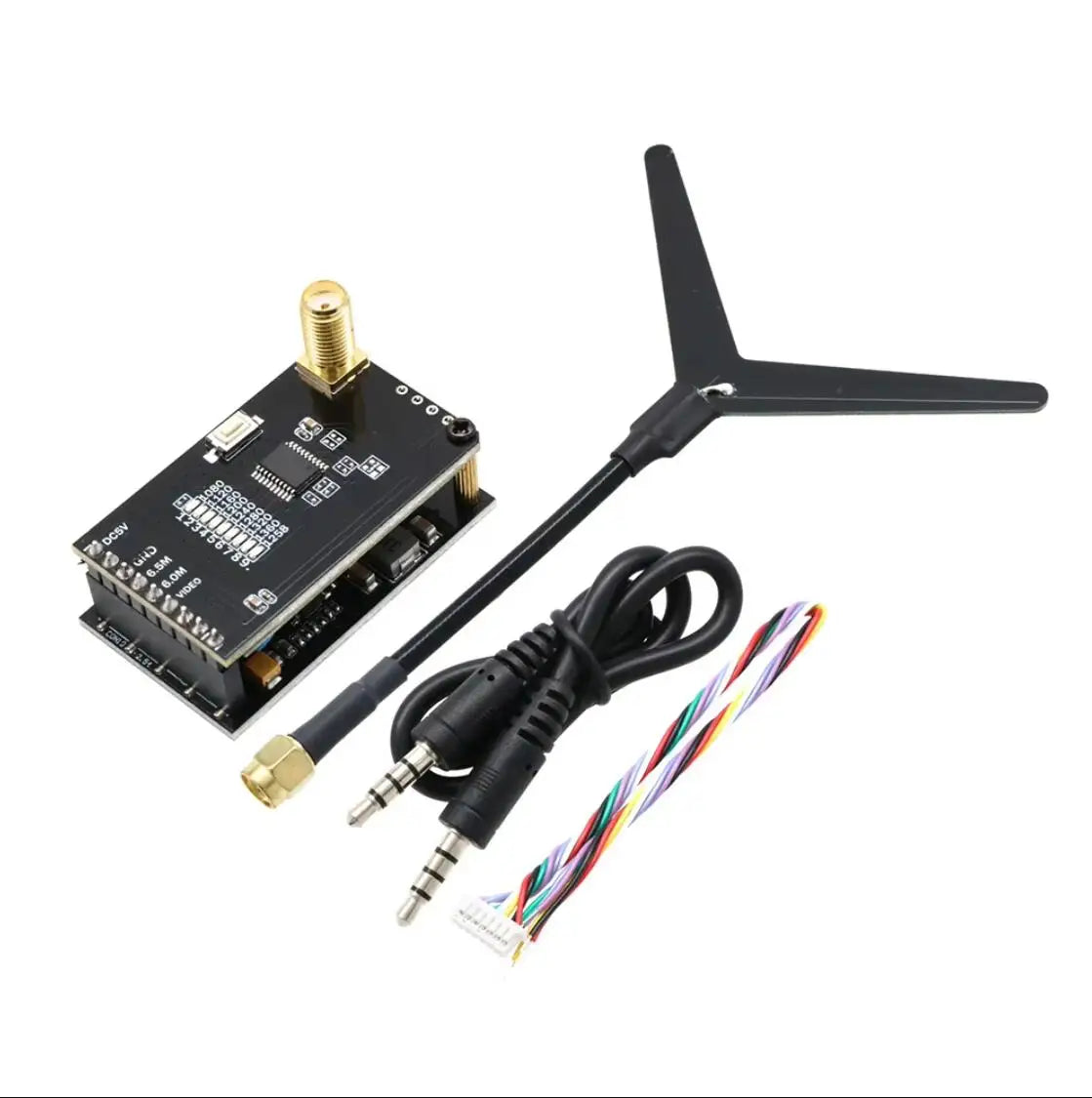

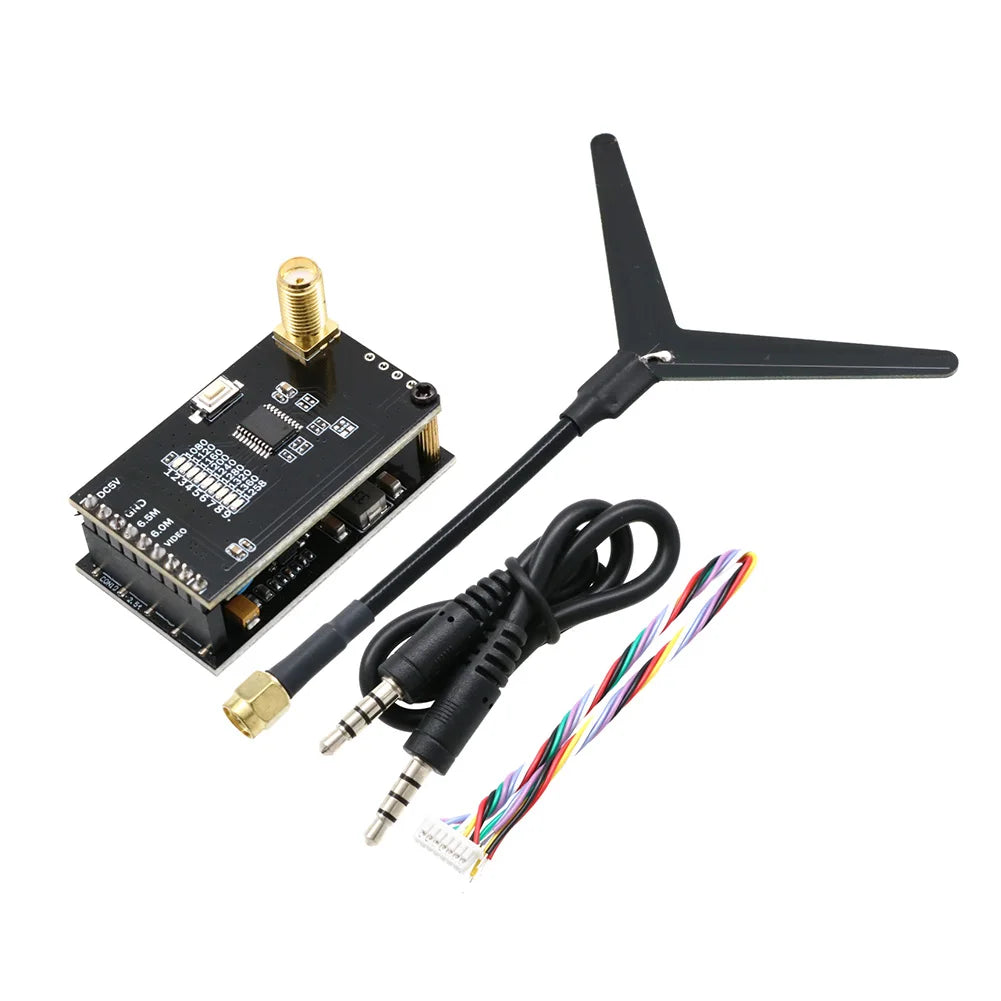

1.2GHz 1W 1.6W 2W Video VTX and VRX

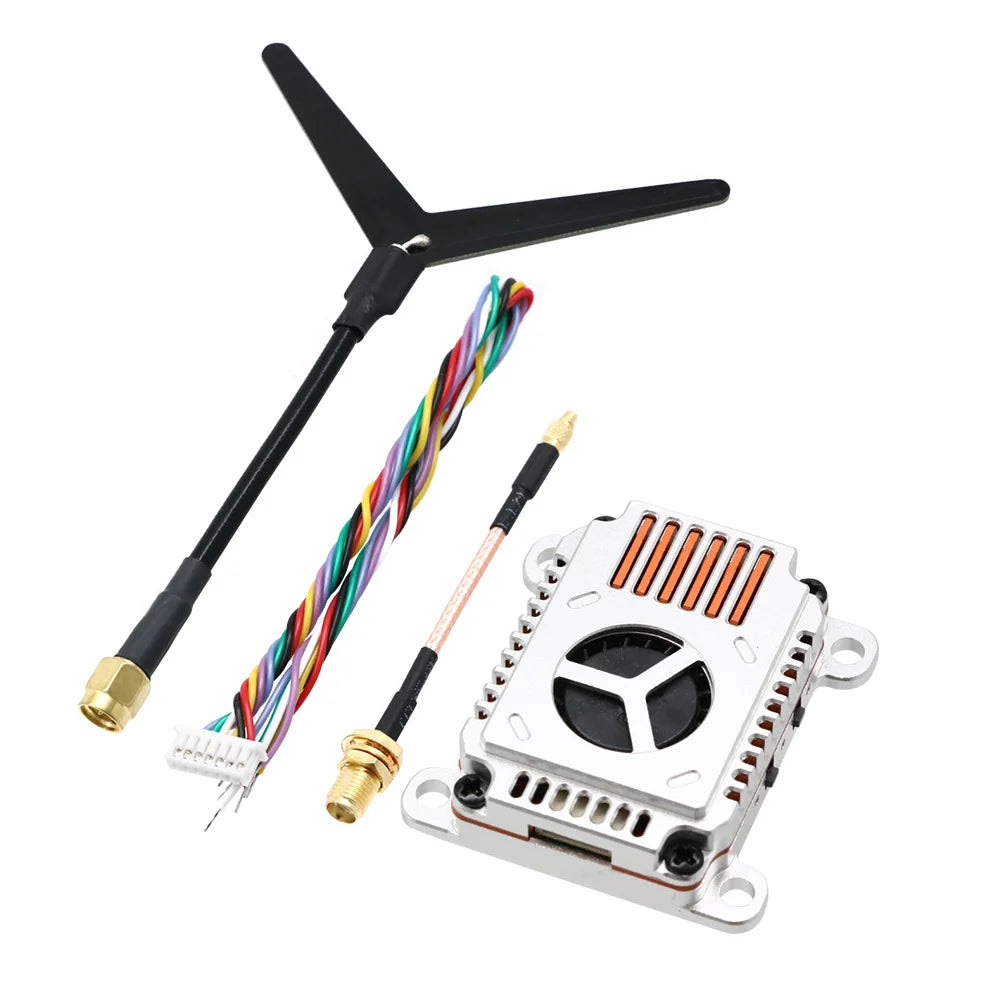

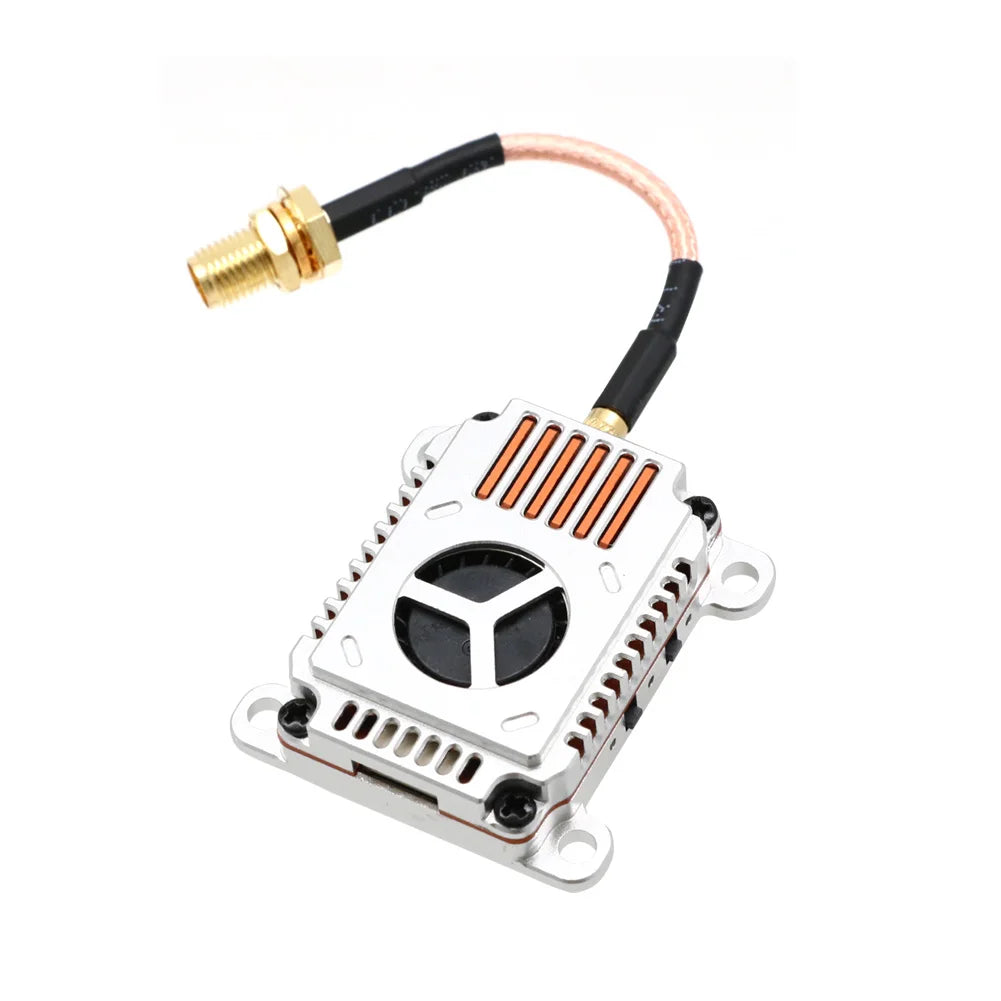

1.2G 2W VTX:

1. When installing the image transmission, it is necessary to leave space to ensure air convection around the module and ensure module heat dissipation; Otherwise, the module overheating protection will be activated, reducing power transmission and even shutting down power transmission.

2. It is recommended to ensure the correct voltage range and positive and negative poles before connecting the power supply to avoid burning out the components.

3. It is recommended to ensure that the RF output terminal has an antenna installed before connecting to the power supply, which can extend the service life of the module.

4. Please read the instruction manual before use, as this can correctly wire and extend the service life of the module.

Input Voltage: 7-36V DC;2-8S

Output Voltage: 5V 1A

12V Input Current: 235mA@Pitmode, 360mA@25mW, 880mA@2000mW,

Channels: 9CH (1060MHz-1380MHz)

Power: PIT/25/2000/mW

Antenna connector: MMCX Smart Audio: IRC-tramp Shell Material: Aluminum

Dimensions: 37.7*36.1*11 mm; 30.5*30.5mm(hole) Weight: 16g

Interface and button indicator light layout:

1. Frequency indicator light: red LED
2. Frequency band indicator light: blue LED

3. Power indicator light: Green LED
4. Frequency band and frequency point adjustment buttons

5. Power adjustment button
6.1.0 6P cable holder

7. MMCX antenna base

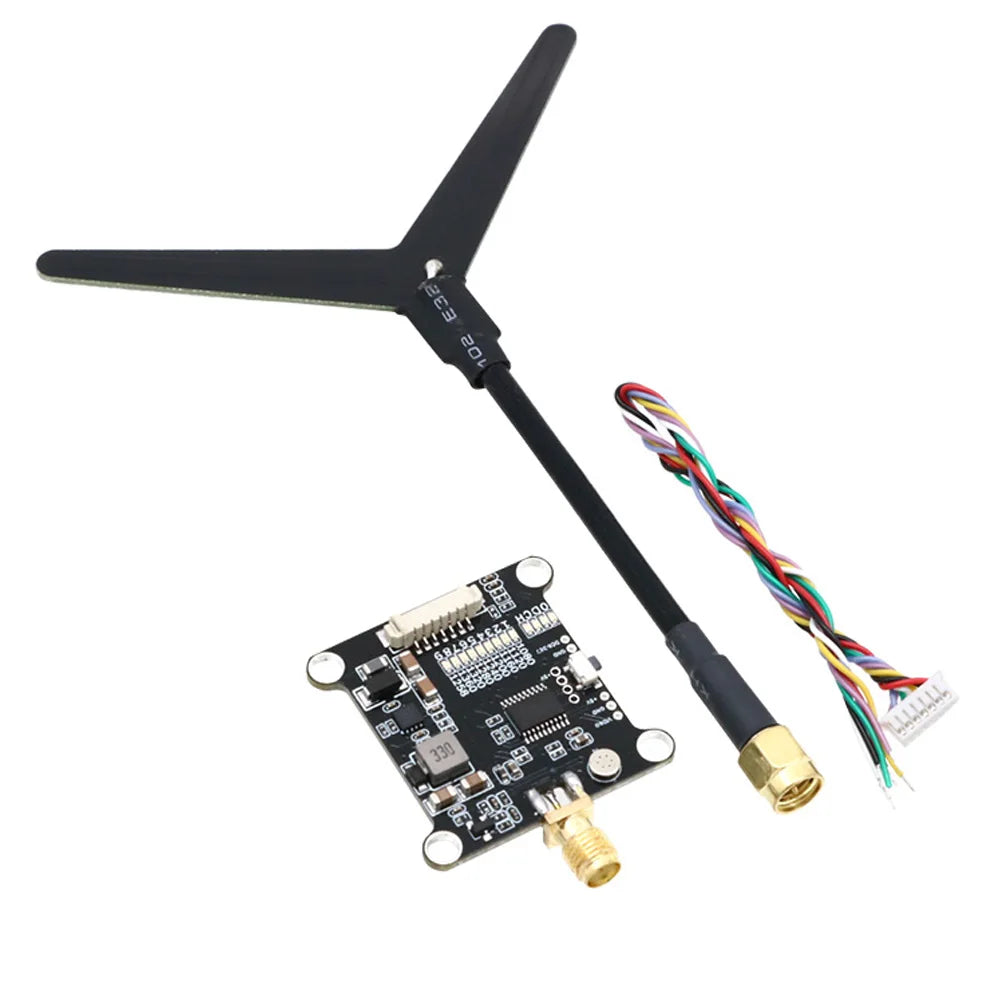

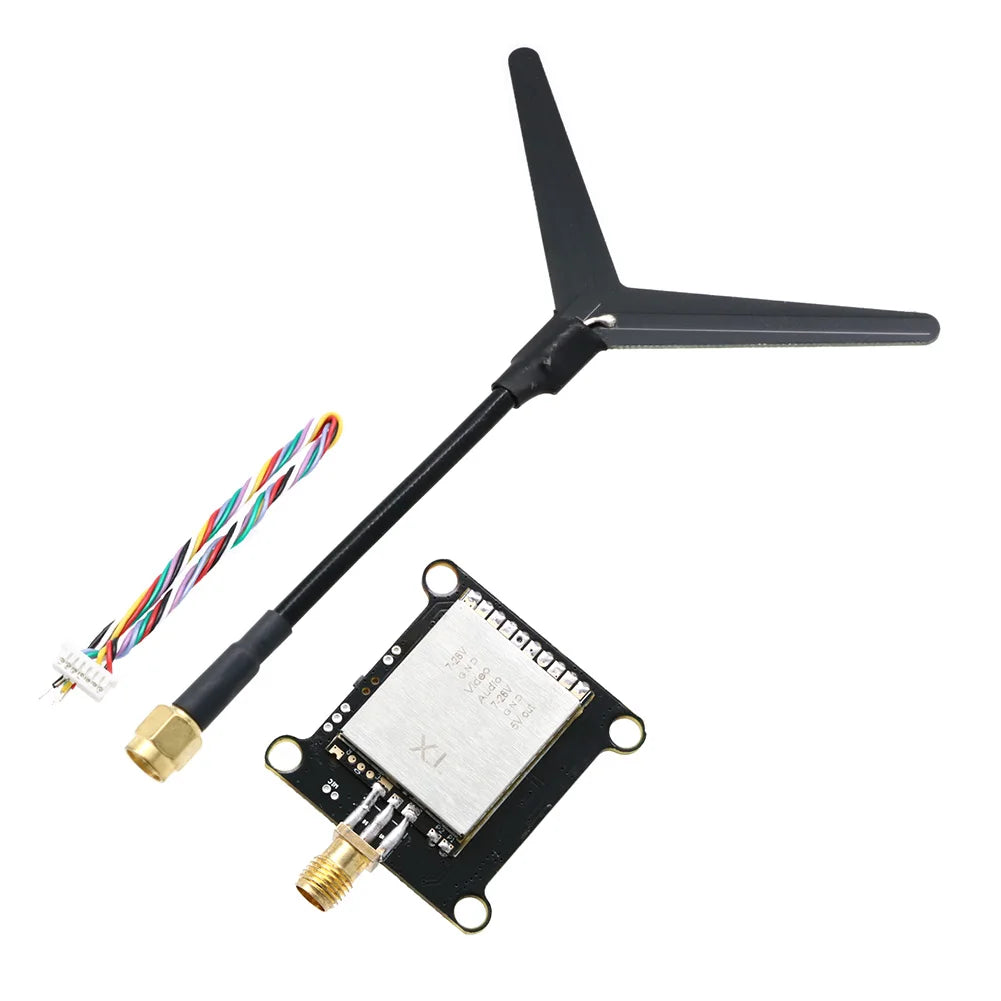

1.2G 1.6W VTX:

Video Input format: CVBS PAL/ NTSC
Frequency band: 1060-1380MHz
Channel Frequency: CH5-1240 CH1-1080 CH2-1120 CH3-1160 CH4-1200 CH6-1258 CH7-1280 CH8-1320 CH9-1360
Transmit Power: 14dB (25mW) 32dB(1600mW)
Input Voltage: DC 7-36V (3-6S Lipo)
Power Consumption: 400mA (±20mA)@12V
Operating Temp.: -10℃-+60℃
Dimension: 36mmx22mmx7mm
Weight: 10g (VTX)


Both of these support IRC tramp protocol
