MATEK MLRS 2.4GHz Receiver MR24-30 RX

Specifications
STM32G431KB, mLRS firmware
LoRa SX1281 with TCXO
PA/LNA SKY65383-11
RF Frequency: 2.4GHz ISM
RF power: 13dBm(min) / 20dBm / 24dBm / 27dBm / 30dBm(1000mW)
Antenna connector: IPEX MHF-1
TX1/RX1: Bi-directional Serial MAVLink
TX2: RC out(CRSF or SBUS)
one buttom for DFU mode and Bind

Power supply: 4.5-13V DC @ “V” Pad
Power dissipation: Average 360mA/Peak 900mA@5V IN(50Hz, 30dbm)

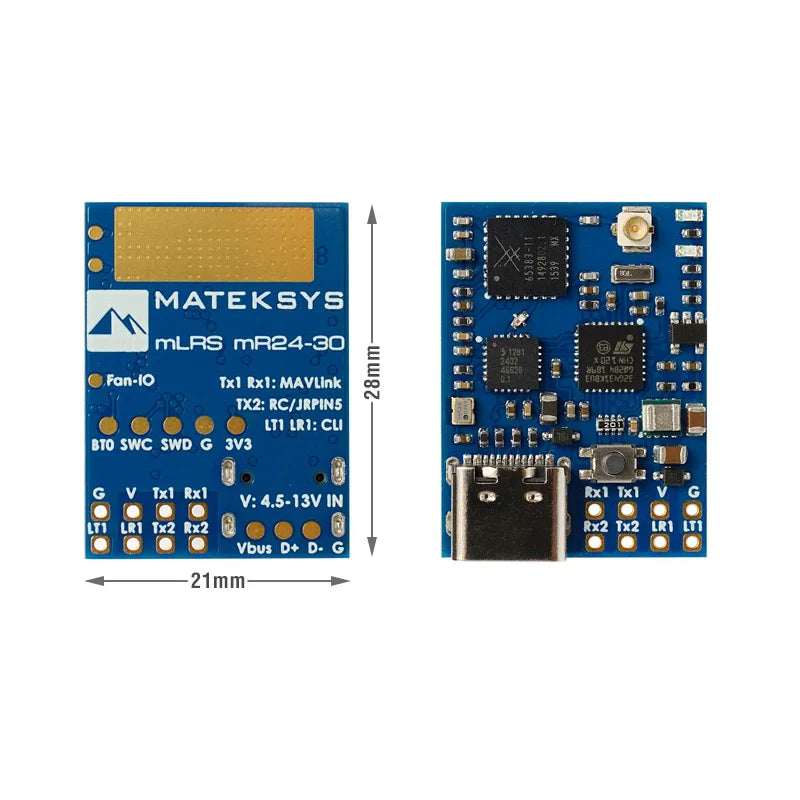

PCB Size: 28x21mm
Weight: 4.5g w/ antenna

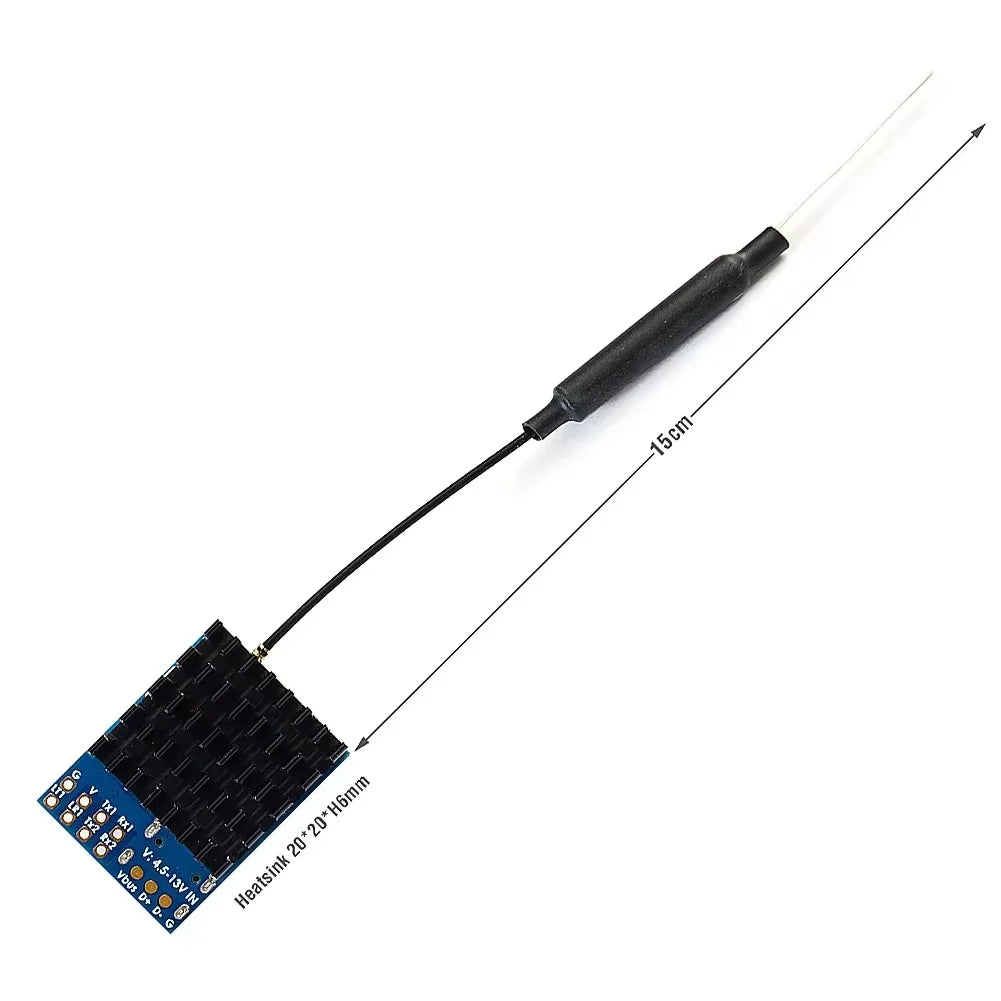

Packing:
1x mR24-30
1x IPEX MHF1 sleeve dipole antenna. 15cm
1x Heatsink 20*20*6mm

LED Status
[Red flashing 2Hz], not connected to transmitter
[Green flashing 1Hz], connected to transmitter
[Red and Green alternately ], Binding mode enabled

Binding
After powering on, press the bind button (for ca. 4 seconds) on the receiver. When in bind mode, the green and red LEDs will blink alternatively with ca 2.5 Hz.
https://github.com/olliw42/mLRS-docu/blob/master/docs/BINDING.md


Firmware
mLRS https://github.com/olliw42/mLRS/tree/main/firmware/pre-release-stm32
Targets:
  RX Receiver: rx-matek-mr24-30-g431kb

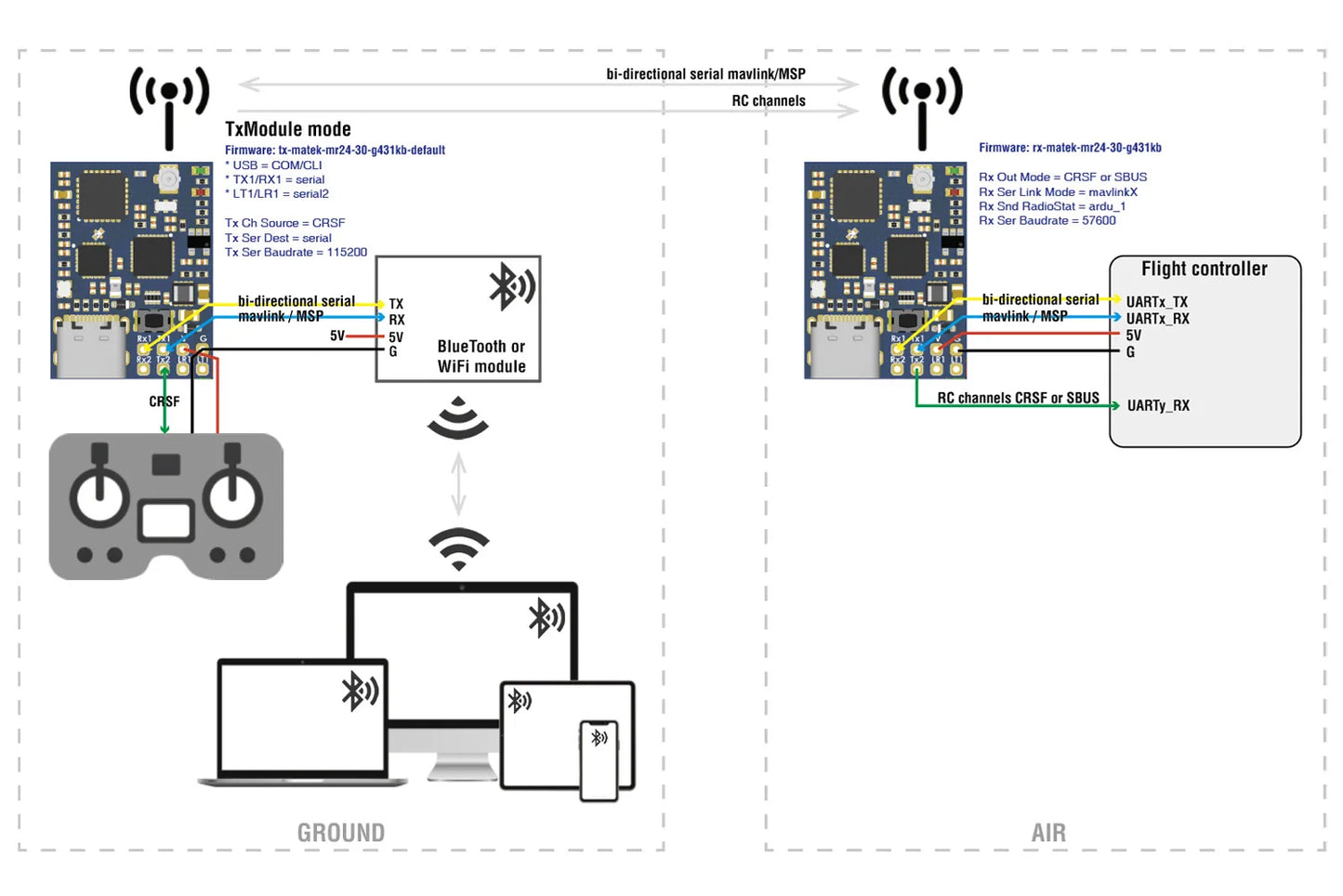

  TX module mode: tx-matek-mr24-30-g431kb-default

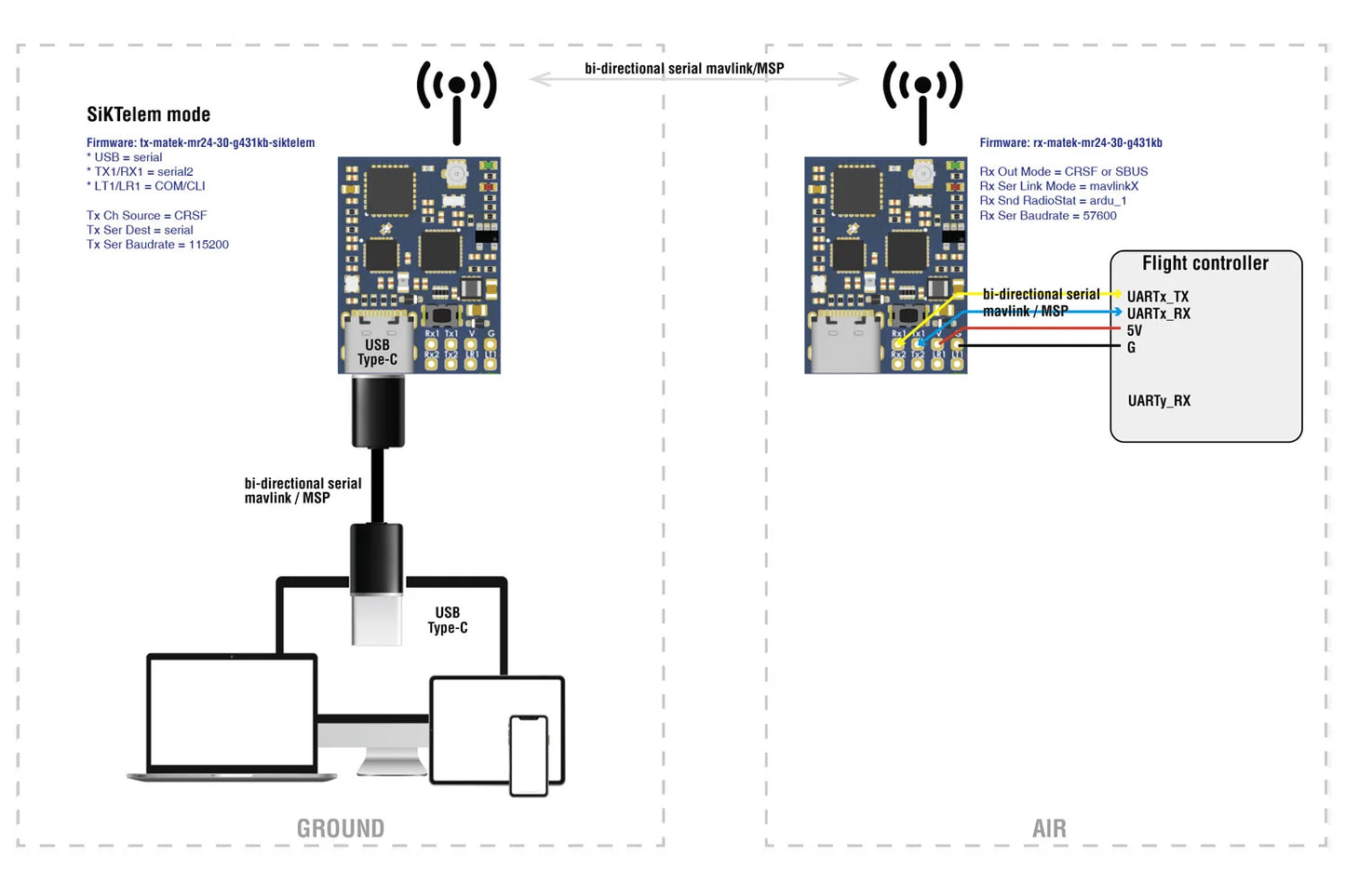

  TX SiKtelem mode: tx-matek-mr24-30-g431kb-siktelem

Tips
mLRS Github & Documentation
mLRS Discord
mLRS Facebook group
If set RF power >=500mW, It is recommended to attach the heatsink to the bottom side of PCB. The gaps between fins can be used for mounting with M3 screws
