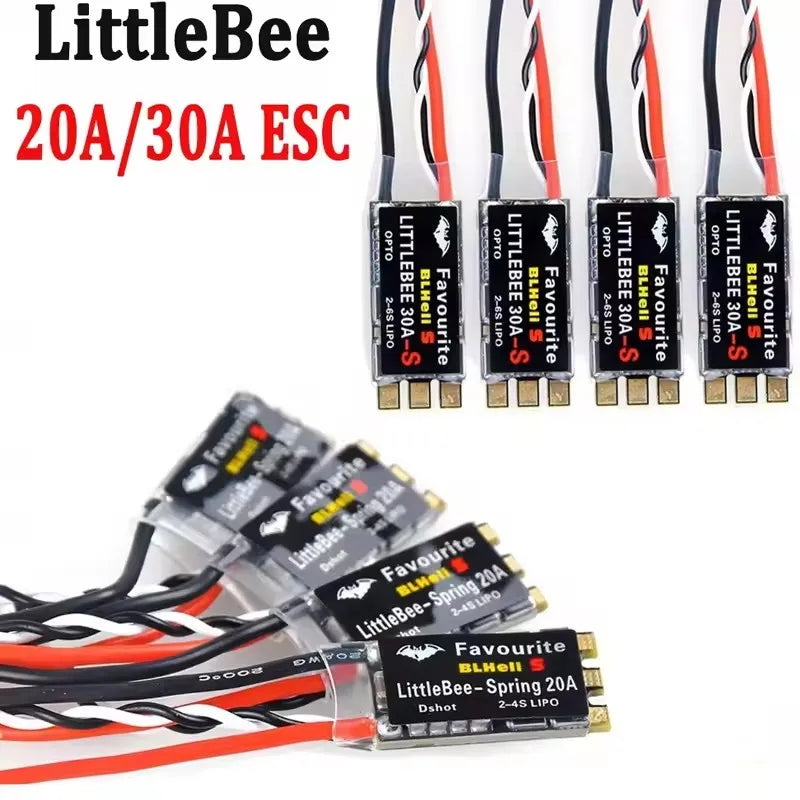

LITTLEBEE BLHeli-s SPRING 20A / 30A Brushless ESC 2-6S Supports Mulitshot DSHOT Oneshot42 OneShot125

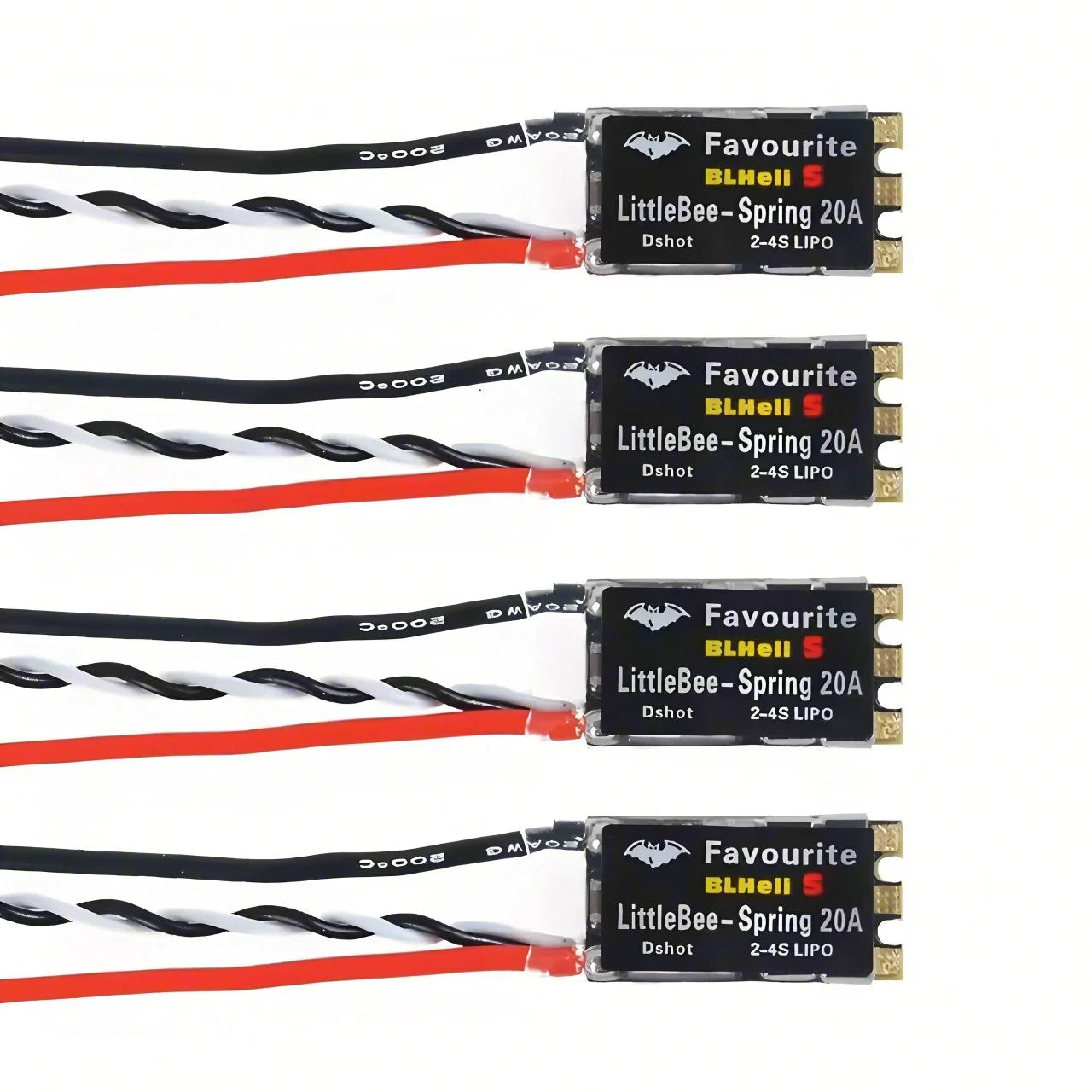

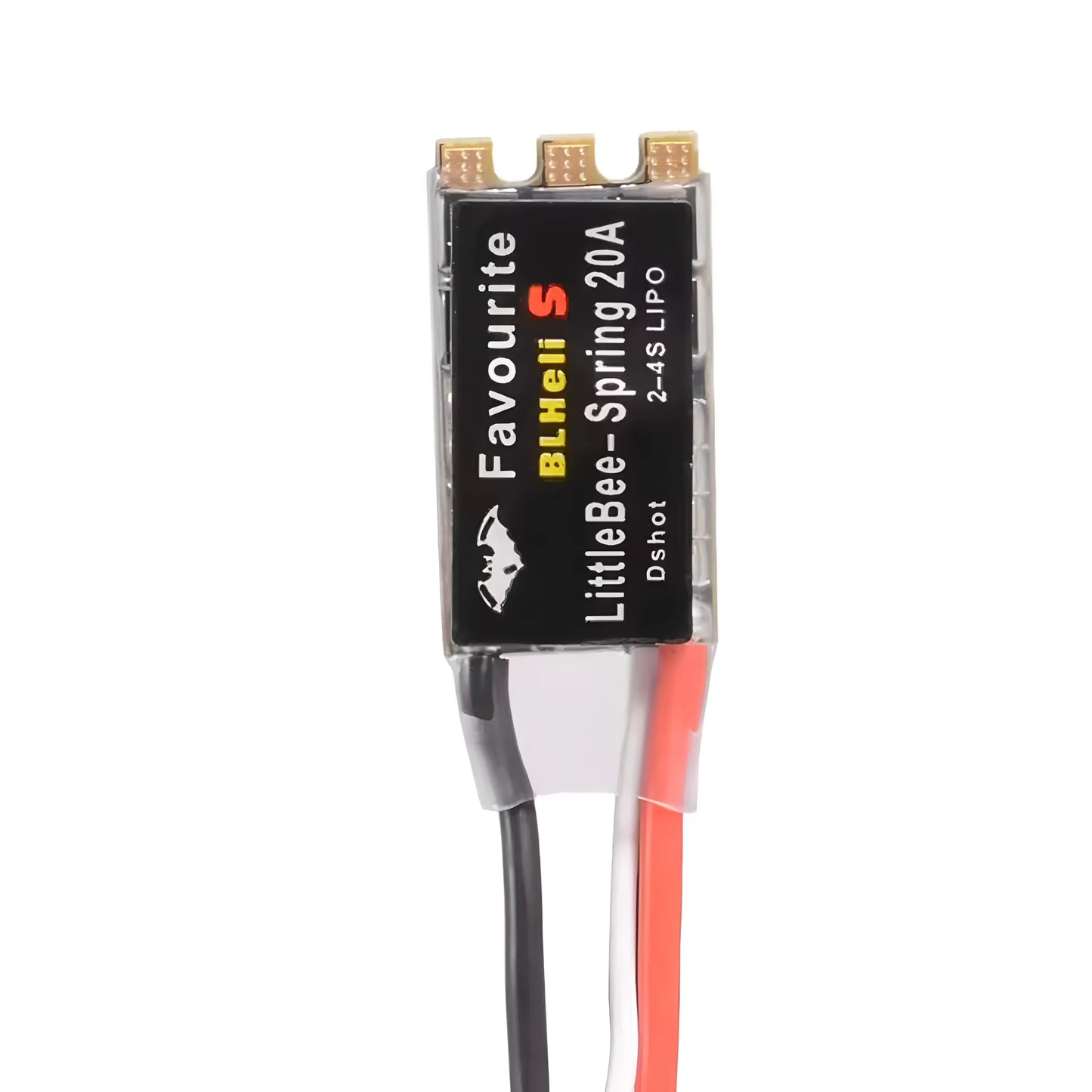

20A Brushless ESC:

1: voltage: 2-4s lipo

2: NO BEC

3: continuous current: 20A, burst current: 25A up to 10S

4: size: 23.5 * 12mm.

5: weight: 4g (include power and signal wire)

6: Support Muted mode, Oneshot125, Oneshot42 and Multshot and DSHOT

7: Main IC: SILABS EFM8BB21F16, MCU run 48MHz

8: MOS: Both low and high side fets are Nfets

9: switching speed is very fast, it has dedicated driver chip

10: BLHeli S Bootloader & Firmware

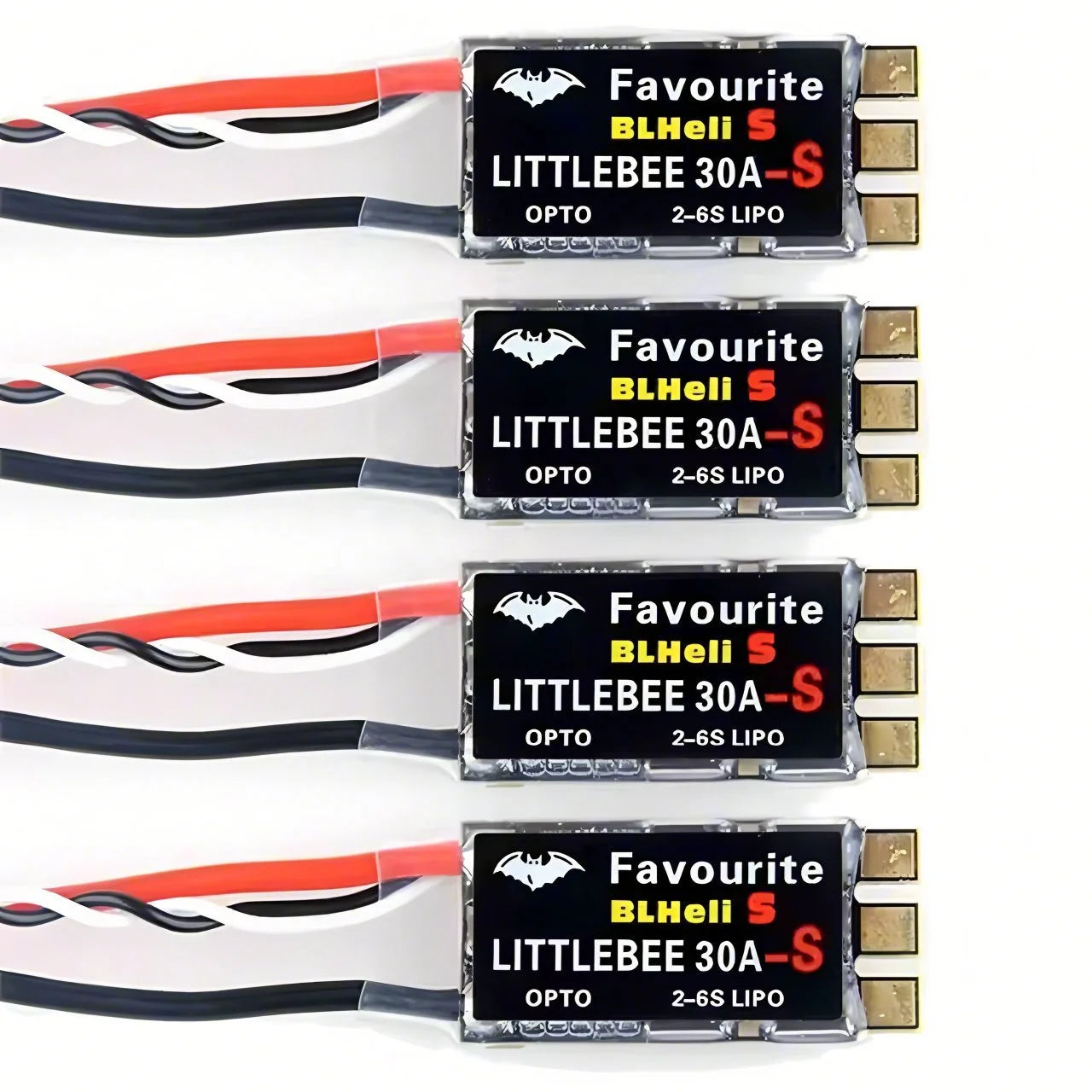

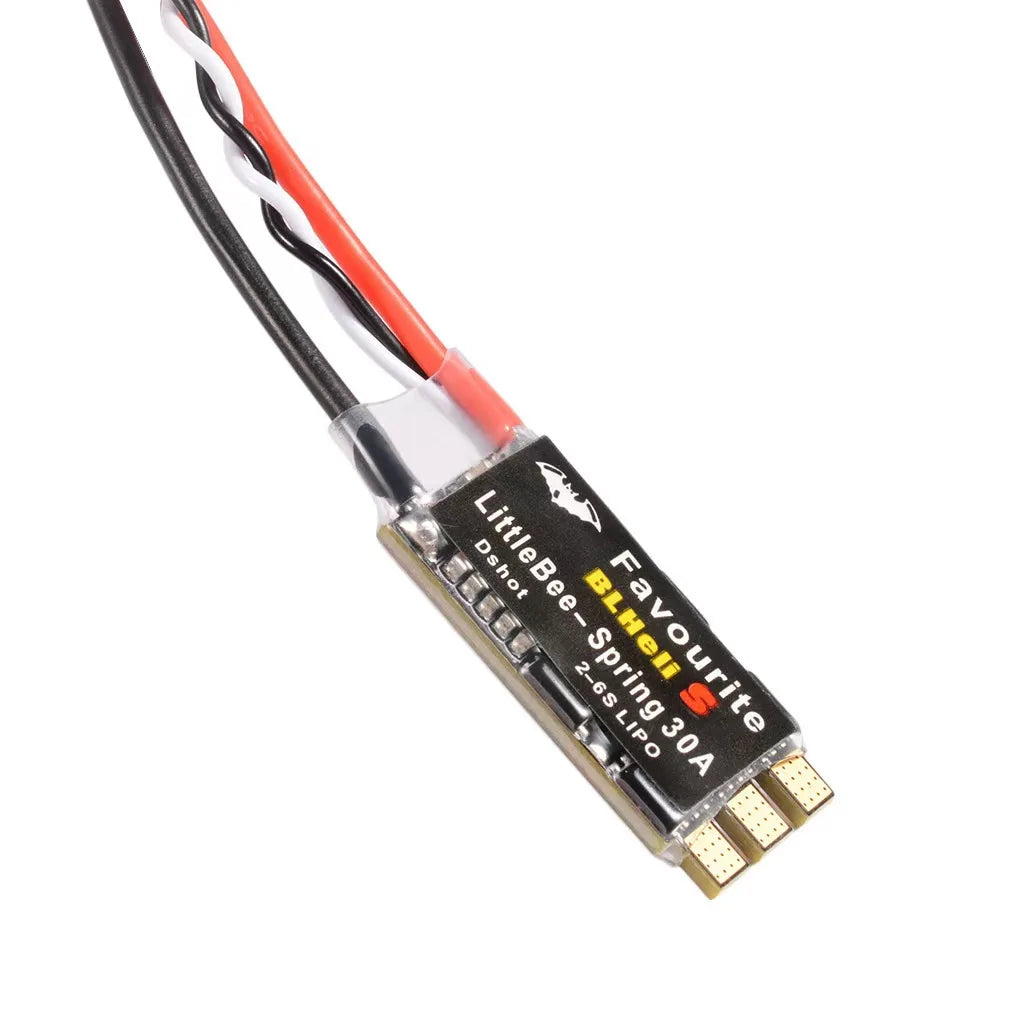

30A Brushless ESC:

1: input voltage: 2-6S Lipo

2: NO BEC



3: continue current: 30A, burst current: 35A up to 10 S.

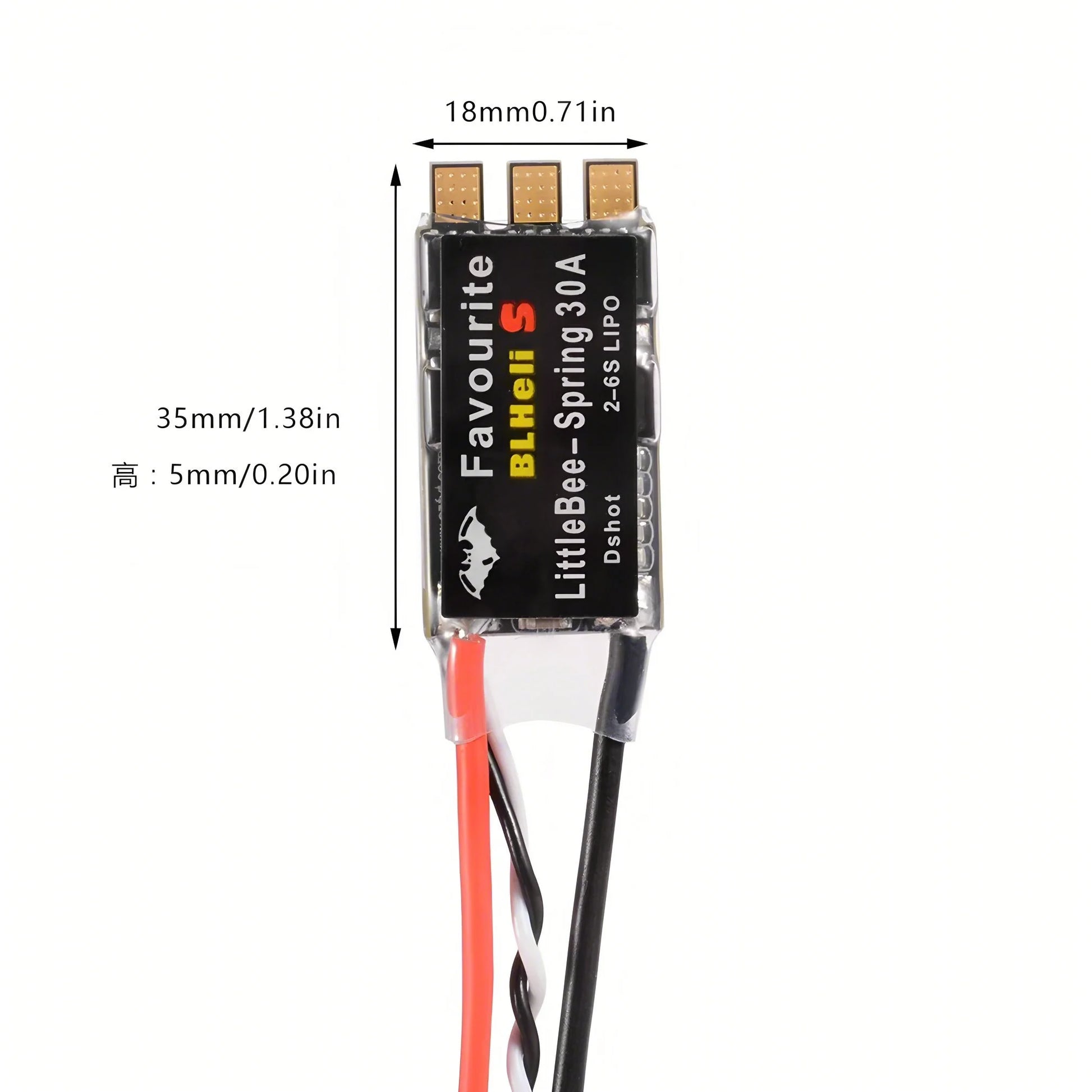

4: size: 35 * 17mm.



5: weight: 9g (include power and signal wire)



6: Support Muted mode, Oneshot125, Oneshot42 and Multshot and DSHOT



7: Main IC: SILABS EFM8BB21F16, MCU run 48MHz



8: MOS: Both low and high side fets are Nfets



9: switching speed is very fast, it has dedicated driver chip

10: BLHeli S Bootloader & Firmware
