JHEMCU GHF405AIO-HD 40A AIO Flight Controller F405

• Brand Name: JHEMCU
• Model: GHF405AIO-HD 40A
• MCU: STM32F405/168MHZ
• IMU: ICM-42688-P
• OSD: AT7456E
• Baro: YES
• Blackbox: 8MB
• Input Voltage: 2S-6S(7.4V-26V)
• 5V-BEC: 5V/2.5A
• 10V-BEC: 10V/2A
• Receiver: ELRS(CRSF),TBS(CRSF),SBUS,IBUS,DSM2,DSMX
• HD Interface: YES
• IIC: YES
• USART: UARTI, UART2, UART3, UART4, UART6
• Led Strip: YES

• Buzzer: Support 5V
• ESC Signal: PWM,Oneshot125,Oneshot42,Multishot,Dshot150,Dshot300,Dshot600
• Voltage Sensor: YES
• DFU Button: YES
• USB: Micro USB
• Firmware: Betaflight_4.4.2 JHEF405PRO.HEX

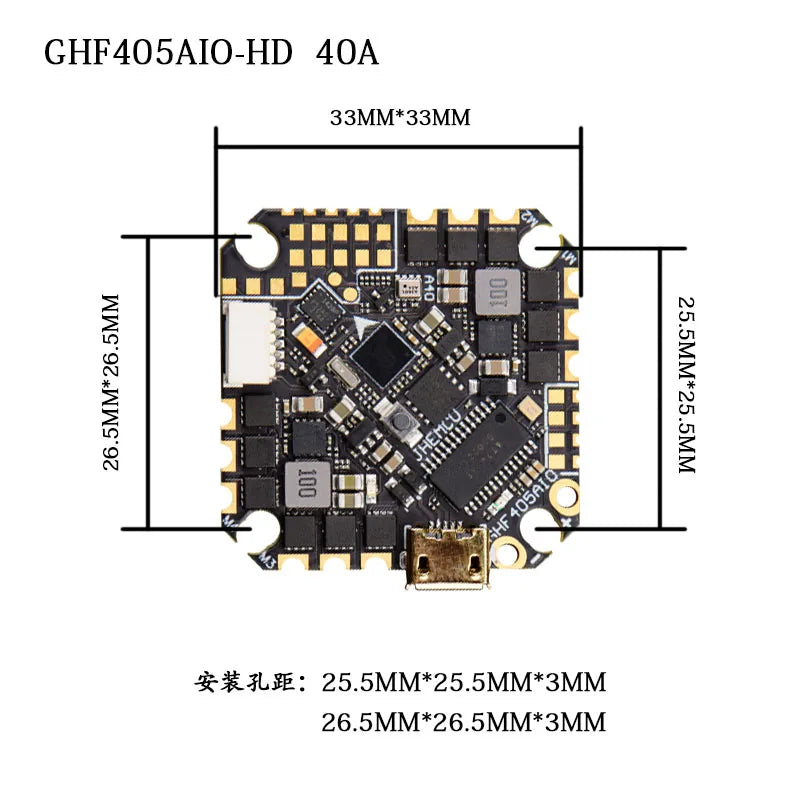

• Size: 33mmx33mm
• Mounting Hole:
  • 25.5mm*25.5mm
  • 26.5mm*26.5mm
• Weight: 7.1g
• ESC Current: 40A
• MCU: EFM8BB21F16G
• TYPE: Blheli S
• ESC Firmware: Bluejay G_H_30_48_v0.19.2
• Current Meter: YES

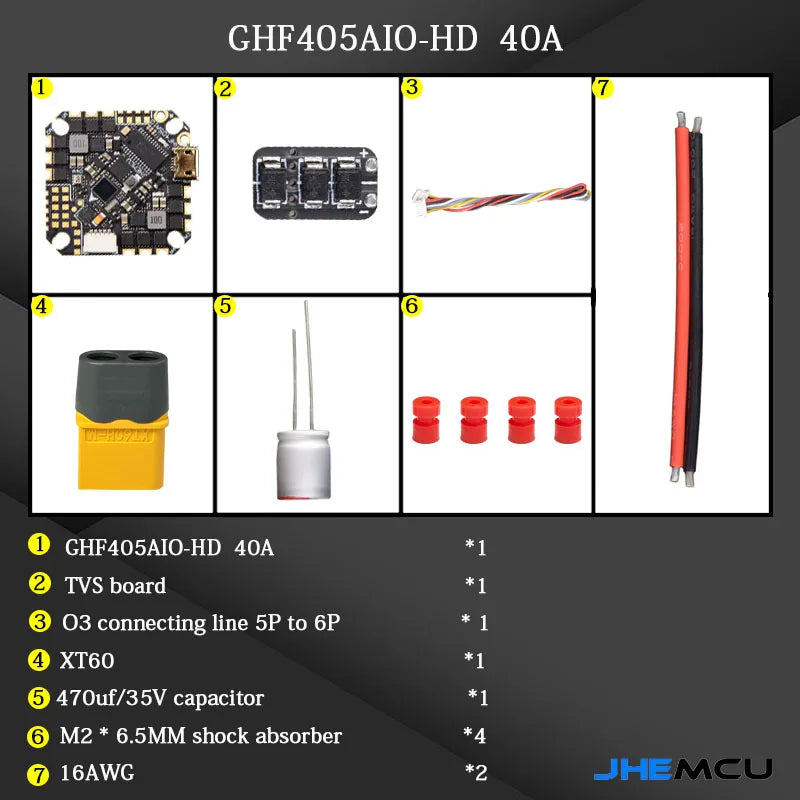

Package Inchluded:

1x GHF405AIO-HD 40A AIO Flight Controller
