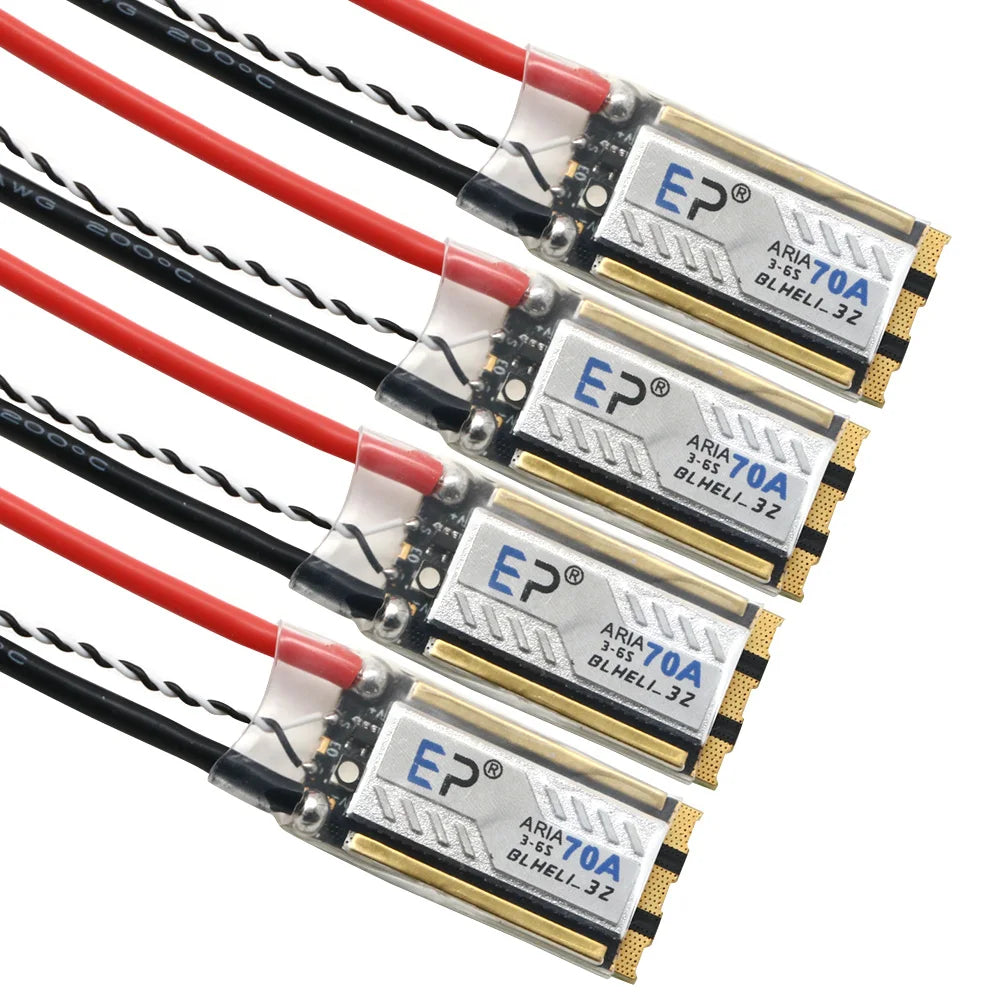

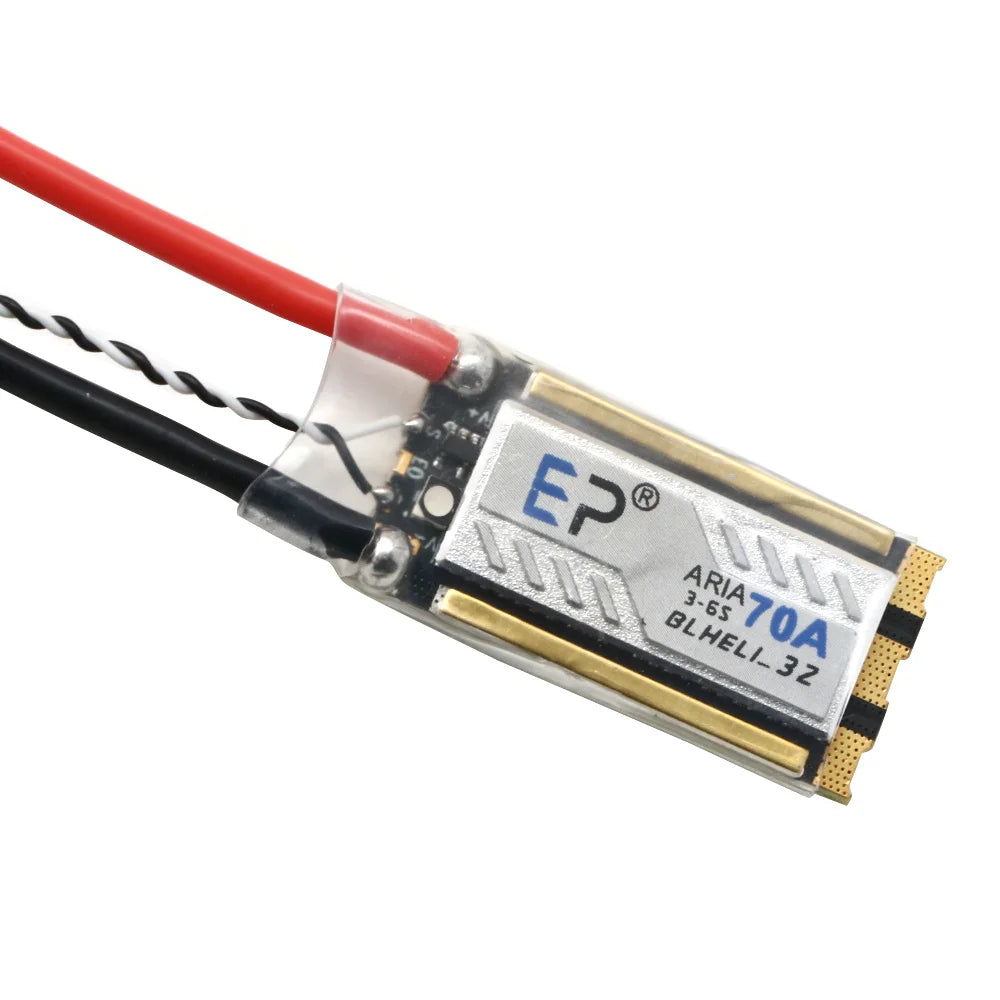

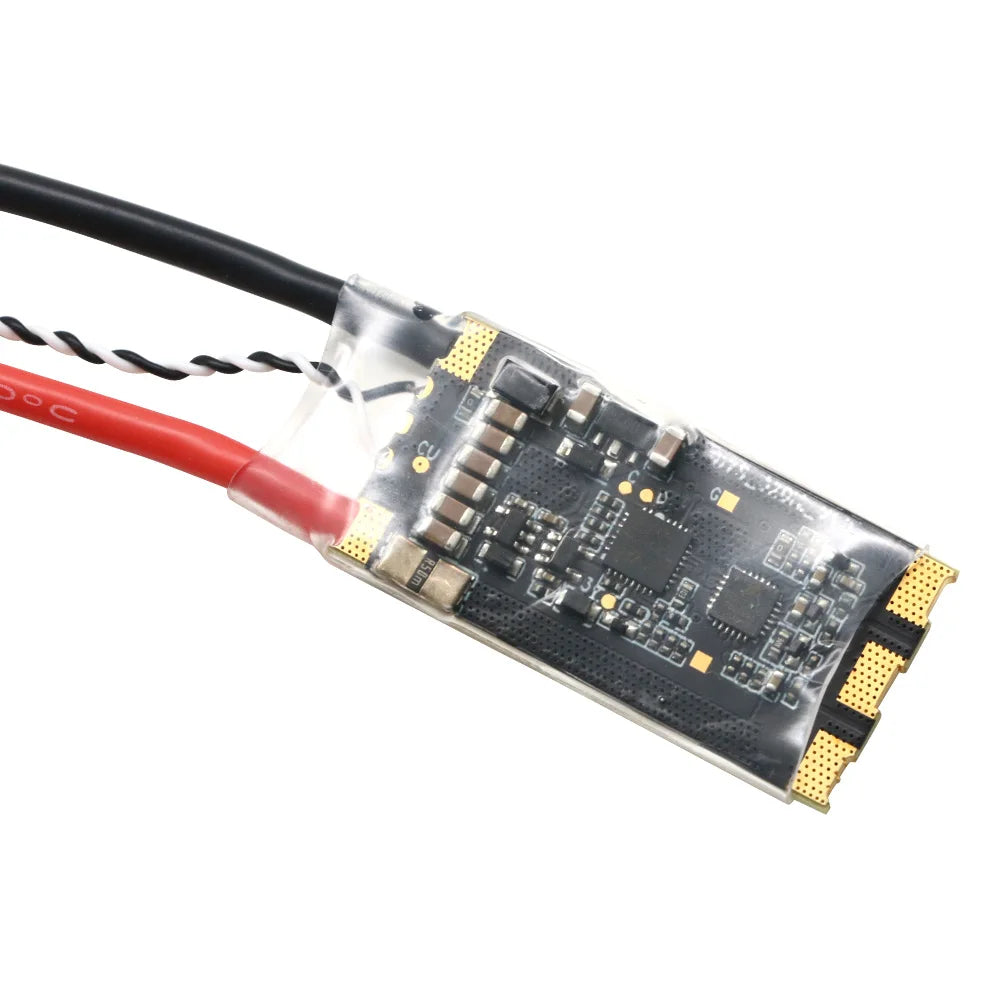

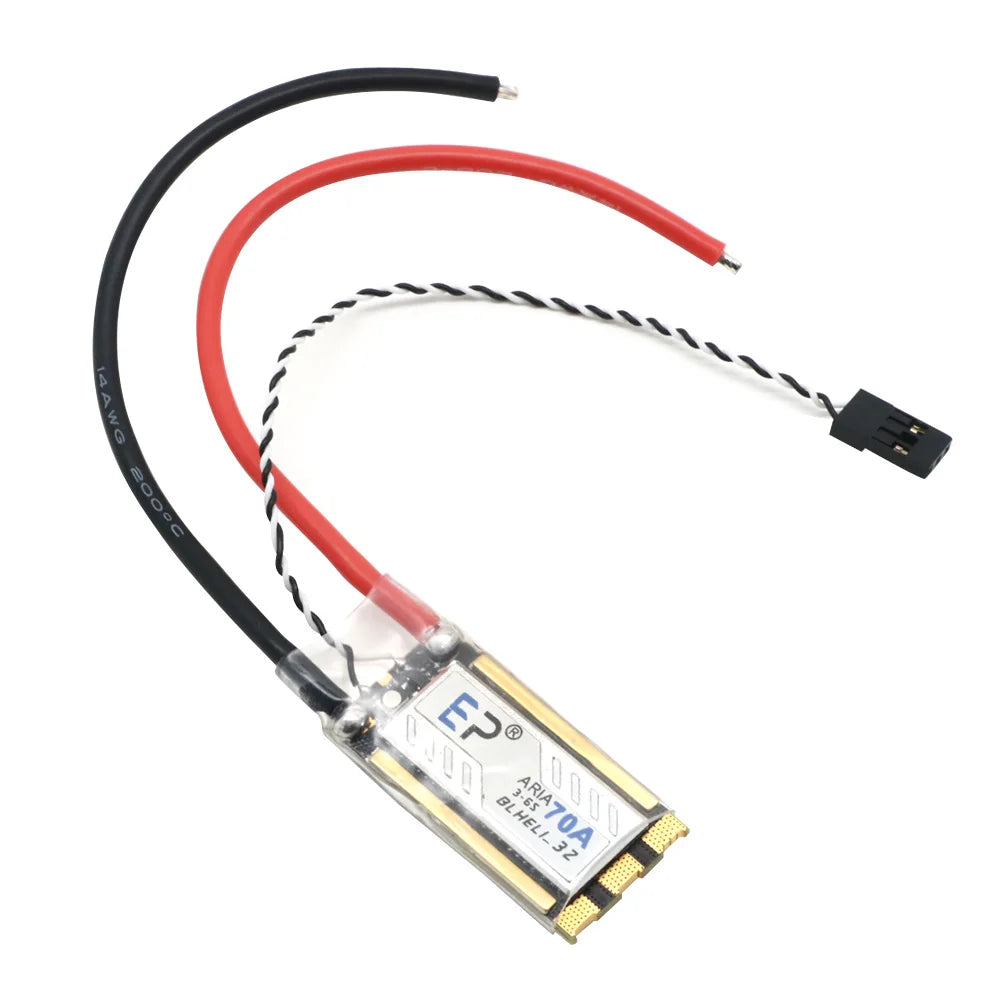

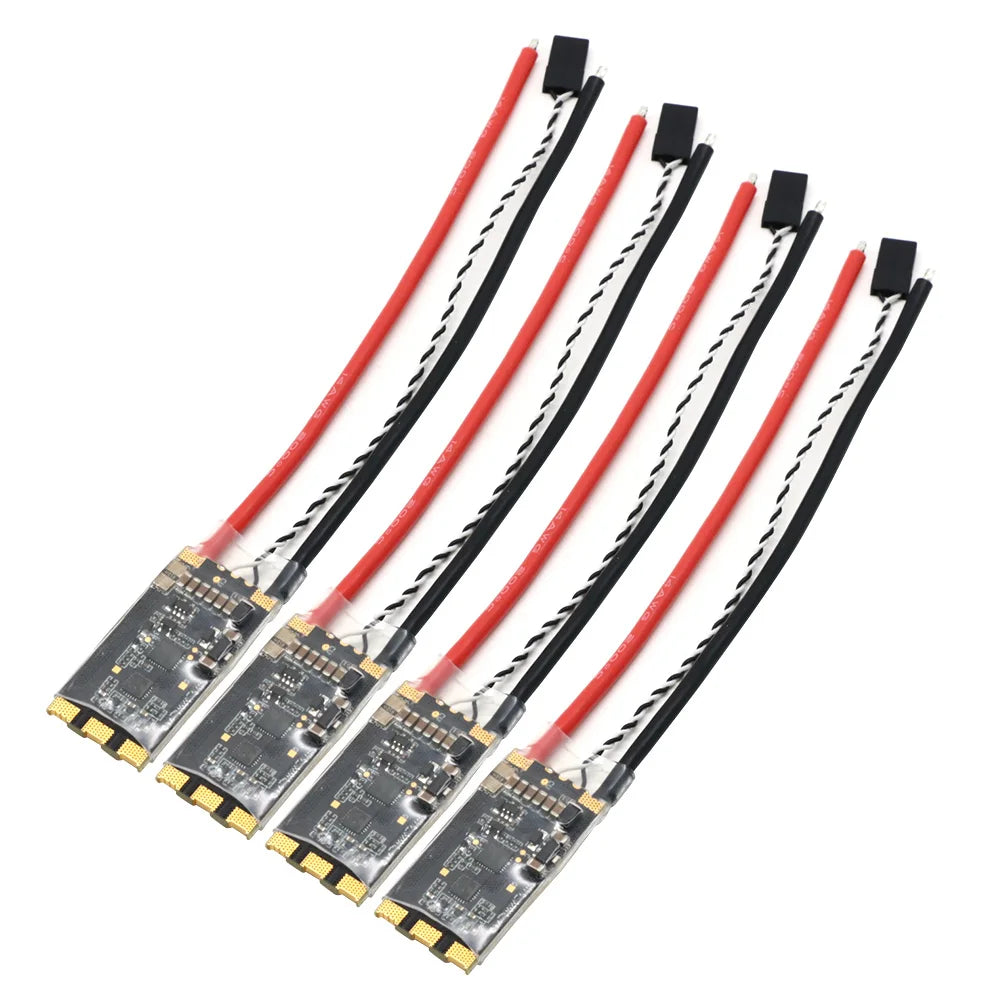

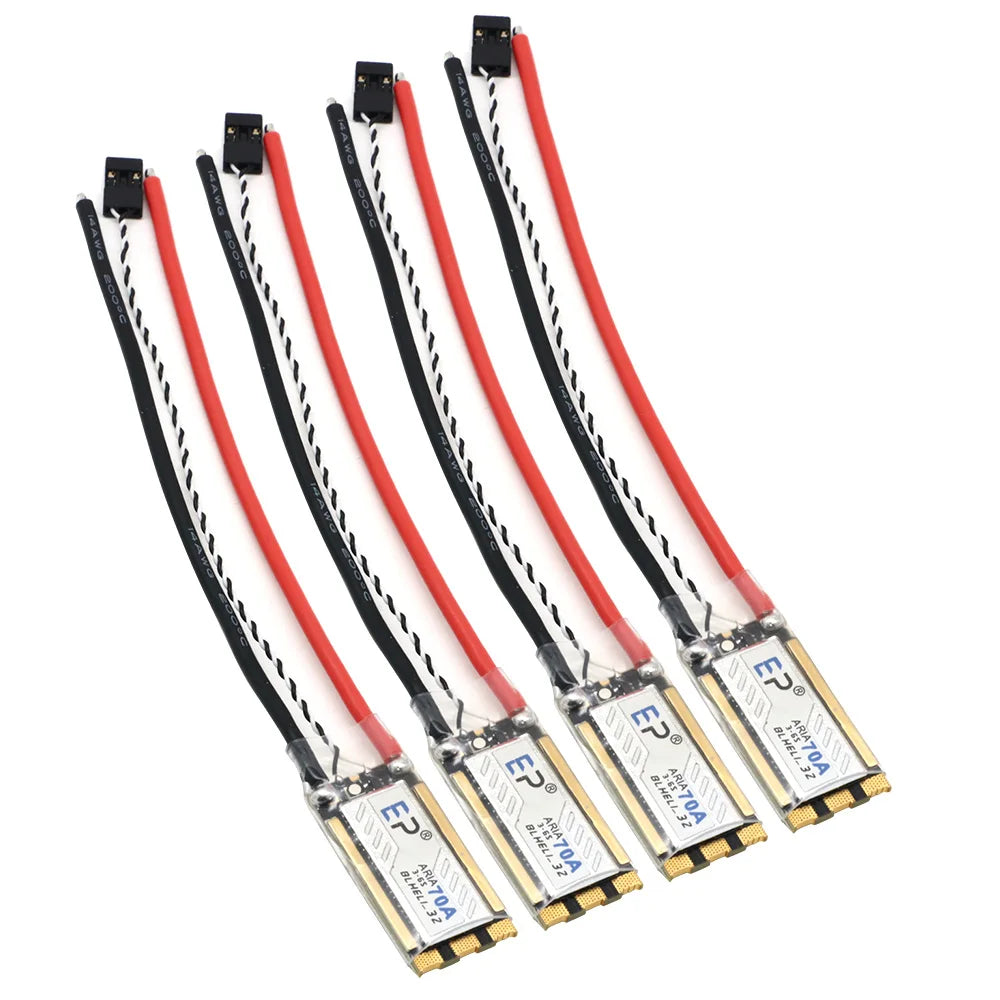

ESC Aria AM32 70A BLHeli_32 32Bit Single Brushless ESC 3-6S

1 / 2 / 4pcs EP Aria AM32 70A BLHeli_32 32Bit Single Brushless ESC 3-6S Current Meter Sensor for RC Airplane FPV DIY RC Parts

Item name: Aria BLHeli_32bit 70A ESC

Con. current: 70A

Burst current(A)>10s: 80A

Input voltage: 3-6S Lipo

BEC: NO

Size(mm)L*W*H: 21*28.16*6mm

Weight: 9.50g

Features:

◆ With 32bit ARM Cortex MCU STM32F051 48MHZ micro processor

◆ Built-in temperature sensor will pass the telemetry port to transfer and overlay to the OSD of FC,It can be programmed setting for temperature protection.

◆Support Blheli_32 firmware,can use the signal wire to upgrade the firmware or change the configuration on line.

◆ Current Meter to help show current indication of OSD;

◆ It use the self-adaption control system,can go automatic with the all kind of the motor in the market,at the mean time it support up to 500HZ PWM,oneshot 125, oneshot 42, Multishot and Dshot 150/300/600/1200.

◆ With special optimize in multi-axis,the motor can launch smoother in a good throttle curve, fast response,great power, and highly support the multi-axis,fixed-wing

and helicopter.

◆ The twisted- pair signal wire can lower the crosstalk inside cooper wire when it transfer,which will make the flight more stable.

◆ MCU hardware,Driver circuit ,Mosfet will come with double voltage protection.

◆ Mosfet is covered with aluminum sheet for cooling,which can bring more efficiency and stability.
