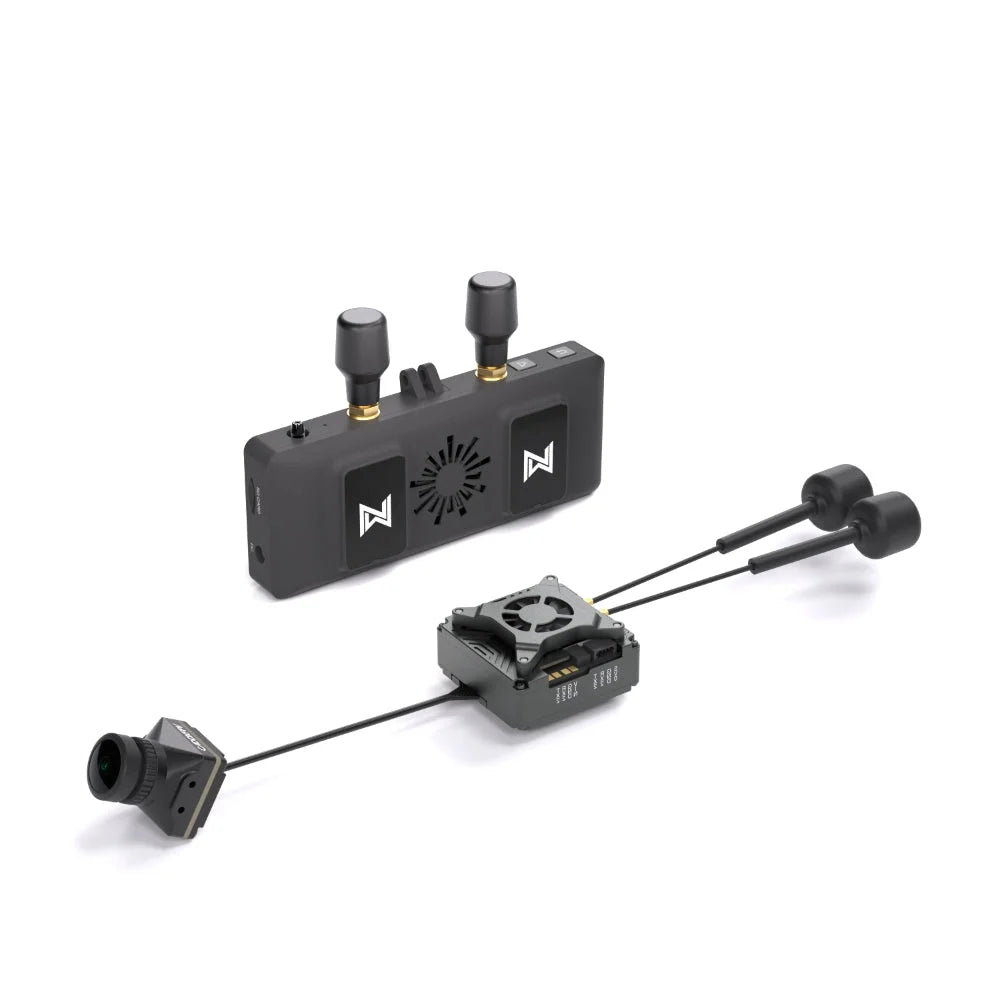

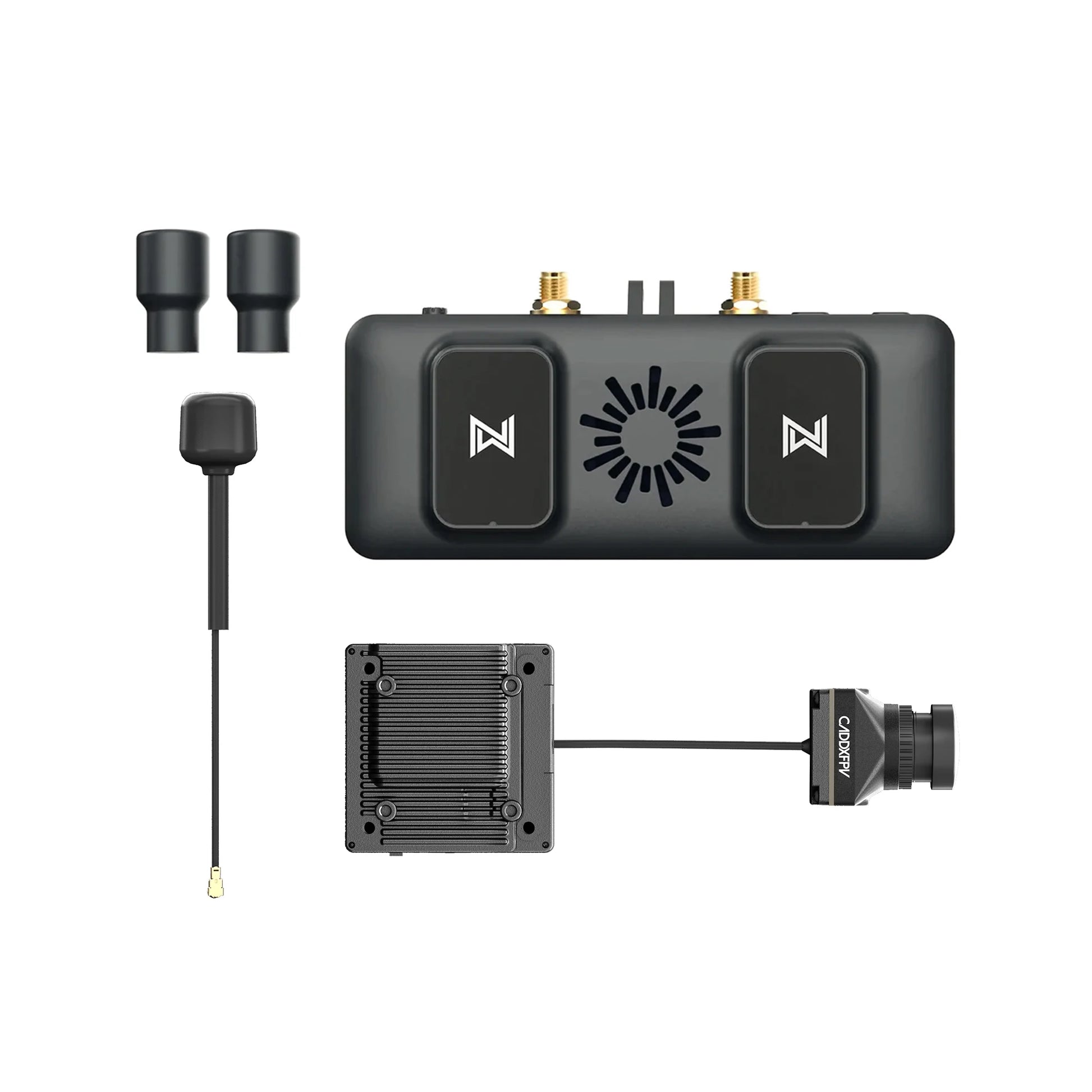

CADDX Walksnail VRX 4km 4 Antenna HDMI-Compatible 1080P/60FPS with or without vtx

Camera

Model Avatar nano/Avatar camera
Image Sensor 1/2.7''1nch
Resolution 1080P/60fps,720P/120fps,720P/60fps
Ratio 16/9 4/3
Lens 2.1mm
FOV 170°
Aperture F2.0
Shutter Rolling shutter
Min.Illumination 0.001Lux
Weight 3.5g/6g
Dimensions 14*14*17mm/19*19*22mm
Coaxial Cable 90mm/140mm

VTX

Model Avatar module
Communication Frequency 5.725-5.850GHz
Transmitter Power (EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
1/O Interface JST1.0*6(Power in)JST1.0*4(USB)
Mounting Holes 25.5*25.5mm
Dimensions 33*33*9.5mm
Storage 8G
Recording 1080p/720p
Weight 16g
Operating Temperature -20-40℃
Channels 8
Wide Power Input 6V-25.2V
Supported FC System Betaflight
OSD Canvas mode
Latency Average delay 22ms
Antenna 2(IPEX)

Goggles Antenna

Model Red bird
Polarization LHCP
Bandwidth 5.6GHz-6.0GHZ
Average Gain 1.9dBi
Radiation Efficiency ≥97%
VSWR ≤1.3
Cross-Polar Rejection -15to-30dB
Connector RP-SMA
Dimension H24.8mm*R15.3mm
Weight 4.2g

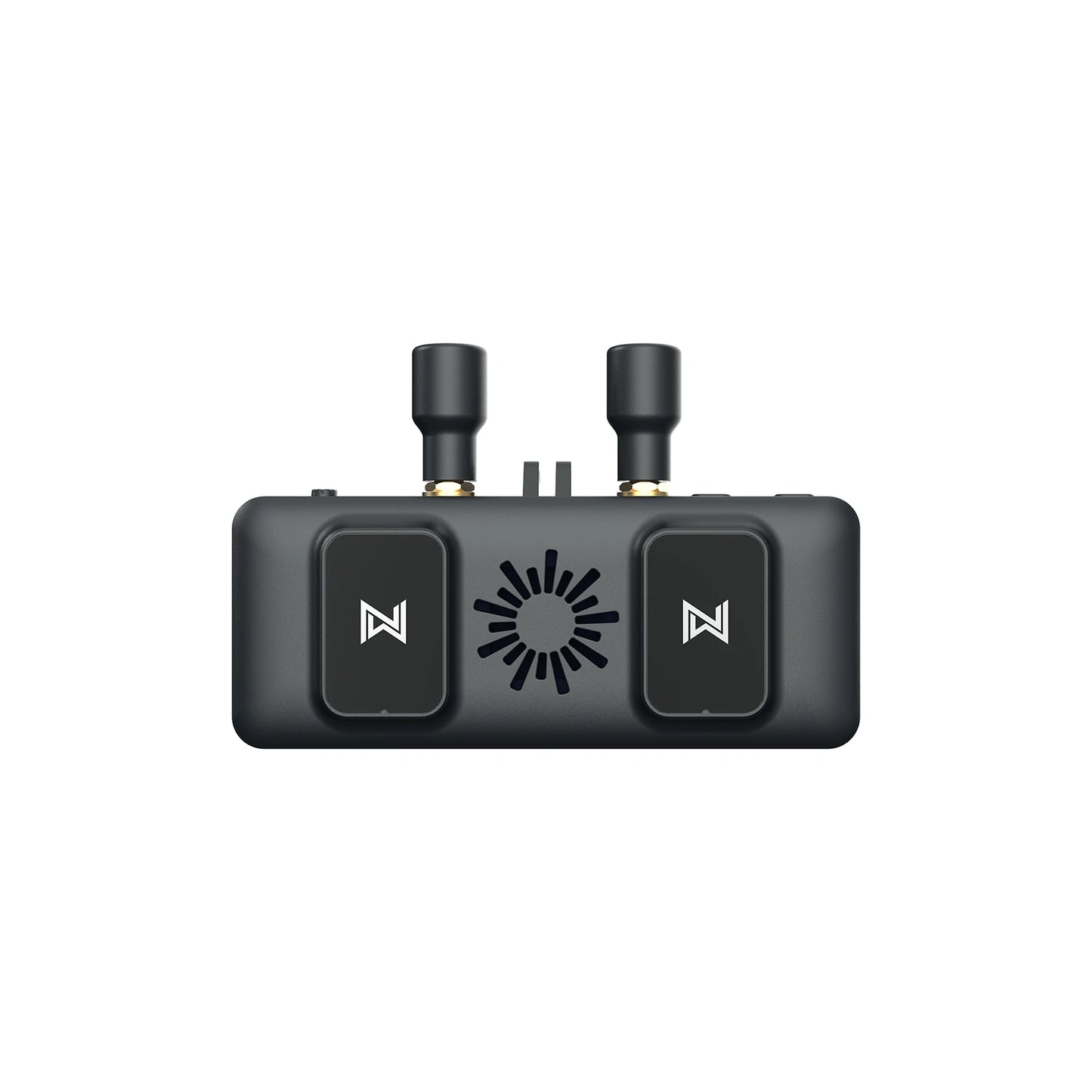

Avatar HD VRX

Model Avatar HD VRX
CommunicationFrequency 5.725-5.850GHz
TransmitterPower(EIRP) FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;MIC:<25dBm
I/OInterface HDMI,microSDcardslot,DC5.5*2.1mm
HDMIOutput 1080p60fps,720p100fps,720p60fps
PowerInput 7-21V(2S-5S)
SDCard Support256G
System AvatarHDsystem

Packing List

Avatar VRX ×1
RedBirdAntenna ×2
HDMICable ×1
2in1DCPowerCable ×1

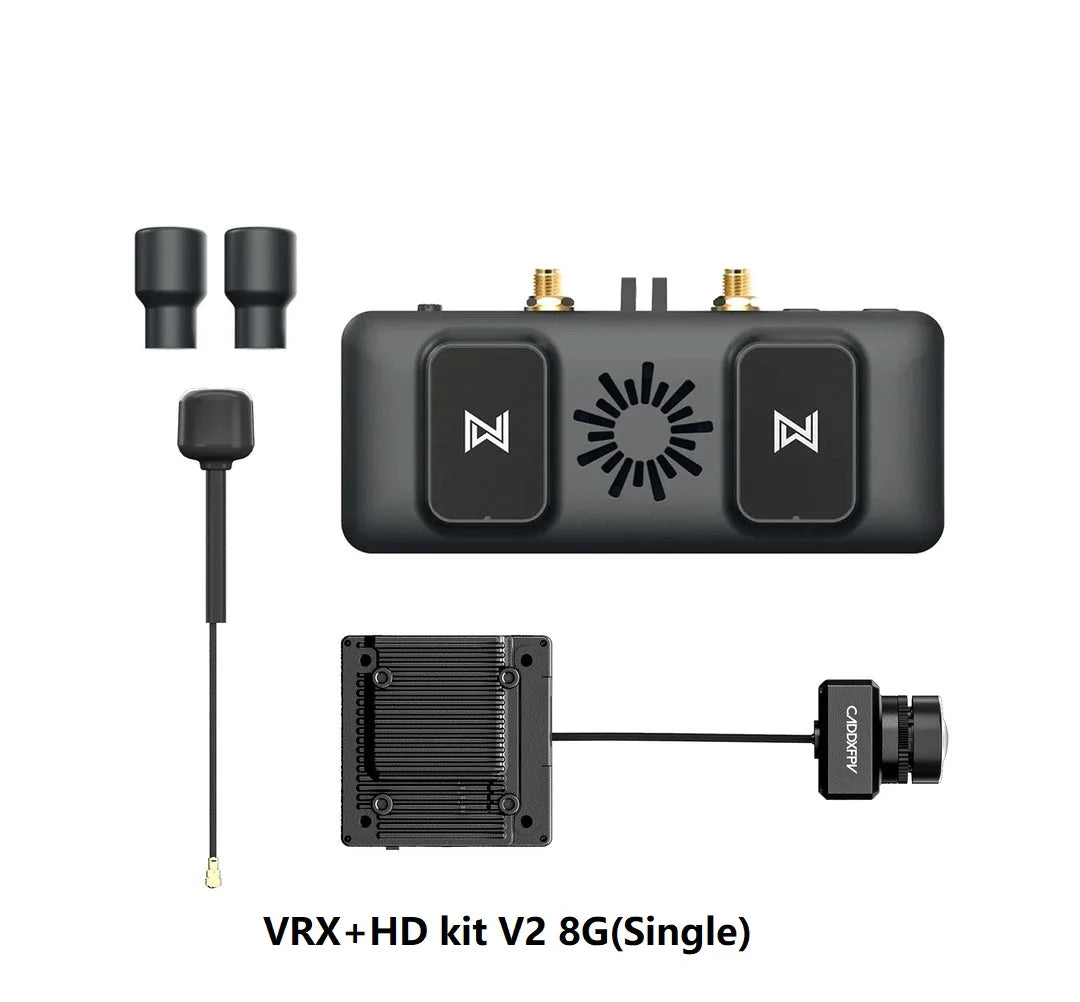

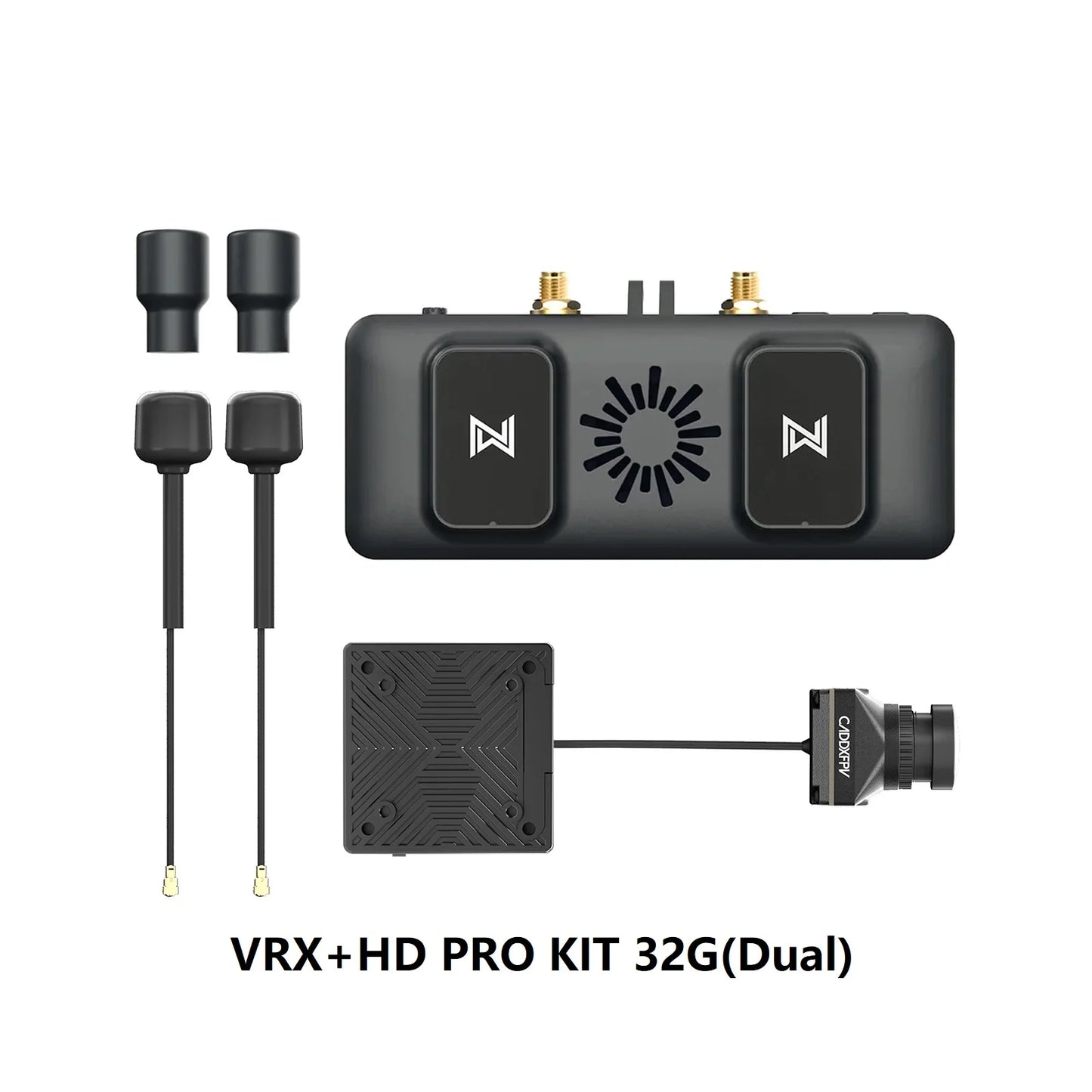

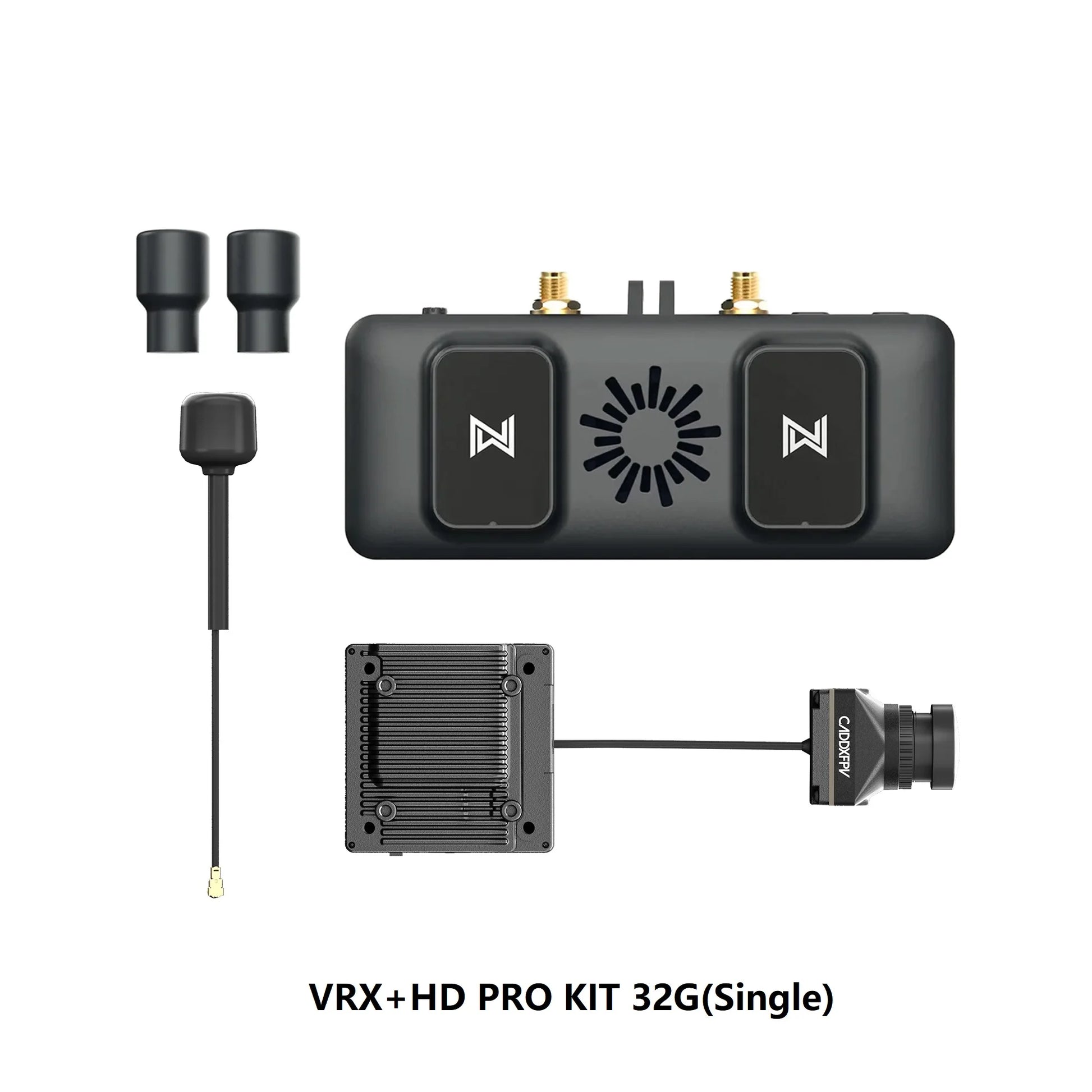

Avatar HD KIT X1
4 Pin USB Cable X1
6 Pin Power Cable X1
M2x3/4/5mm Screws X4
M1.2x1.5mm Screws X2

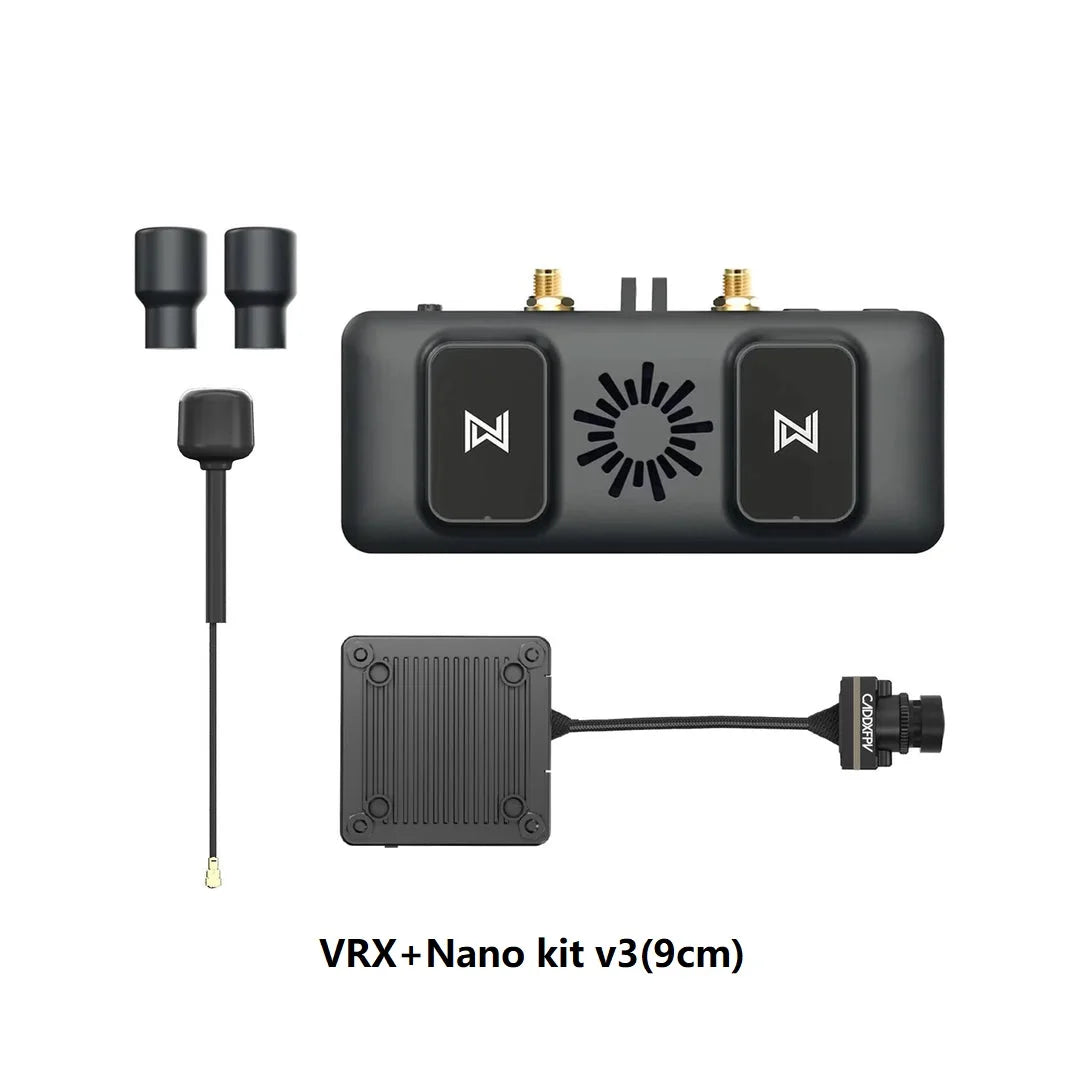

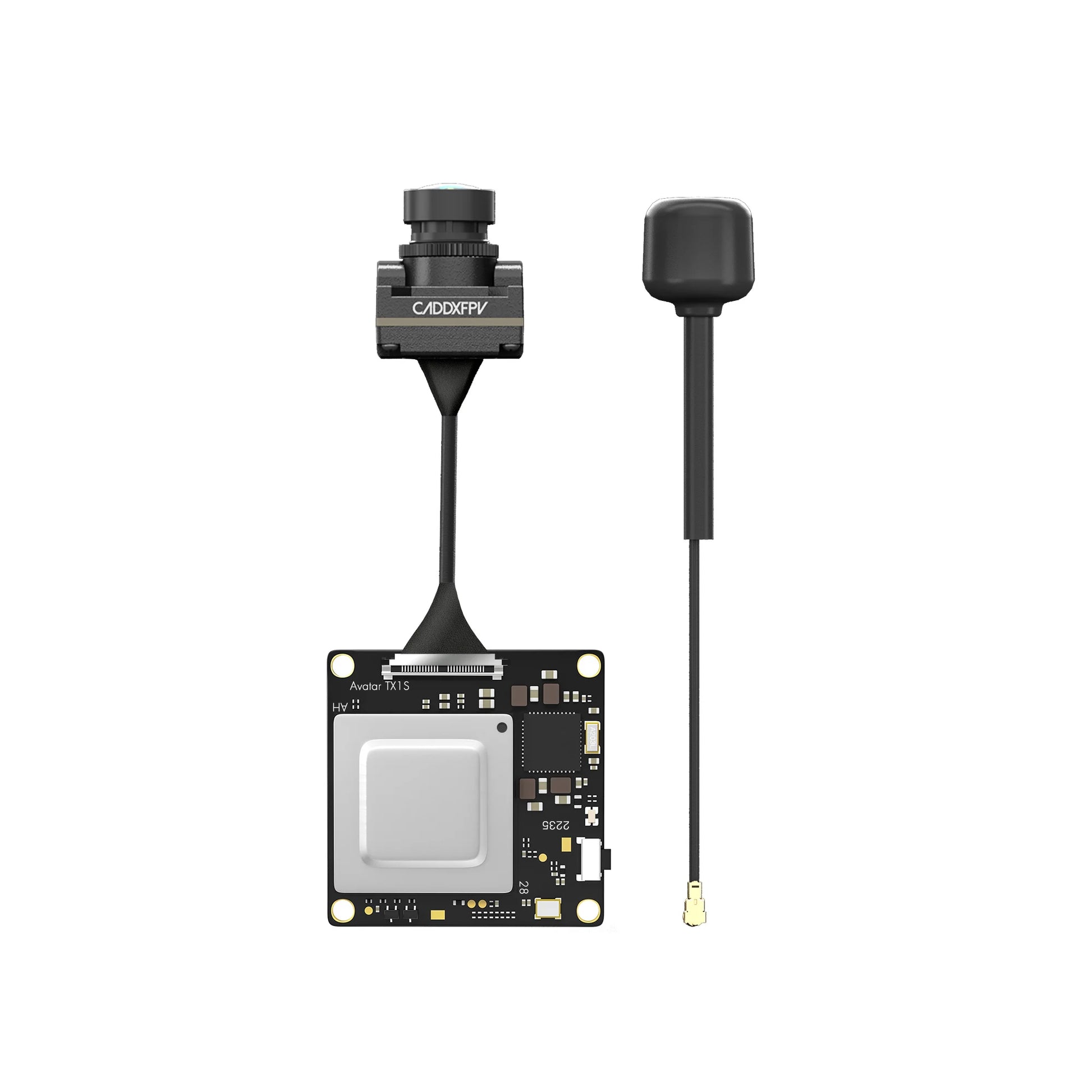

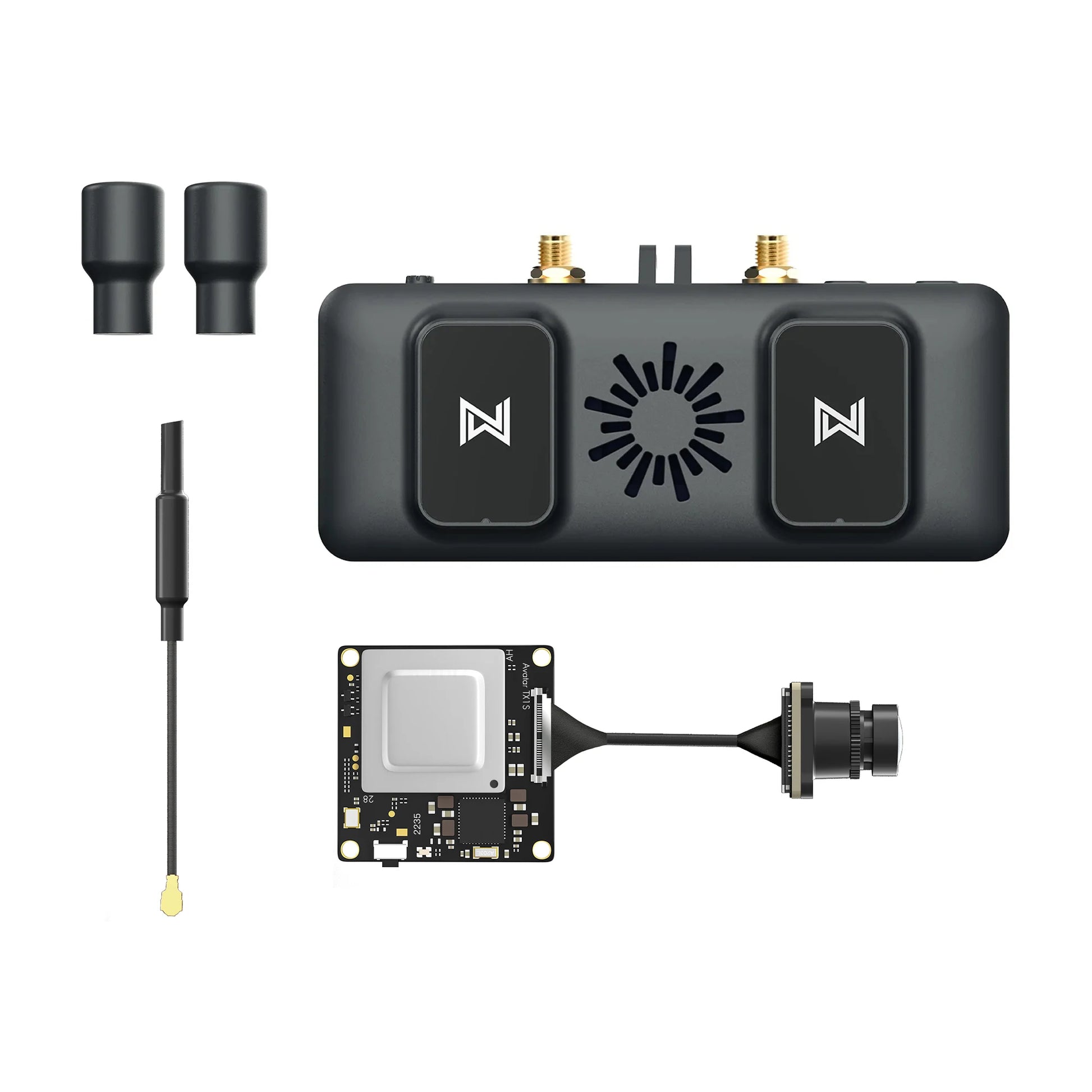

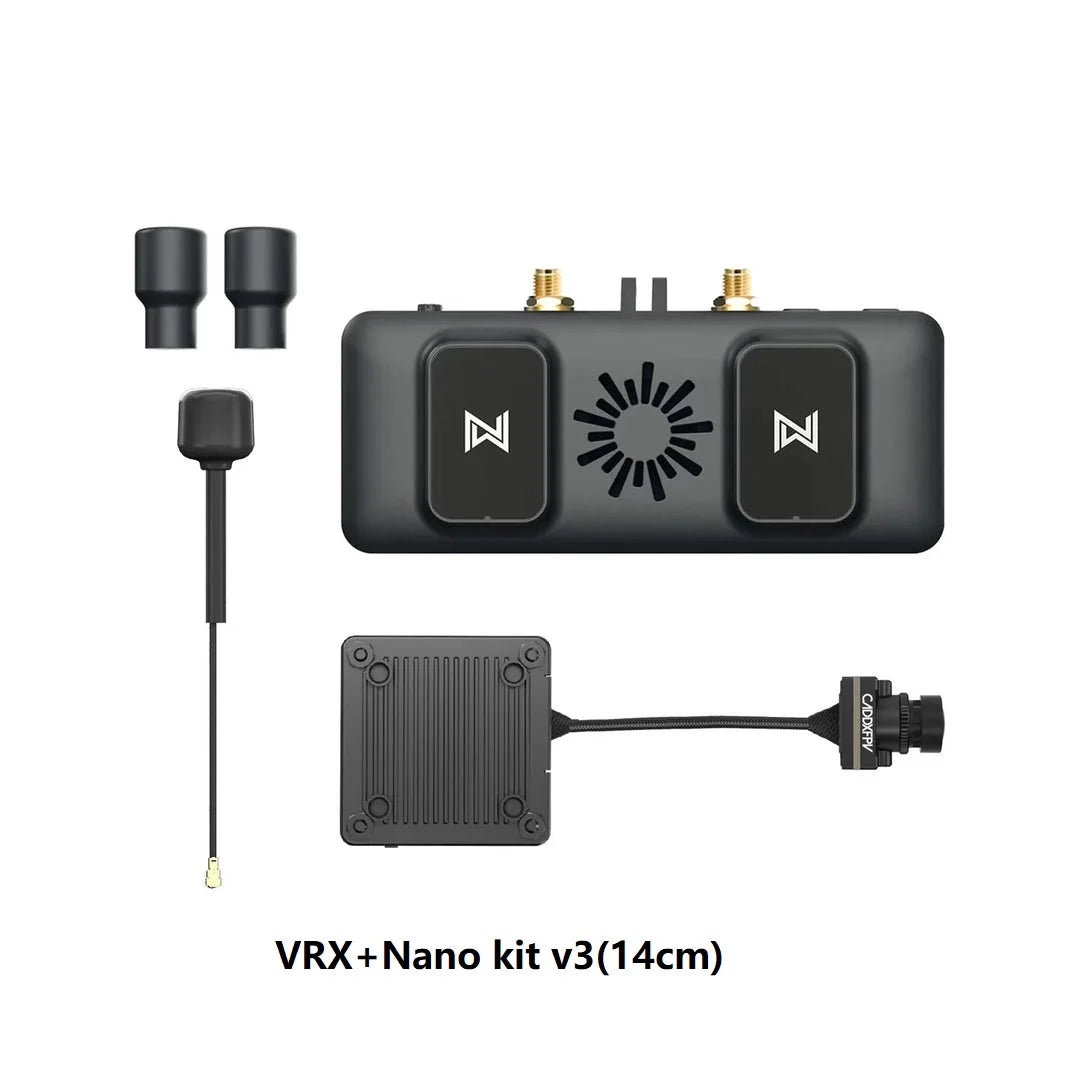

Avatar HD Nano KIT X1
4 Pin USB Cable X1
6 Pin Power Cable X1
M2x3/4/5mm Screws X2
M1.2x1.5mm Screws X2
14-19mm Bracket X1

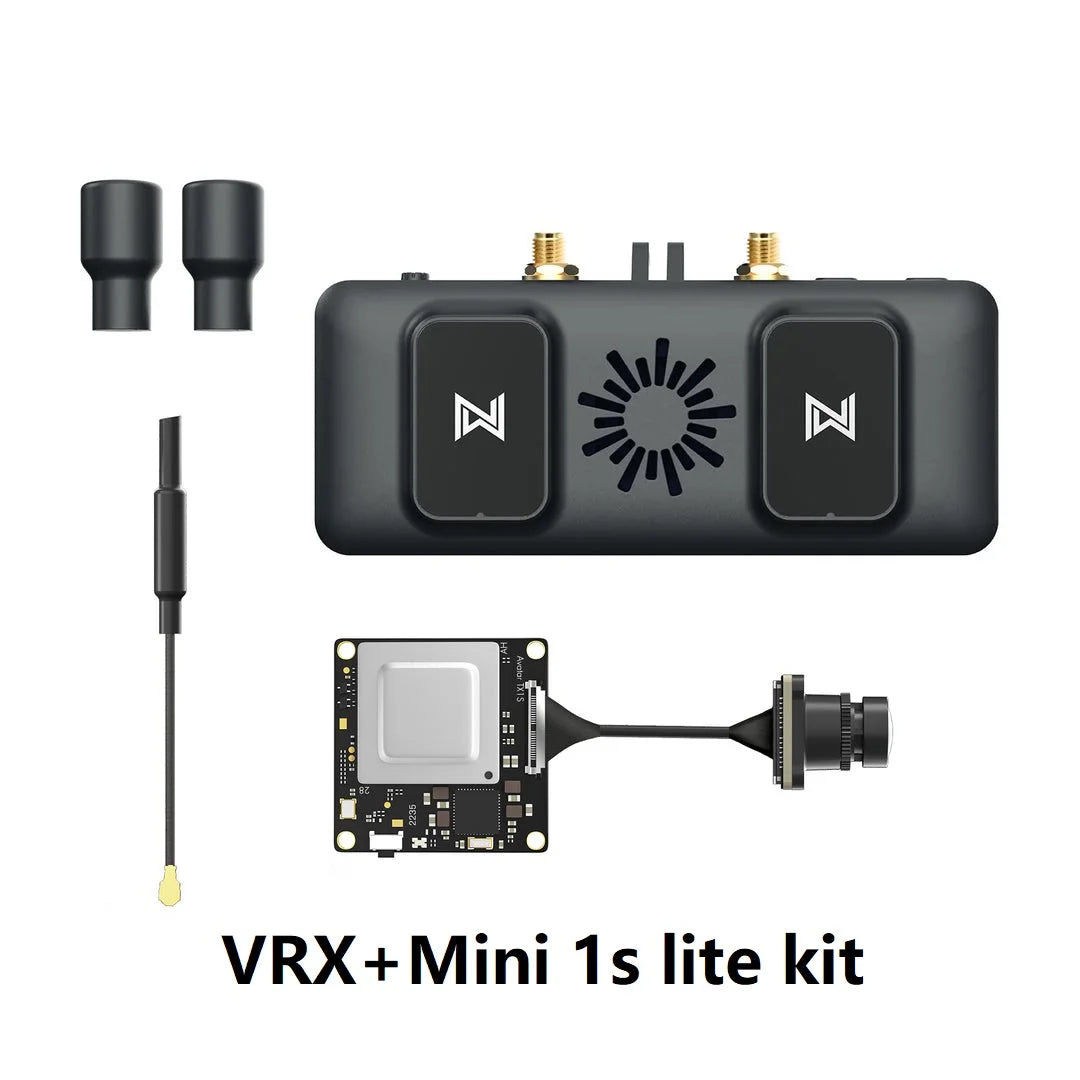

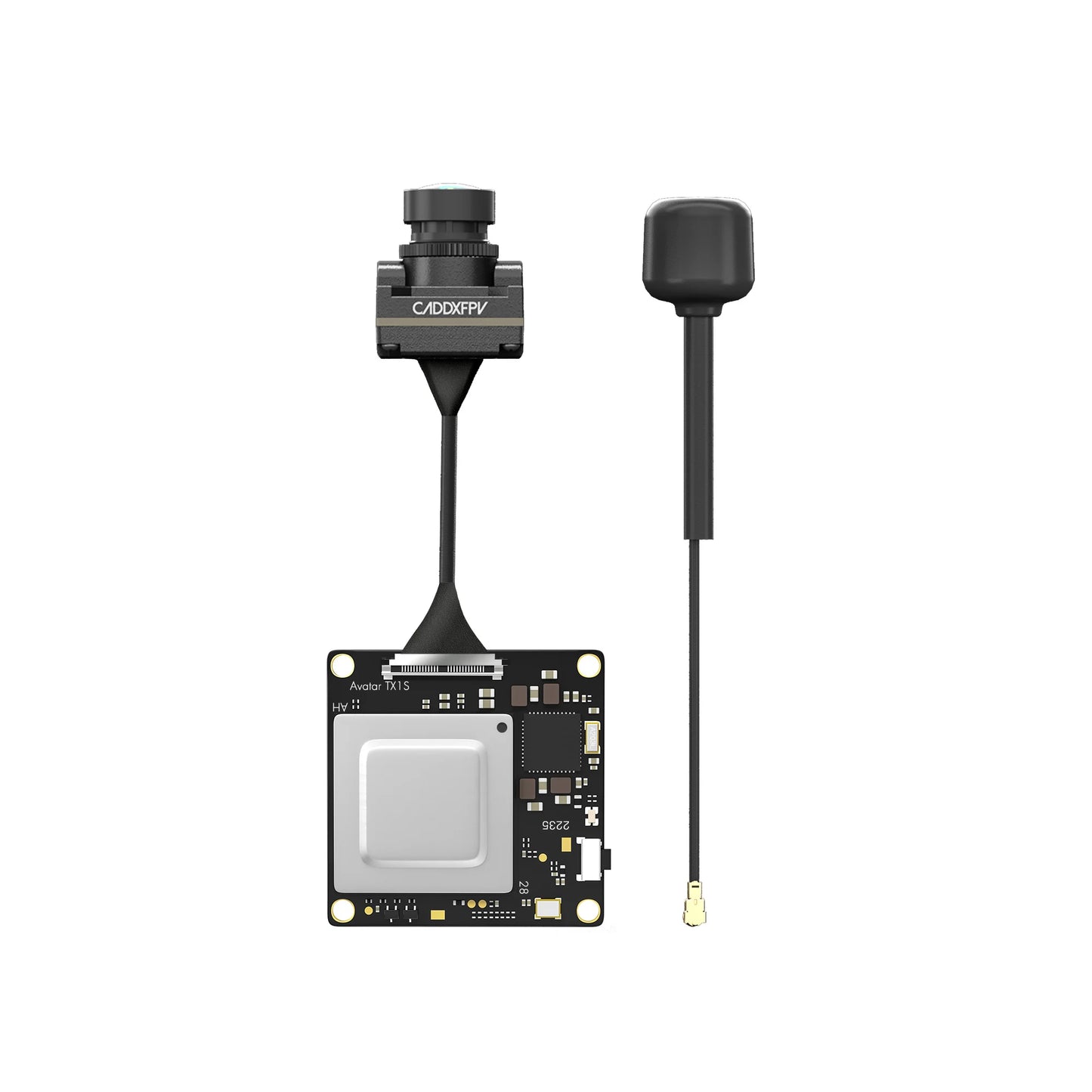

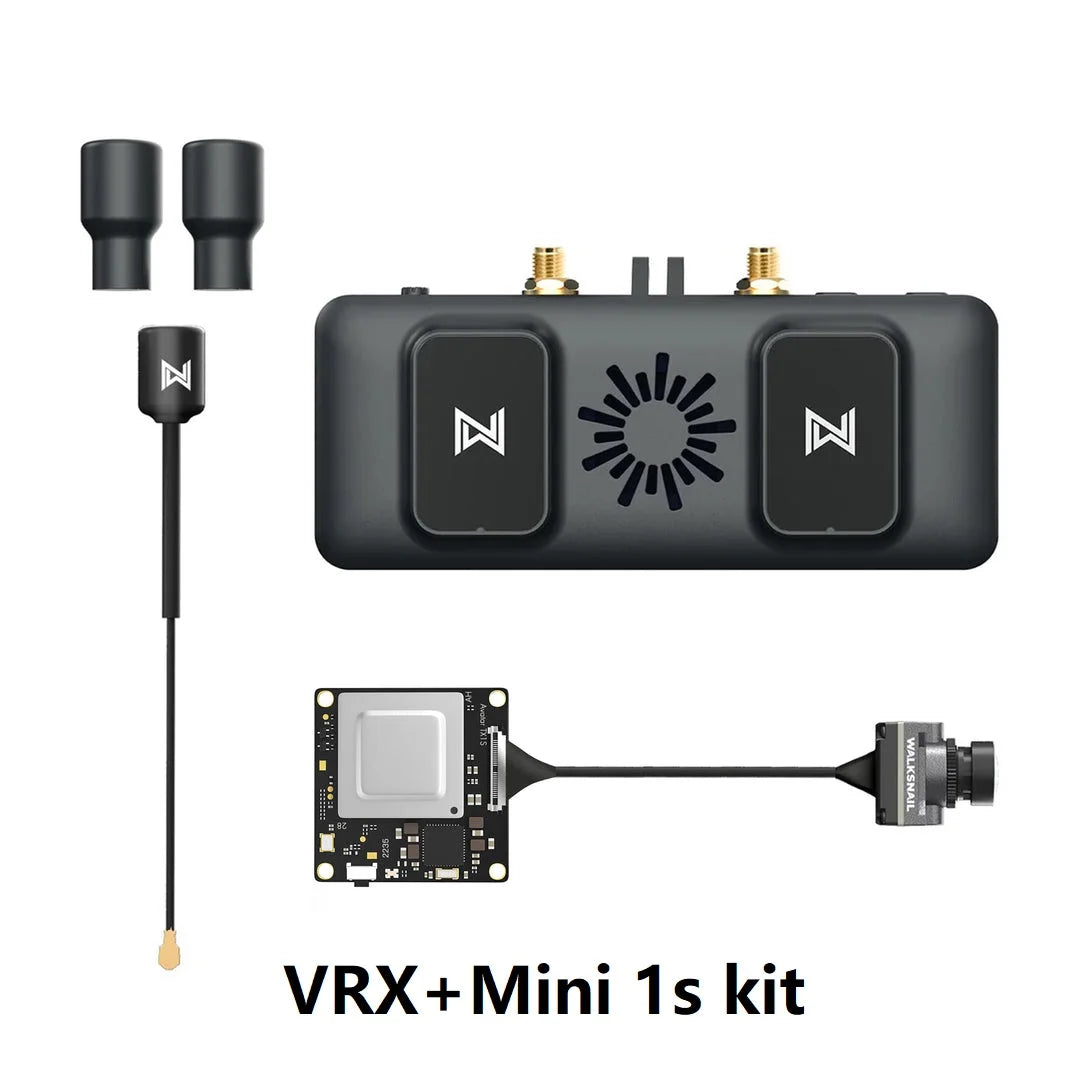

Avatar Mini 1S KIT X1
4 Pin USB Cable X1
6 Pin Power Cable X1
M2x3/4mm Screws X2
M2x16mm Screws X4
M2 Screw nut X4
2.1x3.4x1mm Gasket X5
