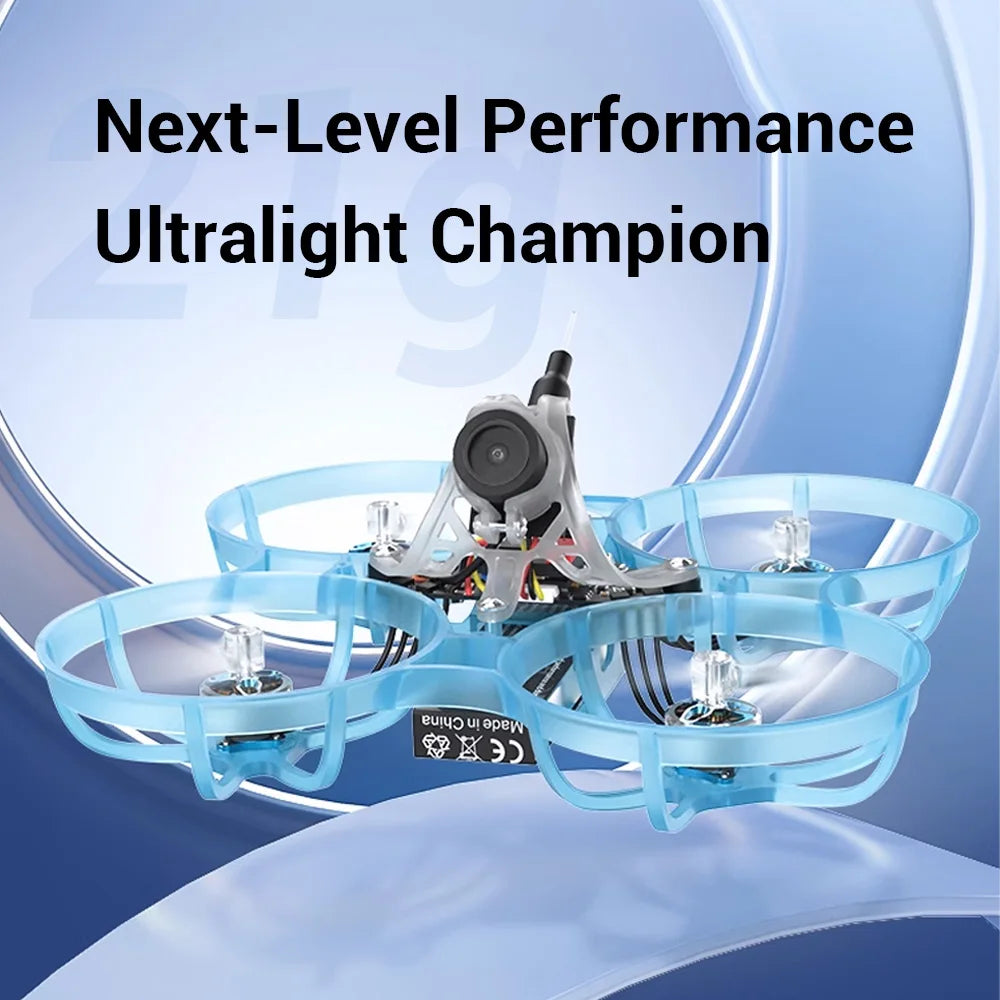

BETAFPV Air75 ELRS 2.4G Brushless Whoop Quadcopter
BETAFPV Air75 ELRS 2.4G Brushless Whoop Quadcopter
Tilgængelighed for afhentning kunne ikke indlæses
Specification
-
Item: Air75 Brushless Whoop Quadcopter
-
Weight: 21g
-
Wheelbase: 75mm
-
Frame:Air75
-
Canopy:Air Canopy
-

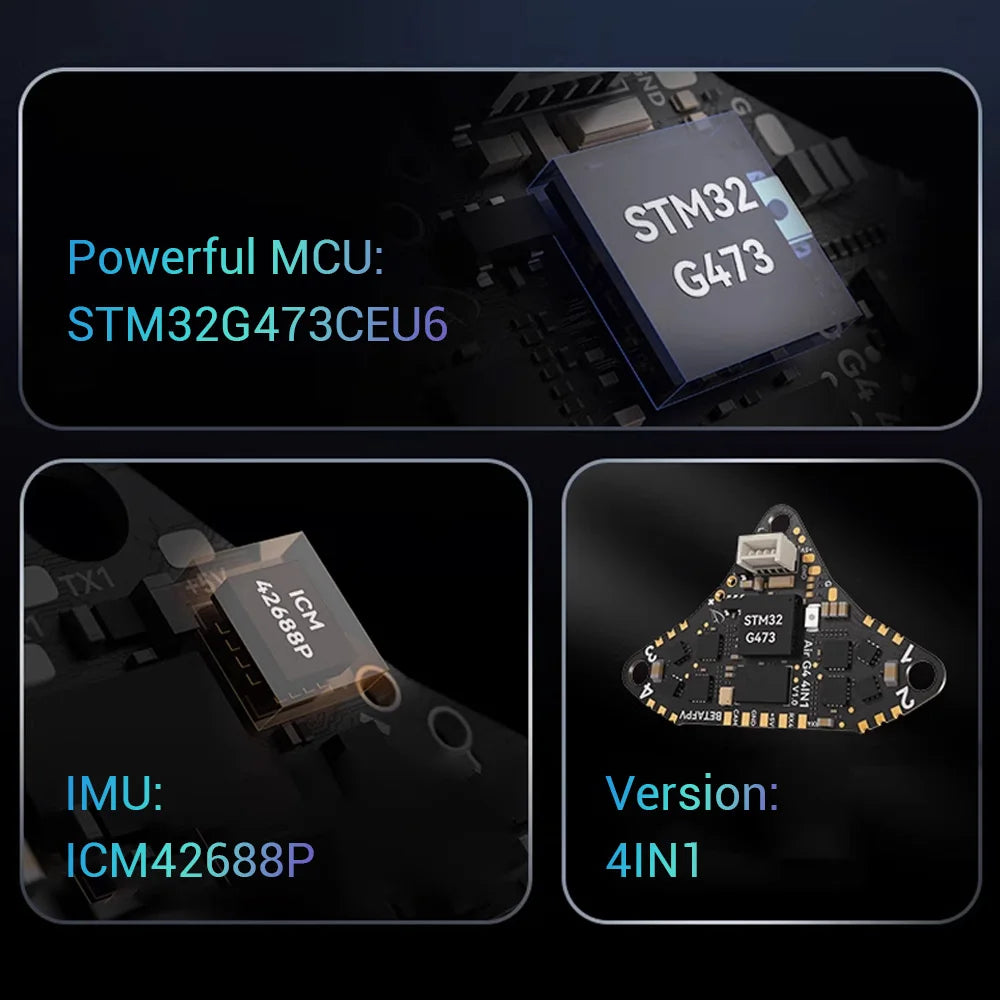

FC & ESC:Air Brushless Flight Controller(4IN1 Version)
-
VTX: Onboard 5.8G 25mw~400mw VTX
-
Camera: C03 Camera
-
Motor:0802SE | 23000KV
-
Props: Gemfan 40mm 2-Blade
-
Battery Connector:BT2.0 U Cable Pigtail
-
Recommend Battery:LAVA 1S 450mAh 75C
-
Flight Time(4.35v-3.3v): 6.5min
-
RX Version: External ELRS 2.4G Lite / TBS
Comparison Air75 & Meteor75
|
|
Air75 |
Meteor75 |
|
Weight |
21.0g |
24.9g |
|
Wheelbase |
75mm |
75mm |
|
Frame |
Air75 |
Meteor75 Micro Frame |
|
Canopy |
Air Canopy |
Canopy for Micro Camera 2022 |
|
FC & ESC |
Air Brushless Flight Controller(4NI1 Version) |
F4 1S 5A FC (Serial ELRS 2.4G) |
|
VTX |
Onboard 5.8G 25mw~400mw VTX |
M03 VTX |
|
Camera |
C03 Camera |
C03 Camera |
|
Motor |
0802SE | 23000KV |
0802SE | 19500KV |
|
Props |
Gemfan 40mm 2-Blade |
Gemfan 40mm 2-Blade |
|
Battery Connector |
BT2.0 U Cable Pigtail |
BT2.0 |
|
Recommend Battery |
LAVA 1S 450mAh 75C |
BT2.0 450mAh 30C |
|
Flight Time |
6.5min |
4.5min(Freestyle) / 6min |
|
RX Version |
External ELRS 2.4G Lite / TBS |
ELRS/Frsky/TBS |
Recommended Parts:
-
Radio Transmitter: LiteRadio 3 Pro, LiteRadio 3, LiteRadio 2 SE
-
Goggles: VR03 FPV Goggles, VR02 FPV Goggles
-
FC:Air Brushless Flight Controller(4IN1)
-
Receiver: ELRS Lite Receiver, ELRS Nano Receiver
-
Battery:LAVA 1S 450mAh 75C Battery
-
Props:Gemfan 40mm 2-Blade Props
-

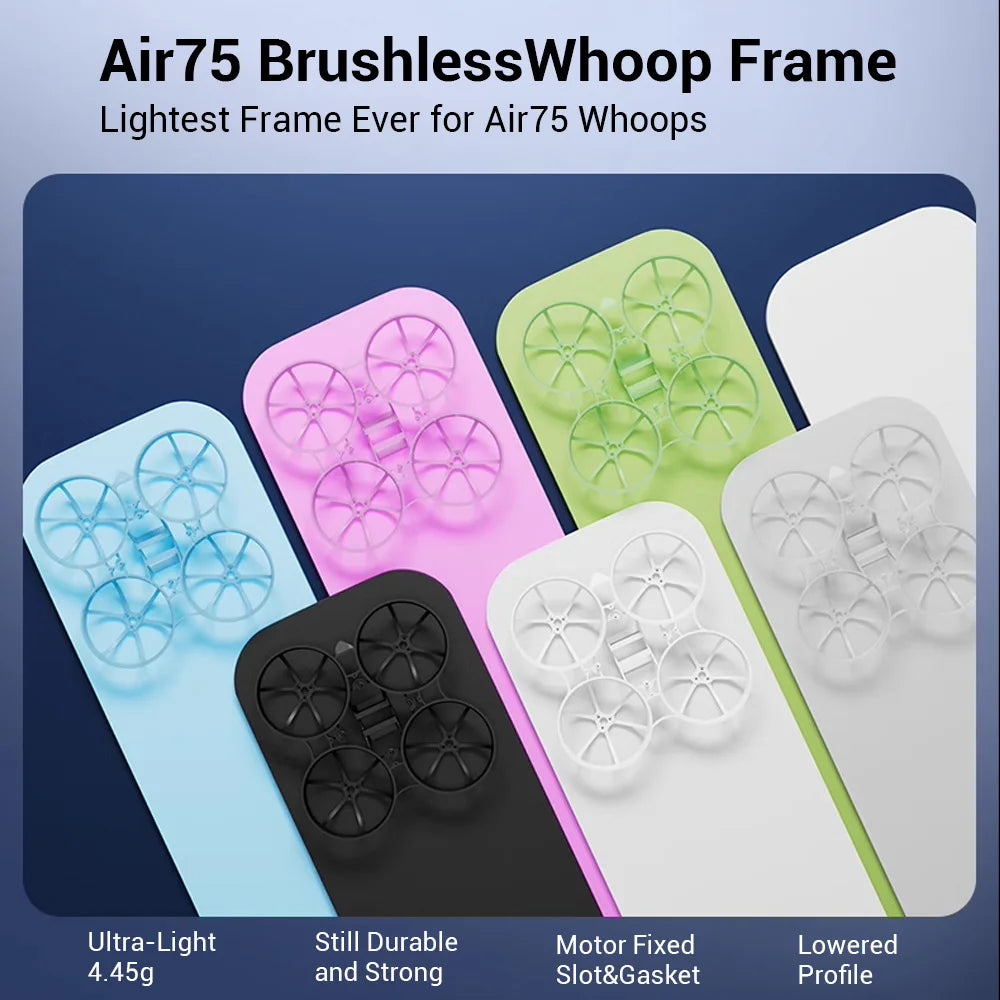

Colorful Frame:Air75 Brushless Whoop Frame
-
Colorful Canopy:Air Canopy
-
Screws: Meteor Series Motor Fixing Screws Pack (40PCS)
-
Sticker: BETAFPV Waterslide Decals
Package
-
1 * Air75 Brushless Whoop Quadcopter
-
1 * Air Canopy
-
4 * Gemfan 40mm 2-Blade Propellers
-
1 * Pack of Screws
-
1 * 4Pin Adapter Cable
-
1 * USB Type-C Adapter Board
