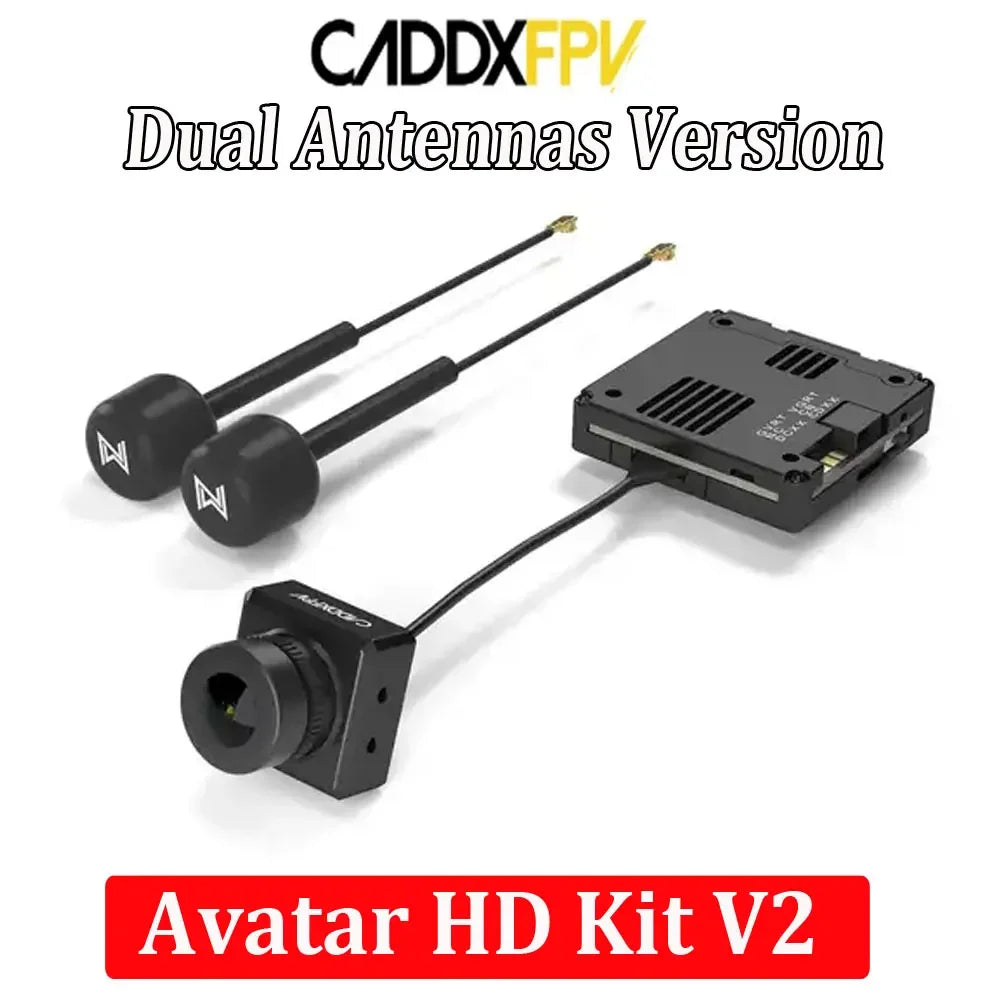

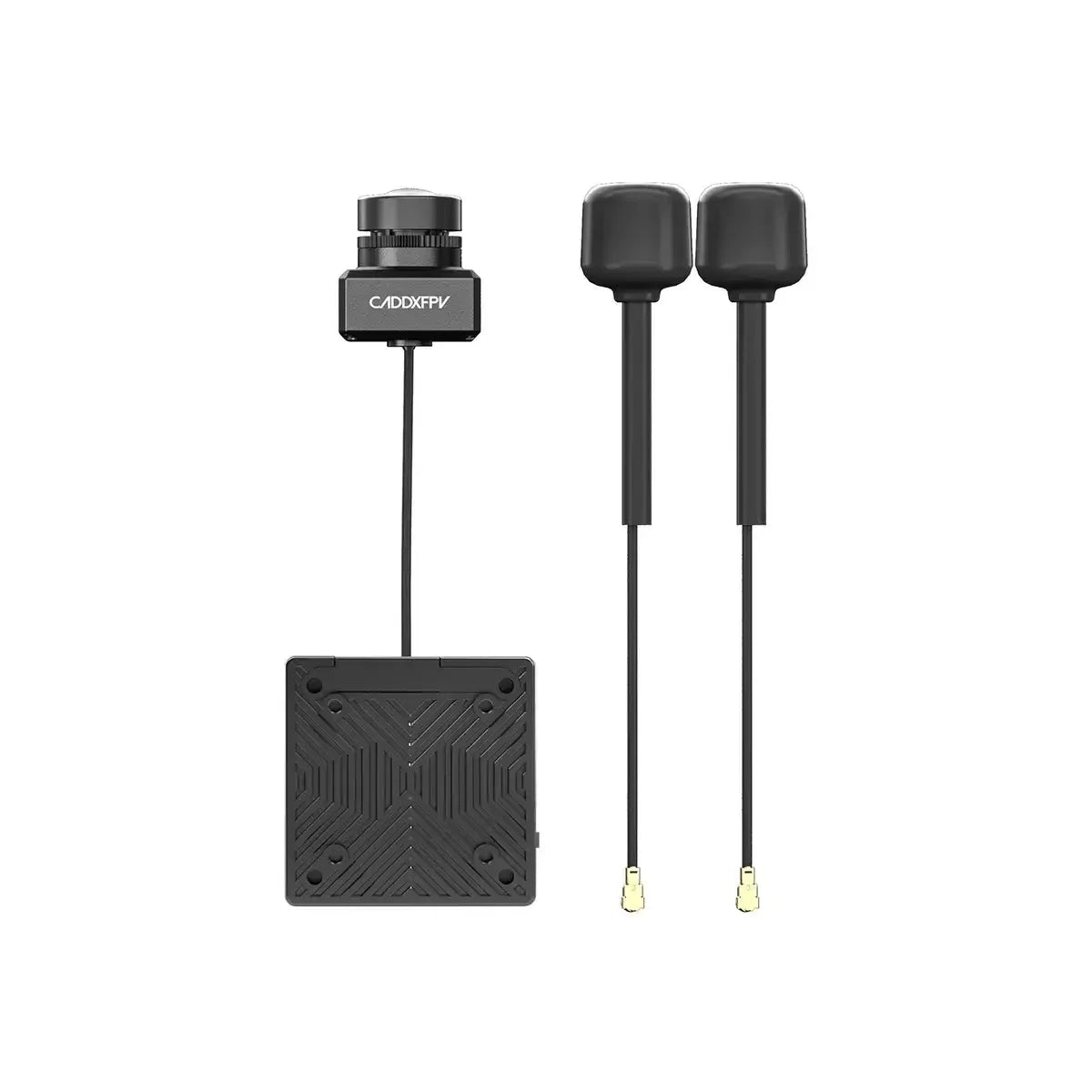

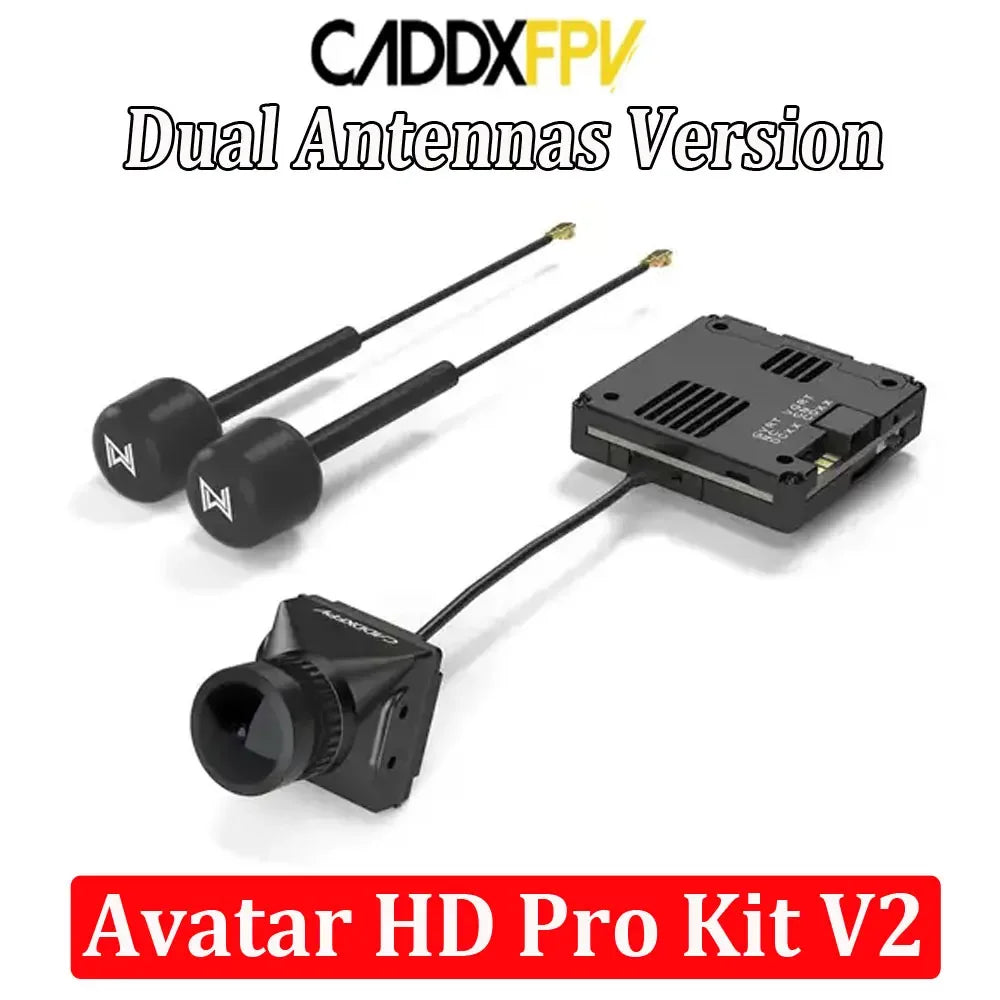

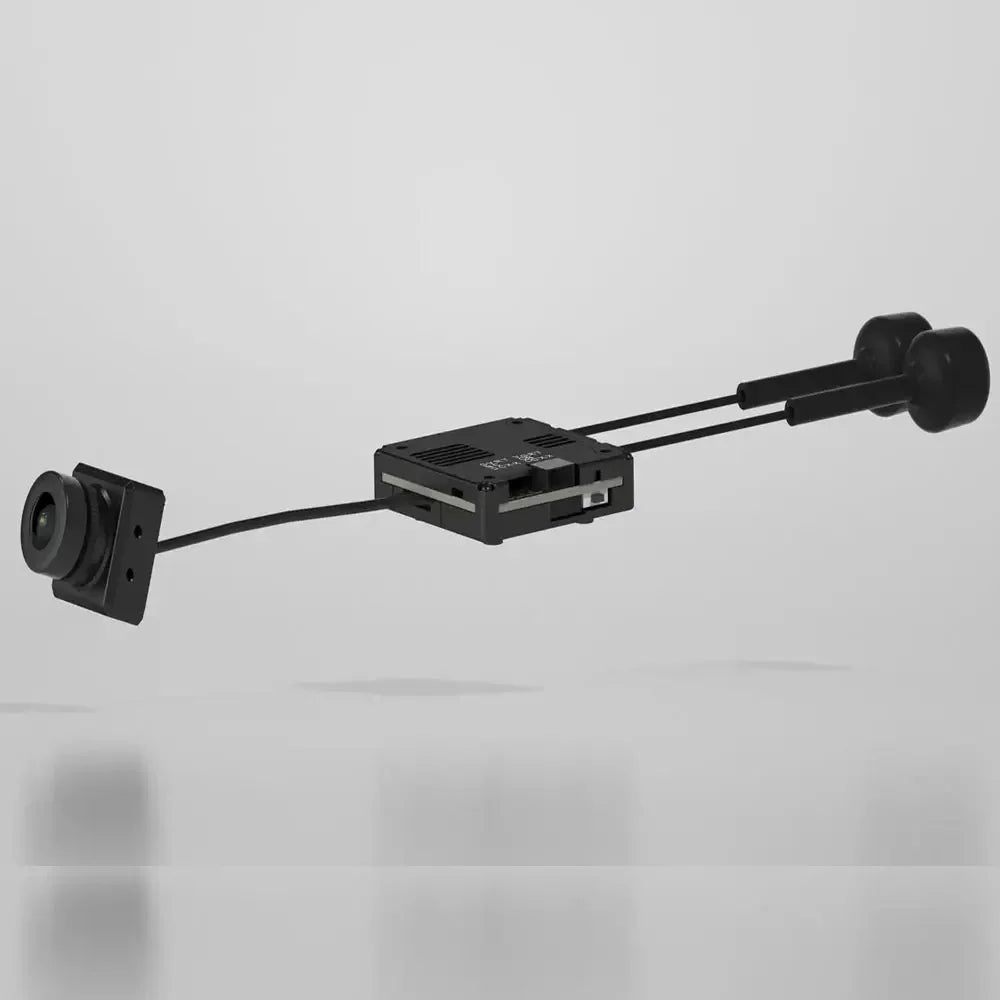

Caddx Walksnail Avatar HD Kit V2 / Avatar HD Pro Kit

Camera

Model

Avatar HD Pro Camera

Image Sensor

1/1.8-Inch Sony Starvis Ⅱ Sensor

Resolution

1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility;

Ratio

16/9; 4/3

Lens

8Mp

FOV

160°

Aperture

F1.6

Shutter

Rolling shutter

Min.Illumination

0.00001Lux

Weight

9.5g

Dimensions

19*19*24mm

Coaxial Cable

140mm

Camera

Model

Avatar V2 camera

Image Sensor

1/3.2-Inch 4Mp 4:3sensor

Resolution

1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility;

Ratio

4:3 native /16:9

Lens

2.1mm

FOV

160°

Aperture

F2.0

Shutter

Rolling shutter

Min.Illumination

0.001Lux

Weight

7.2g

Dimensions

19*19*22mm

Coaxial Cable

140mm

Gyroflow

Only 32G VTX Supported

VTX

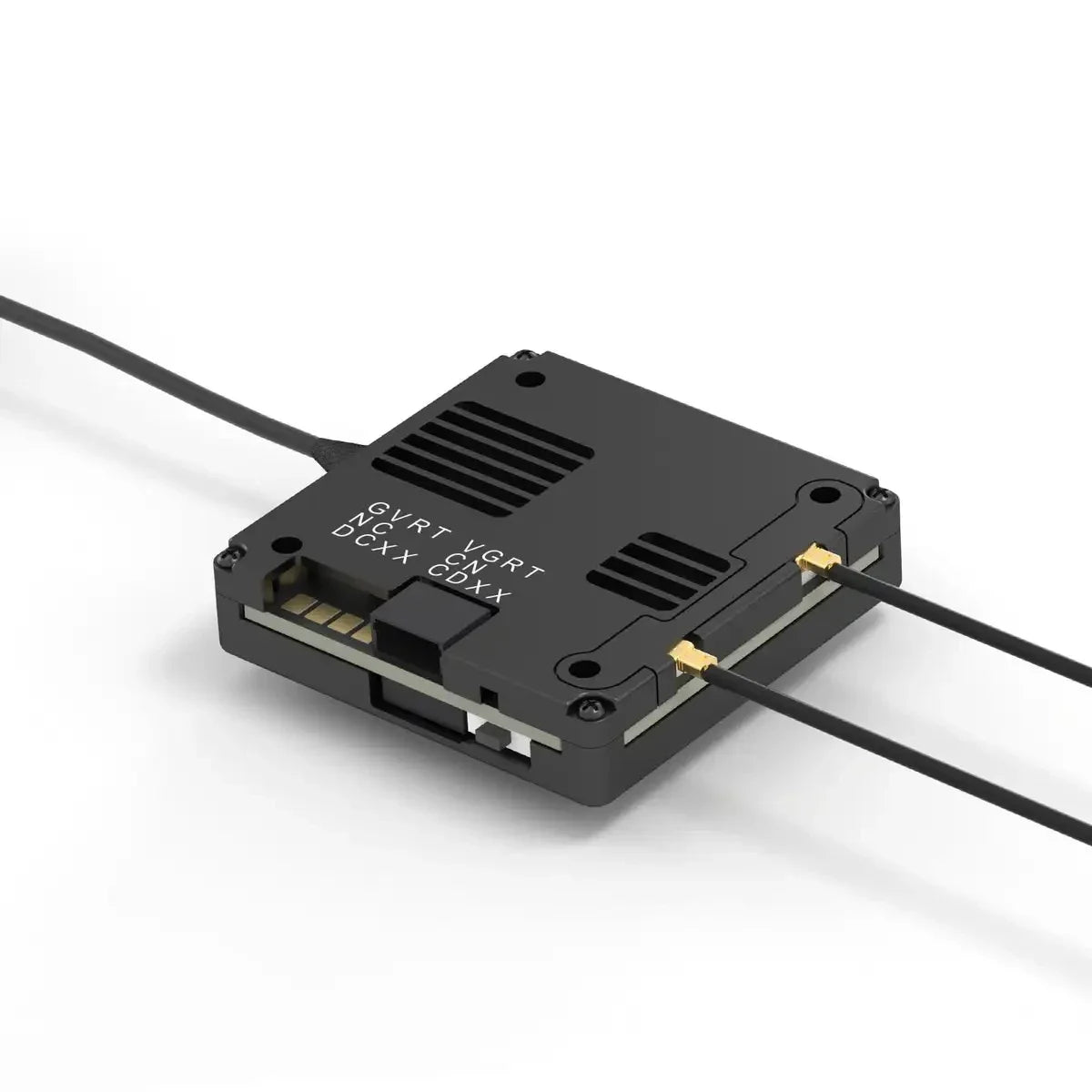

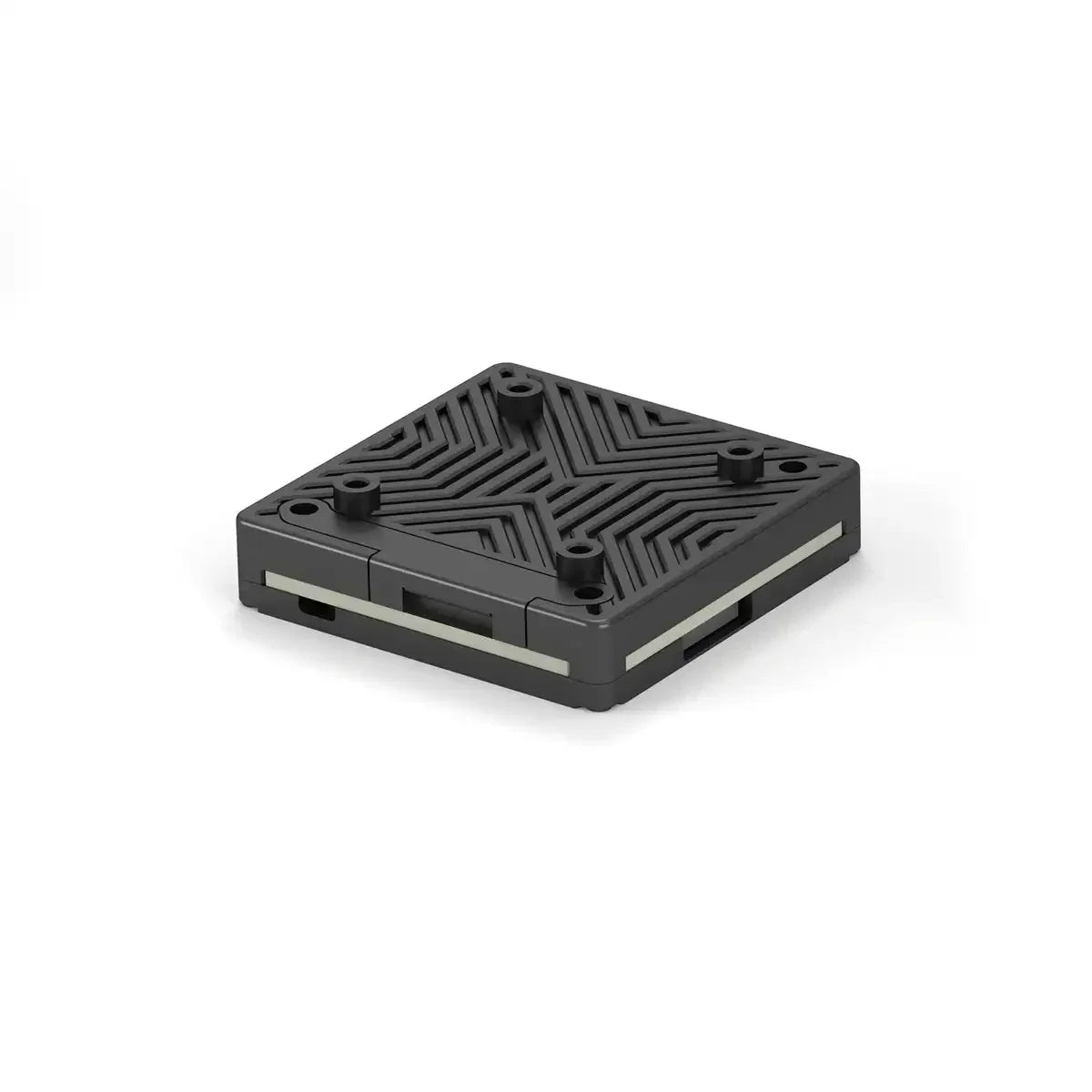

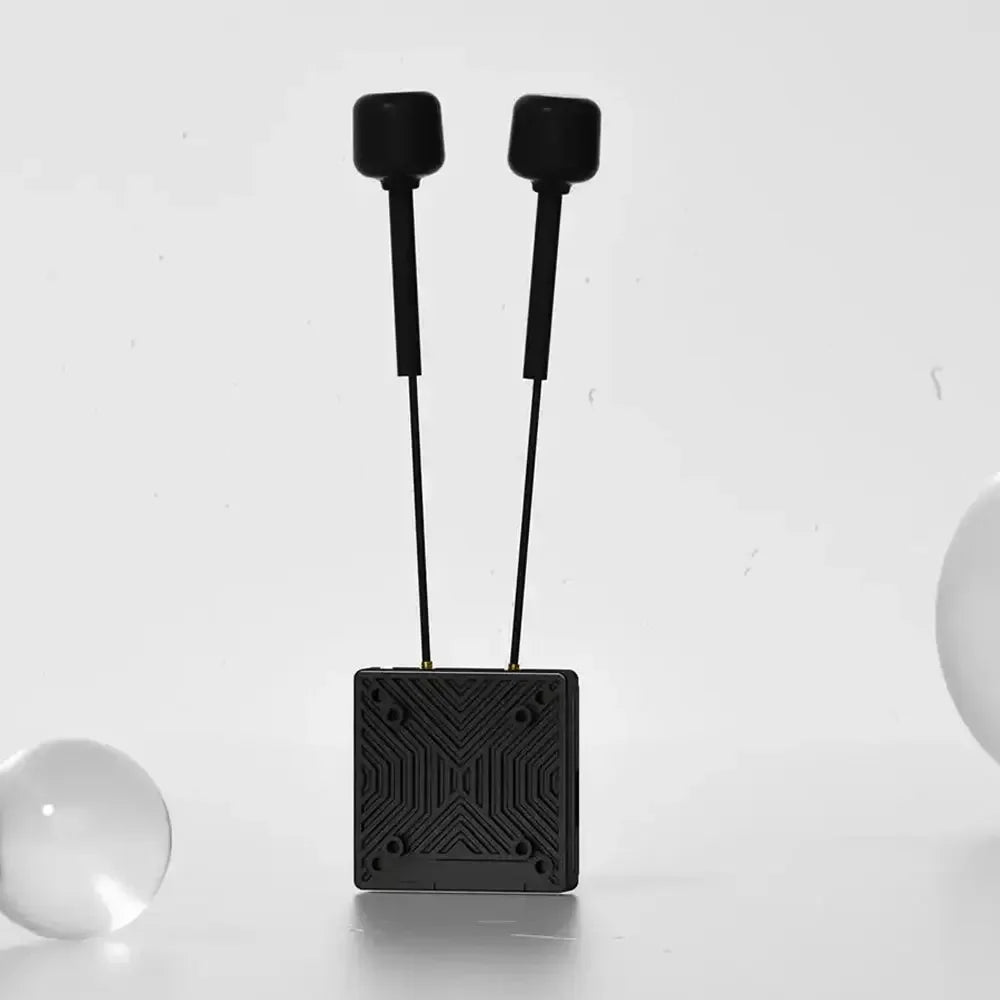

Model

Avatar V2 module(Dual Antenna)

Communication Frequency

5.725-5.850GHz

Transmitter Power (EIRP)

FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm

1/O Interface

JST1.0*4(Power in)JST0.8*6(USB)

Mounting Holes

25.5*25.5mm; 20*20mm

Dimensions

33.5*33.5*10.5mm

Storage

32G

Recording

1080p/720p

Weight

15.4g

Operating Temperature

-20-40℃

Channels

8

Wide Power Input

6V-25.2V

Supported FC System

Betaflight; Inav; Fettec; ArduPilot; Kiss

OSD

Canvas mode

Latency

Average delay 22ms

Antenna

2(IPEX)

Avatar V2 antenna

Polarization

LHCP

Bandwidth

5600MHz-6000MHz

Gain

1.9dBi

VSWR

≤1.5

Input Impedance

50Ω

Interface

IPEX-1

Size

R15 X 45mm (without cable)

Weight

2g
